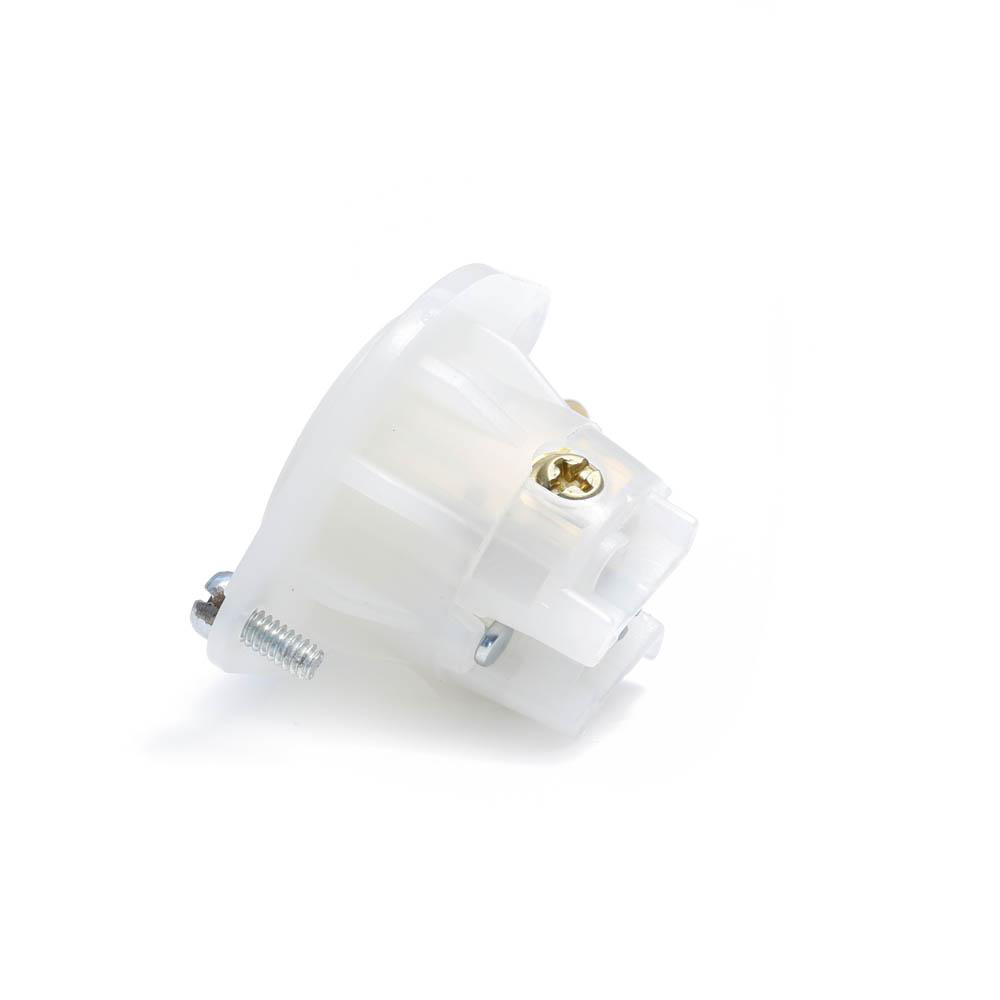

Receptacle locking flanged outlet 2P 3W 125V 15AMP white

Manufacturer: Leviton Manufacturing | Catalog # ML2-PER | Electrozad South Part # 76668
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Flanged receptacle are built to endure hard use with rugged nylon flanges that assure a smooth, flush fit and outstanding resistance to cracking and breaking. Offers a smaller form factor for limited-space applications.

Technical Information

Amperage
15 A
Applications
Industrial
Body Material
Impact Modified Nylon
Contact Material
Brass
Device Type
Locking Flanged Outlet
Dielectric
2000 V
Face Material
Nylon
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Material
Nylon

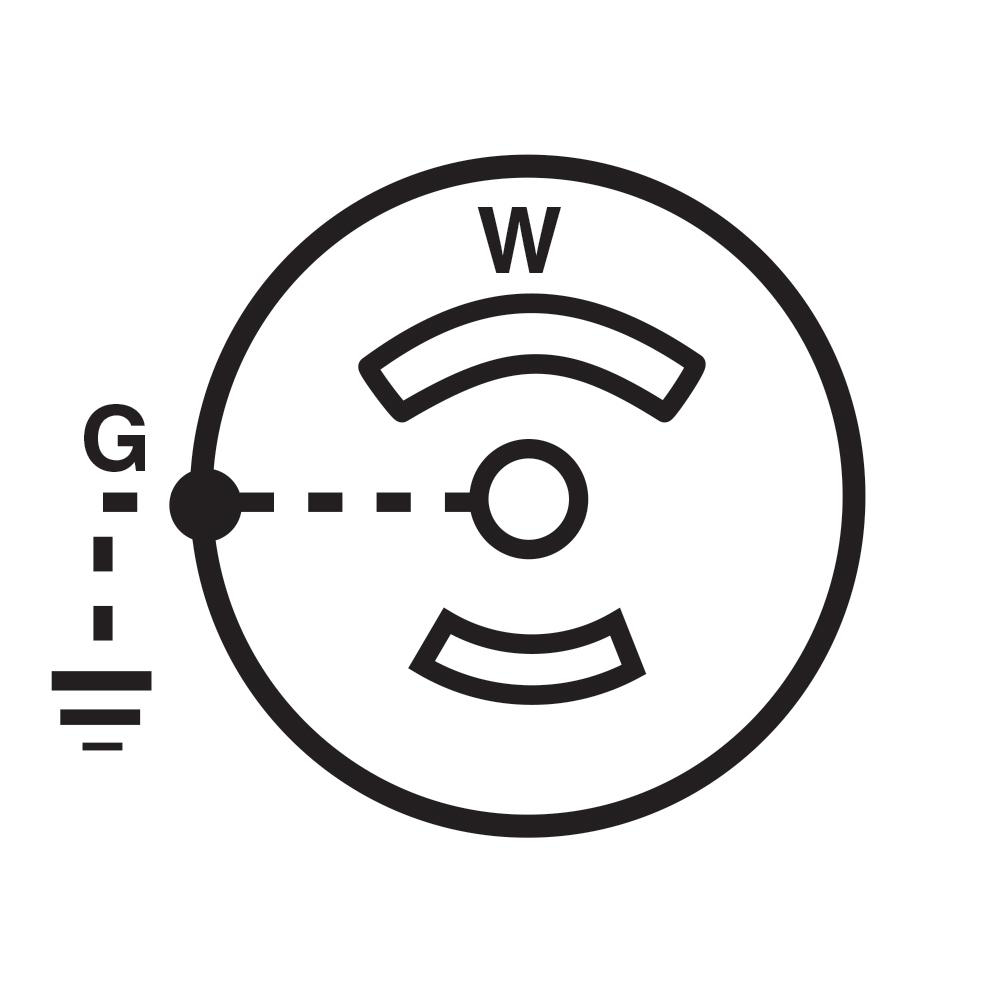

NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
1.625 H x 1.765 W x 1.203 D IN
Standard
ANSI C-73
Temperature Rise
200 %
Terminal Size
18-14 AWG
Termination Type
Back Wire
Torque
10 lb-in
Type
Locking
Voltage
125 V
Wire Count
3
Wire Size
18 - 14 AWG 0.218 - 0.43 in

Manufacturer Information

Brand
Leviton

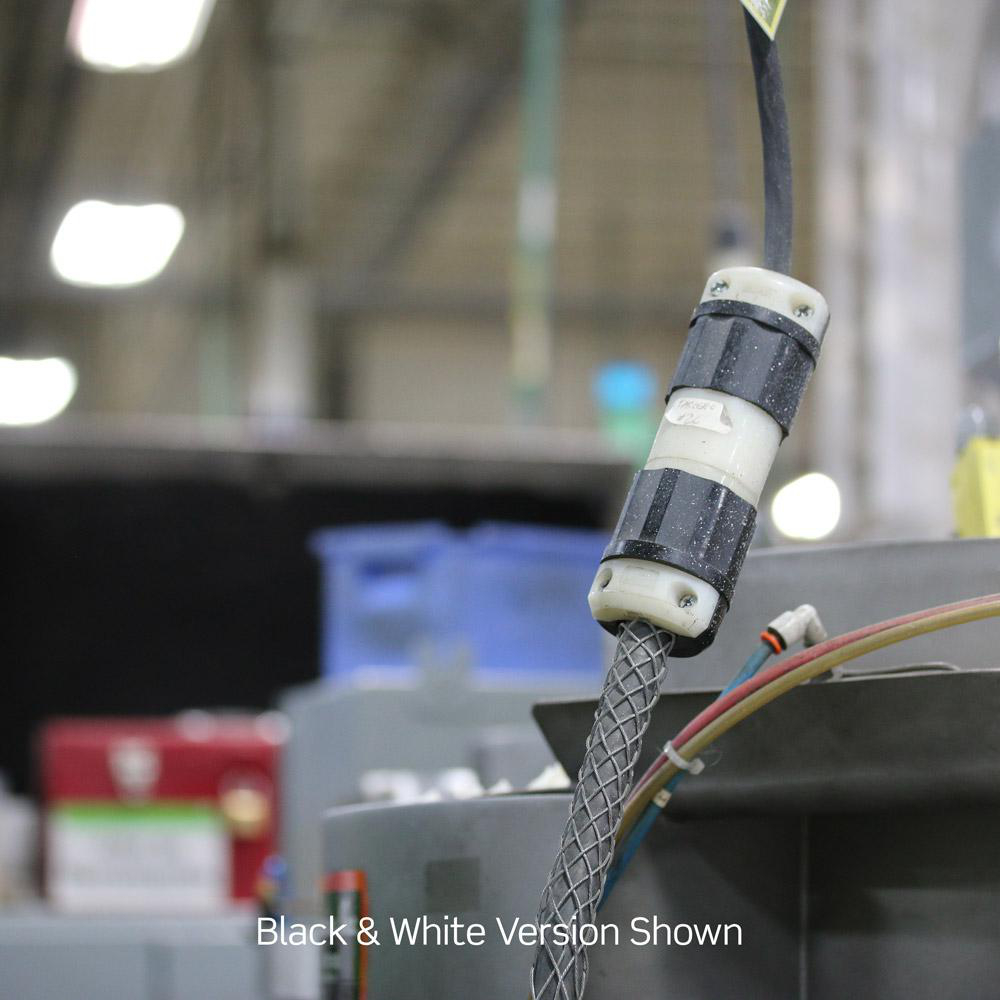

Sub Brand
Black & White

General Product Info

12-Digit UPC
078477987322
Color
White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477987322

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
