Fuse A6K-R - Class RK1 - Fast-Acting 600VAC 300VDC 70A Blade Amp-Trap® | Electrozad South

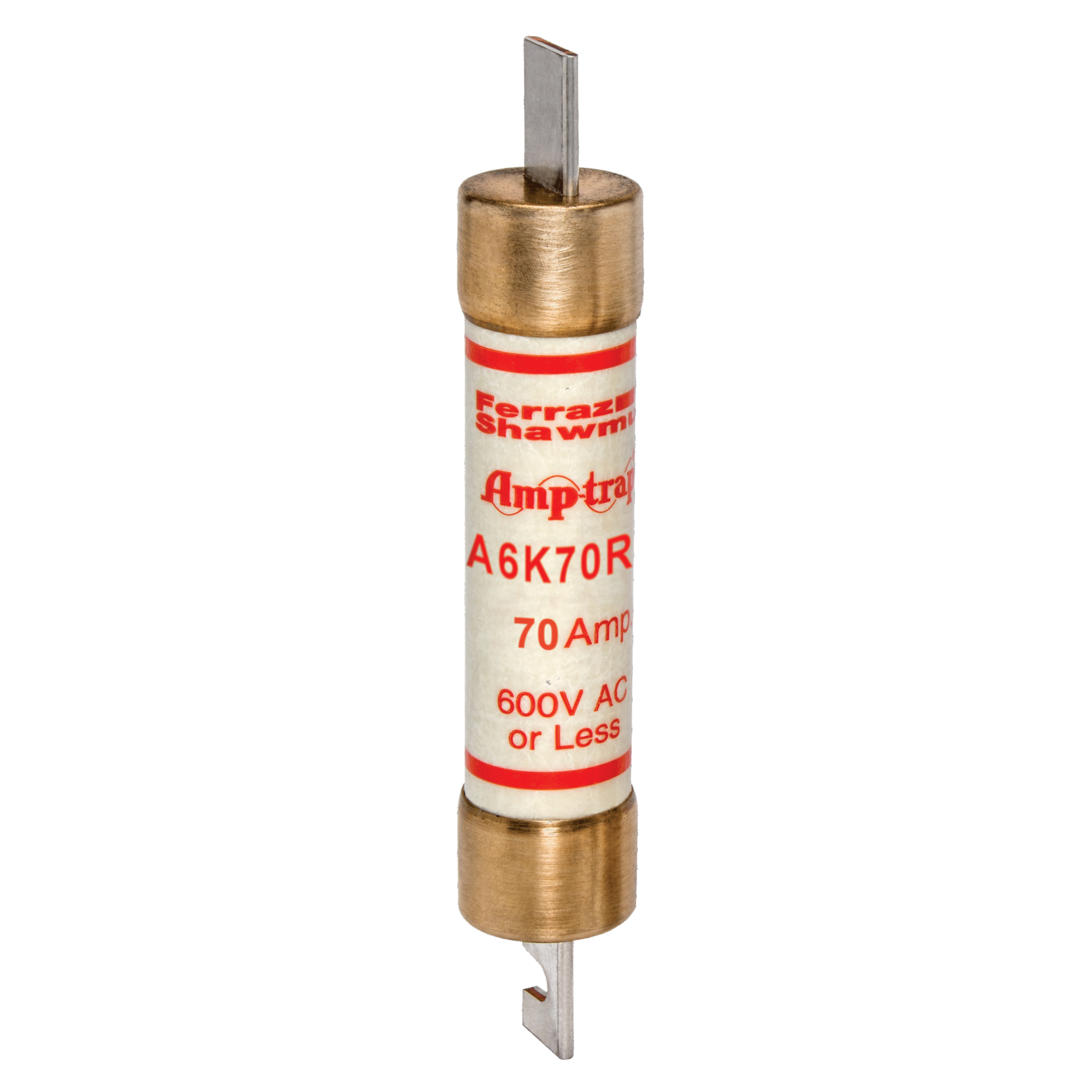

Product image for Fuse A6K-R - Class RK1 - Fast-Acting 600VAC 300VDC 70A Blade Amp-Trap®
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Fuse A6K-R - Class RK1 - Fast-Acting 600VAC 300VDC 70A Blade Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A6K70R | Electrozad South Part # 7615
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Current-limiting Amp-Trap A6K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Technical Information

Amperage
70 A
Applications
Load Centers Panelboards Switchboards Bus Duct Feeder Circuits Non-Inductive Loads Lighting Circuits
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class RK1
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001915704
Class
RK-1
GTIN
30782001915705
Weight
0.699 lb

Dimensions

Diameter
1.31 in
Length
7.88 in
