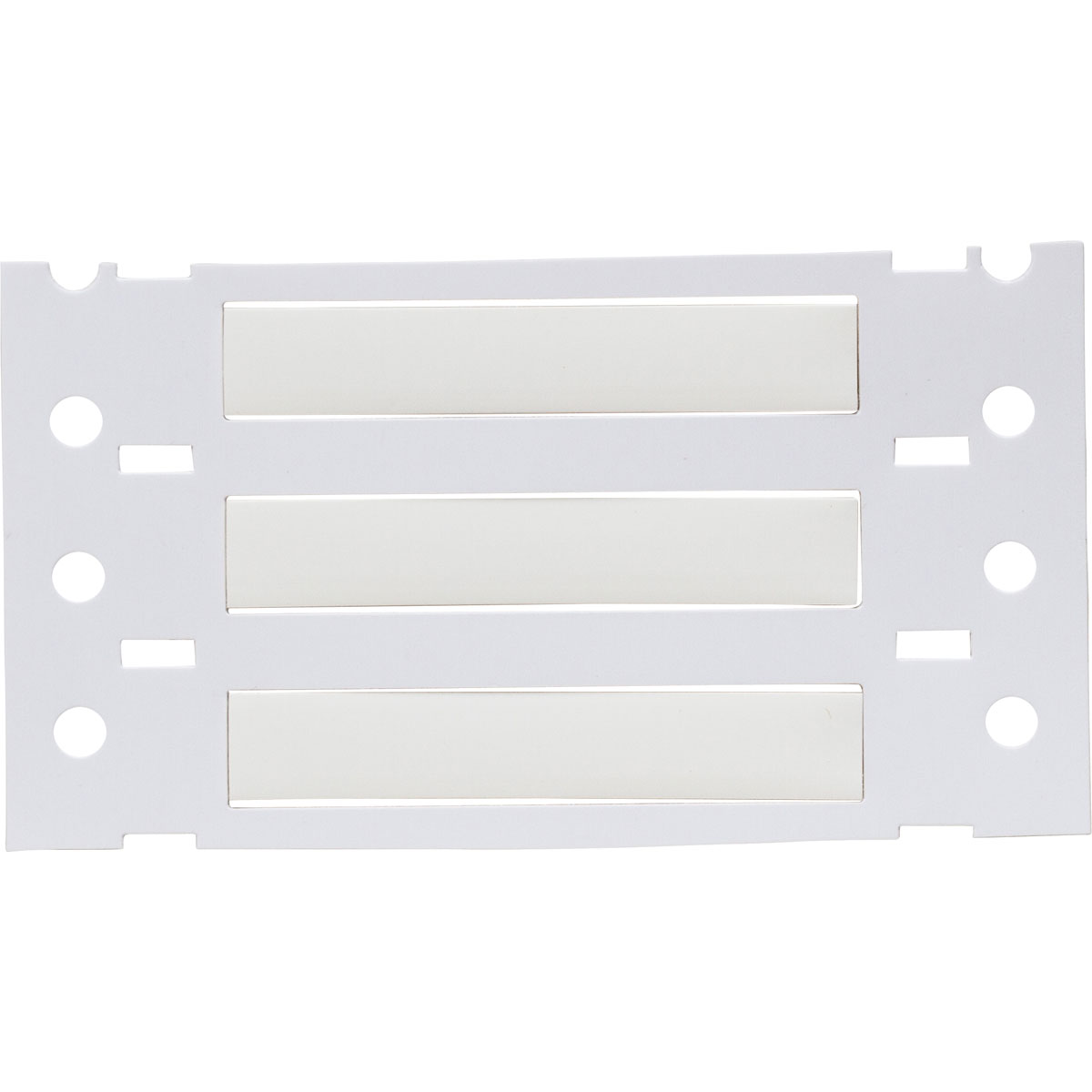

Sleeve wire marker white 2x0.335" 2500pk

Manufacturer: Brady | Catalog # 3PS-187-2-WT | Electrozad South Part # 75468
*Call For Price*
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
PermaSleeve® Wire marker sleeve. Made of B-342 polyolefin. Matte finish. Heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. Full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215 and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve and Datab® printers, as well as thermal transfer printers. Applicable for wire and cable marking, panel identification. 2500/package quantity/UOM. Available in white.

Technical Information

Applications
For Cable and Wire Marking
Cable Size
20-10 AWG
Material
B-342 Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Temperature Rating
-94 to 267 degrees F
Type
Self-Extinguishing, Double-Side Printable
Wire Size
0.062-0.15 in

Manufacturer Information

Brand
Brady
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820325116
Color
Matte White
Finish
Matte
GTIN
00662820325116
Used With
Brady IP® Series Thermal Transfer Label Printer, Bradyprinter™ PR Plus Series Thermal Transfer Label Printer, R2000, R4300, R4502S, R5000, R6600, R6700 Series Ribbon

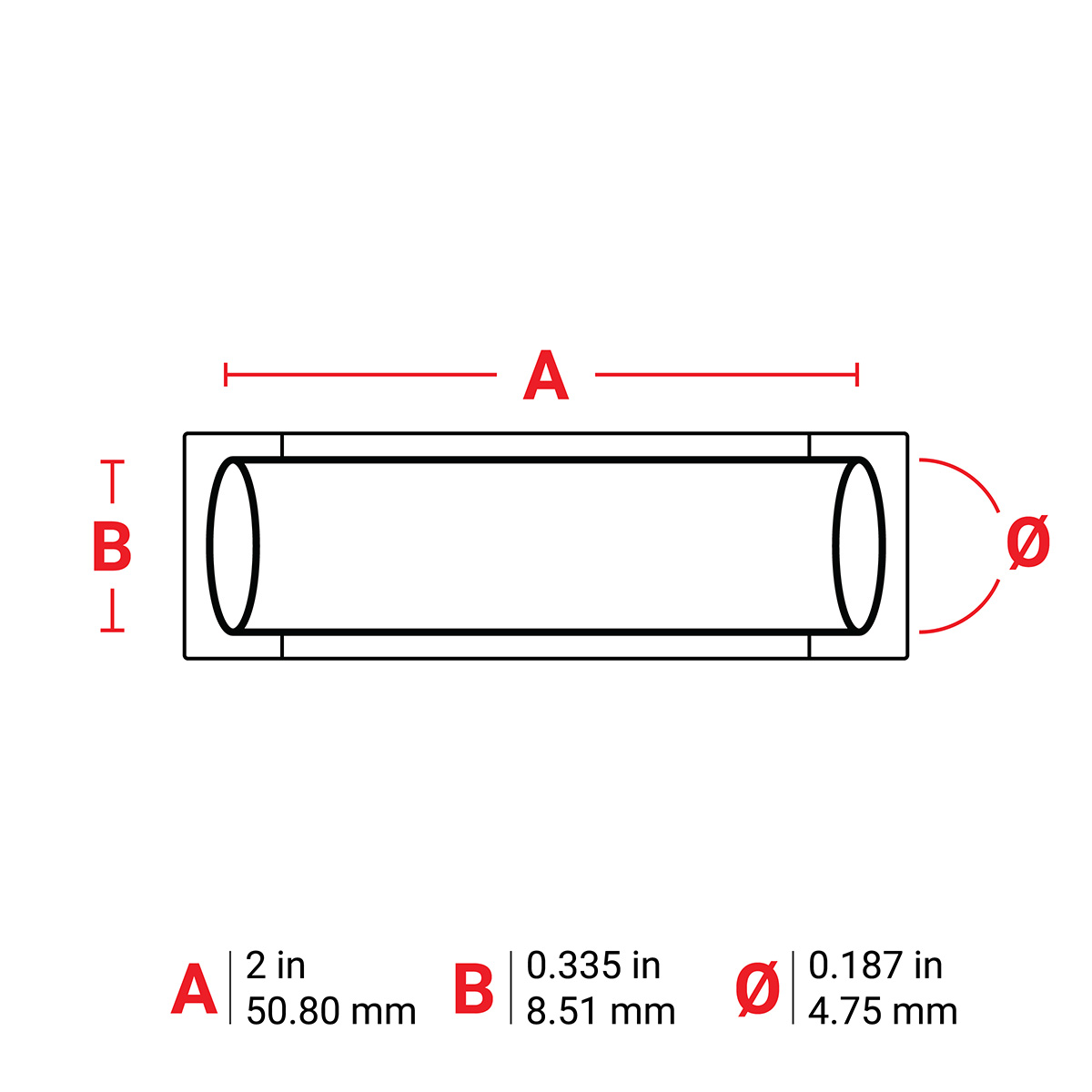

Dimensions

Diameter
0.187 in
Height
0.335 in
Length
0.335 in
Roll Width
2 in
Width
2 in
