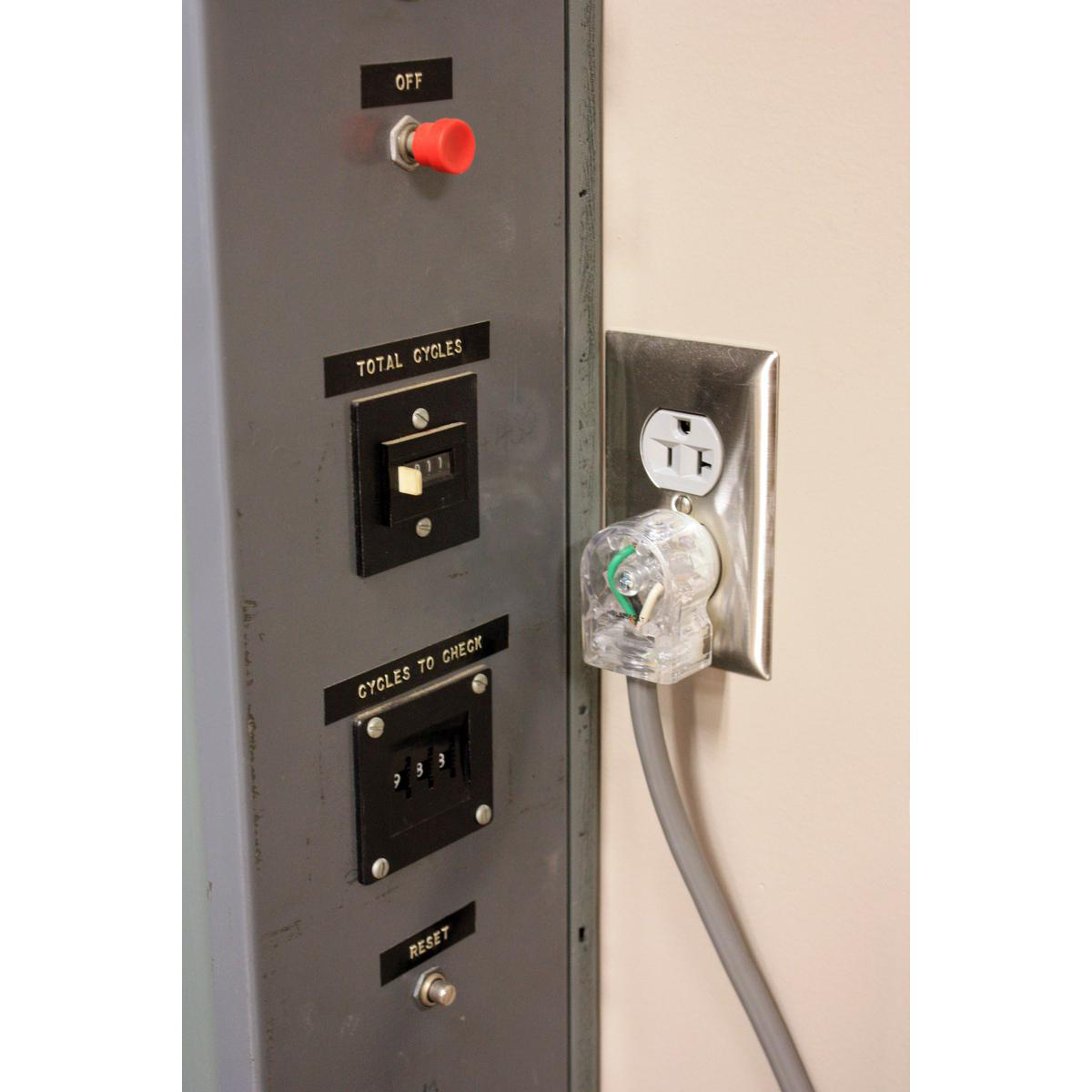

Image thumbnail 1
To:
CC:

Plug 5-15P cable angle 90D 2P 15A 125V bk/wh

Manufacturer: Hubbell Wiring Devices | Catalog # HBL5266CAT | Electrozad South Part # 74237
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbell INSULGRIP strait blade cable plugs and connectors are made of white nylon locking blade insert, black grip housing and 1 piece screw cable clamp. They come in version 2 poles, 3 wires, 15-20 amp, 125-250 volts. Strait or 90 degree angled models available.

Technical Information

Amperage
15 A
Applications
Industrial/Commercial
Conductor Size
16 - 10 AWG
Cord Type
All Portable
Current
15 A
Grounding
Grounding
Horsepower
0.50 hp
Material
Composite
Mounting Type
Cord
NEMA
5-15P
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rating
125 V
Screw Material
#8-32 Brass/Nickel Plated
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
TC Connection
Terminal Screws
Type
Insulgrip, Right-angled
Voltage
125 V
Wattage
1,875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585173108
Color
Clear
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585173108
Housing Material
Nylon-Black
Product UPC
78358517310
Weight
0.15 lb

Dimensions

Height
1.540 in
Length
2.420 in
Width
2.400 in

Certifications & Compliance

Certifications
CSA Certified To C22.2 No. 42 File 280,UL Listed To UL498 File E1706
Country of Origin
USA
Overview
  • Angled low profile housing
  • Powerful, offsetting cord grips clamp on individual conductors
  • Individual wiring terminals completely enclosed
  • Transparent for easy visual inspection of termination
