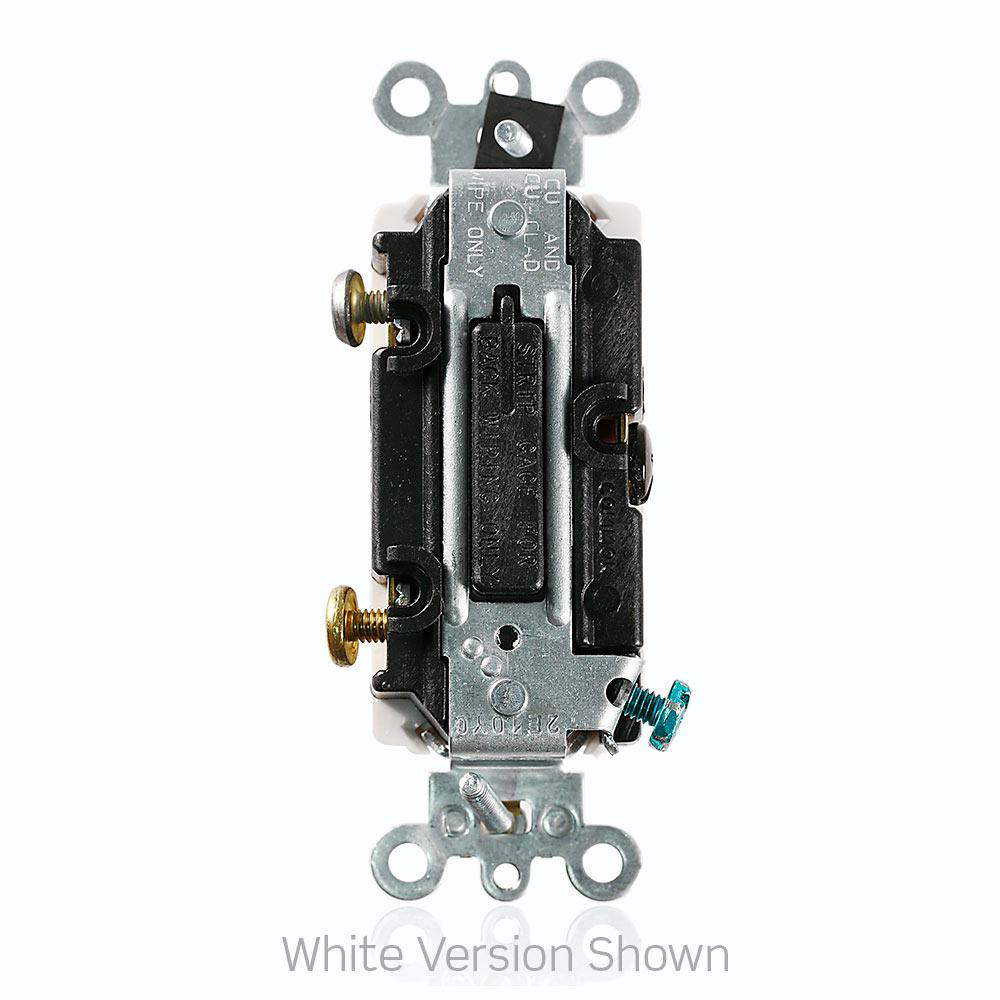

Switch AP decora red light 1P 20A 120/277V white

Manufacturer: Leviton Manufacturing | Catalog # 5628-2W | Electrozad South Part # 73425
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet
20 Amp, 120 Volt, Decora Plus Rocker Pilot Light - Illuminated ON - Req. Neutral Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White

Technical Information

Actuator
Rocker
Amperage
16 A
Applications
For Commercial use
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
120 VAC, 20 A
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Indicator
Pilot Light
Material
Thermoplastic
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wire
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Illuminated
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477515648
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477515648

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
