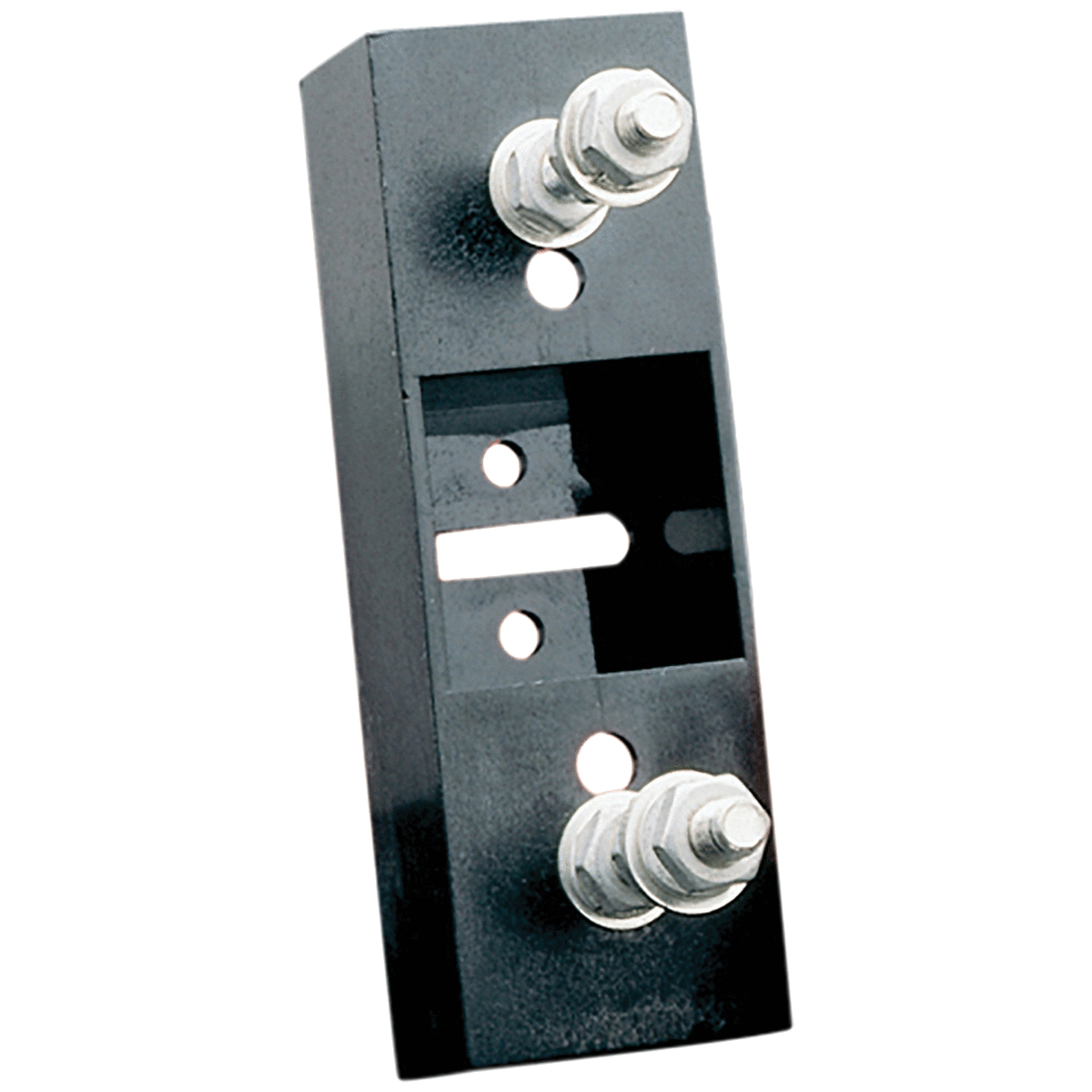

Fuse Bases 1000V 35 - 200A Semiconductor 1-pole 1/4-20 Stud

Manufacturer: Ferraz Shawmut Mersen | Catalog # P243C | Electrozad South Part # 72523
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated

Technical Information

Amperage
200 A
Connection Type
Stud
Connector Type
Stud
Frequency
50/60 Hz
Fuse Class
Semiconductor
Fuse Interrupt Rating
200 A
Fuse Type
Semiconductor
Insulation Material
Phenolic
Max Operating Temperature
80 degrees C
Mounting Type
Direct Screw Mount
Number of Poles
2
Rated Voltage AC
1000 V
Rated Voltage DC
1000 V
Short Circuit Current Rating
10000 A
TC Connection
Stud
Terminal Material
Tin-Plated Copper
Terminal Type
Stud
Torque
36 lb-in
Torque Rating
36 lb-in
Type
Semiconductor Fuseholders And Blocks
Voltage
1000 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001974176
GTIN
00782001974176
Weight
0.25 lb

Dimensions

Height
2.79 in
Length
4.4 in
Width
2.79 in

Certifications & Compliance

Country of Origin
Mexico
