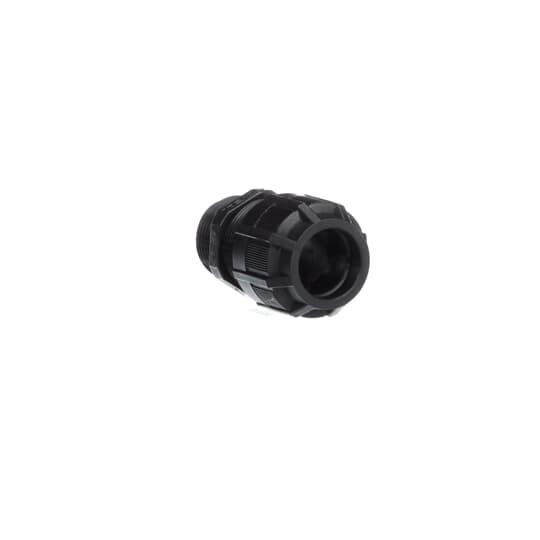

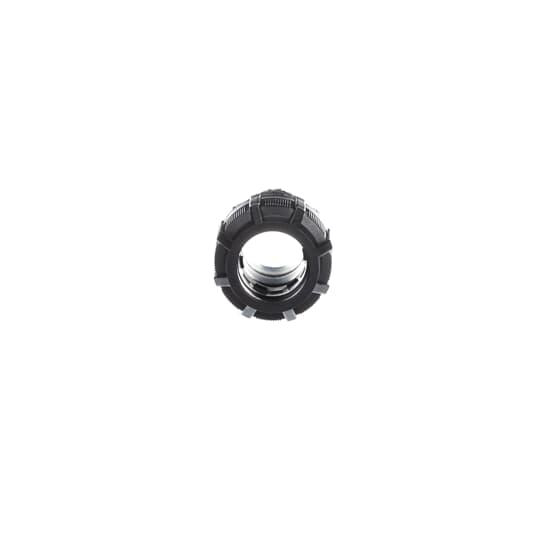

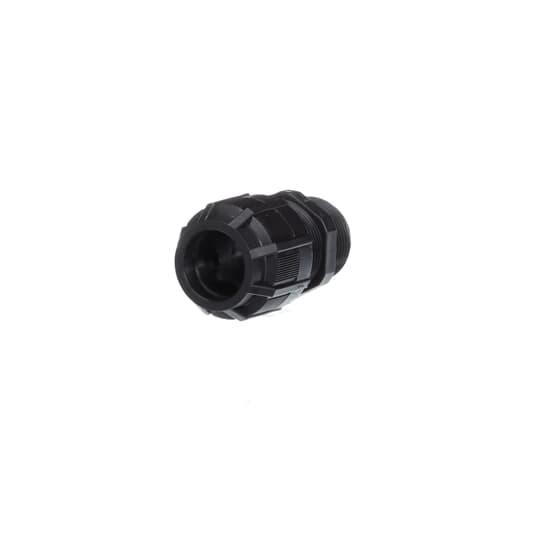

Connector strain relief lqdtght 3/4in 0.5-0.75in

Manufacturer: ABB | Thomas & Betts | Catalog # 2932NM | Electrozad South Part # 72431
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing
Ranger™ Liquidtight strain relief fitting is used for industrial flexible cord and cables. Weather stabilized nylon. UL 94-V2. Meets coast guard CG293. Smaller footprint.

Technical Information

Applications
Provide a Means for Passing a Cord Cable into an Enclosure Through a Bulkhead
IP Rating
IP65
Material
Nylon 6/6
Operating Temperature
-34 To 105 degrees C
Size
3/4 Inch
TC Connection
NPT
Temperature Rating
-34 to 105 degrees C
Thread Length
15.87 mm
Thread Type
NPT
Trade Size
3/4 in
Type
Straight

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210797458
Box Quantity
100
Color
Black,Black
GTIN
05414363101819
