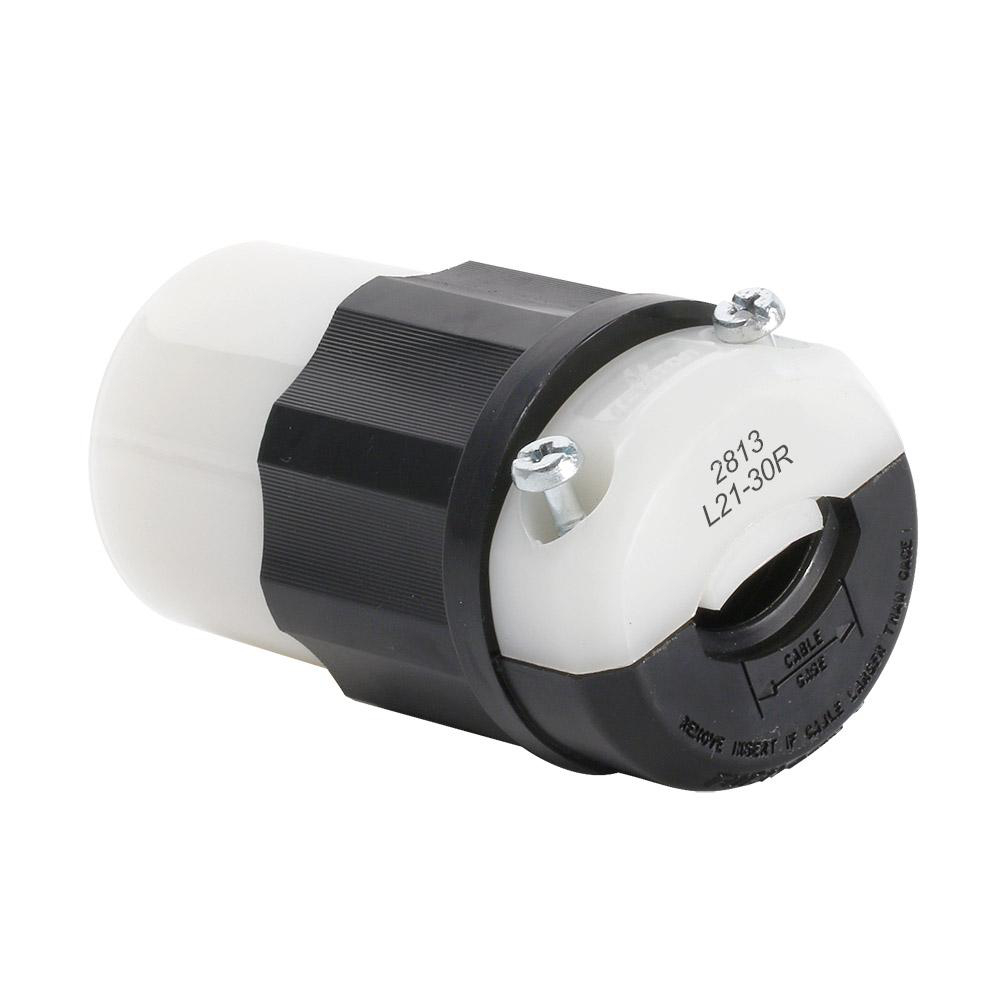

Connector locking 3P5W 120/208V 30A black-white

Manufacturer: Leviton Manufacturing | Catalog # 2813 | Electrozad South Part # 72265
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing
Levitons industry leading locking grade connector offer superior performance, long lasting reliability. Ergonomic fluted body design with radial grip ridge is ideal for gripping, turning and pulling. NEMA configuration, agency certifications and device rating are molded on front of the device to assist with identifications. Molded in strip gage provides measurement for proper strip length of conductor.

Technical Information

Amperage
30 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
3 hp
Material
Impact Modified Nylon
Mounting Type
Cable

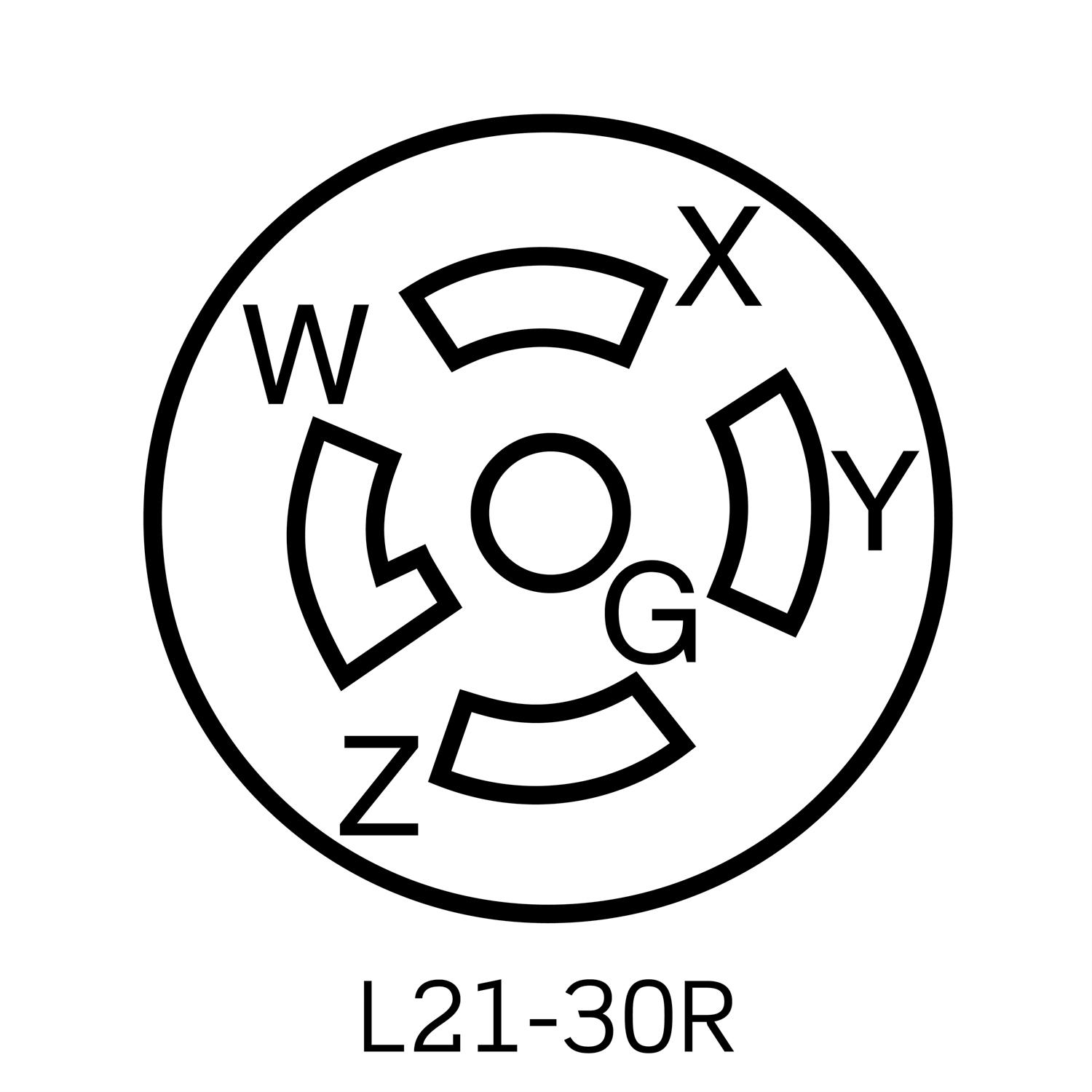

NEMA
L21-30R
Number of Phases
3
Number of Poles
4
Number of Wires
5
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
2.22 Diameter X 3.78 L IN
Standard
ANSI C-73
TC Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Straight Plug
Voltage
120/208 V
Wire Count
5
Wire Size
14 - 8 AWG
Wire Type
S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477808603
Color
Black/White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477808603

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
