Inlet flanged 125/250V 30A 3P4W L14-30P white

Manufacturer: Leviton Manufacturing | Catalog # 2715 | Electrozad South Part # 71619
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing
Locking flanged inlet, Industrial grade, Grounding offers superior performance, long lasting reliability.

Technical Information

Amperage
30 A
Applications
Commercial
Body Material
Nylon
Conductor Size
16-8 AWG
Connection Type
Back Wired
Contact Material
Solid Brass
Device Type
Locking Flanged Inlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Flange
NEMA

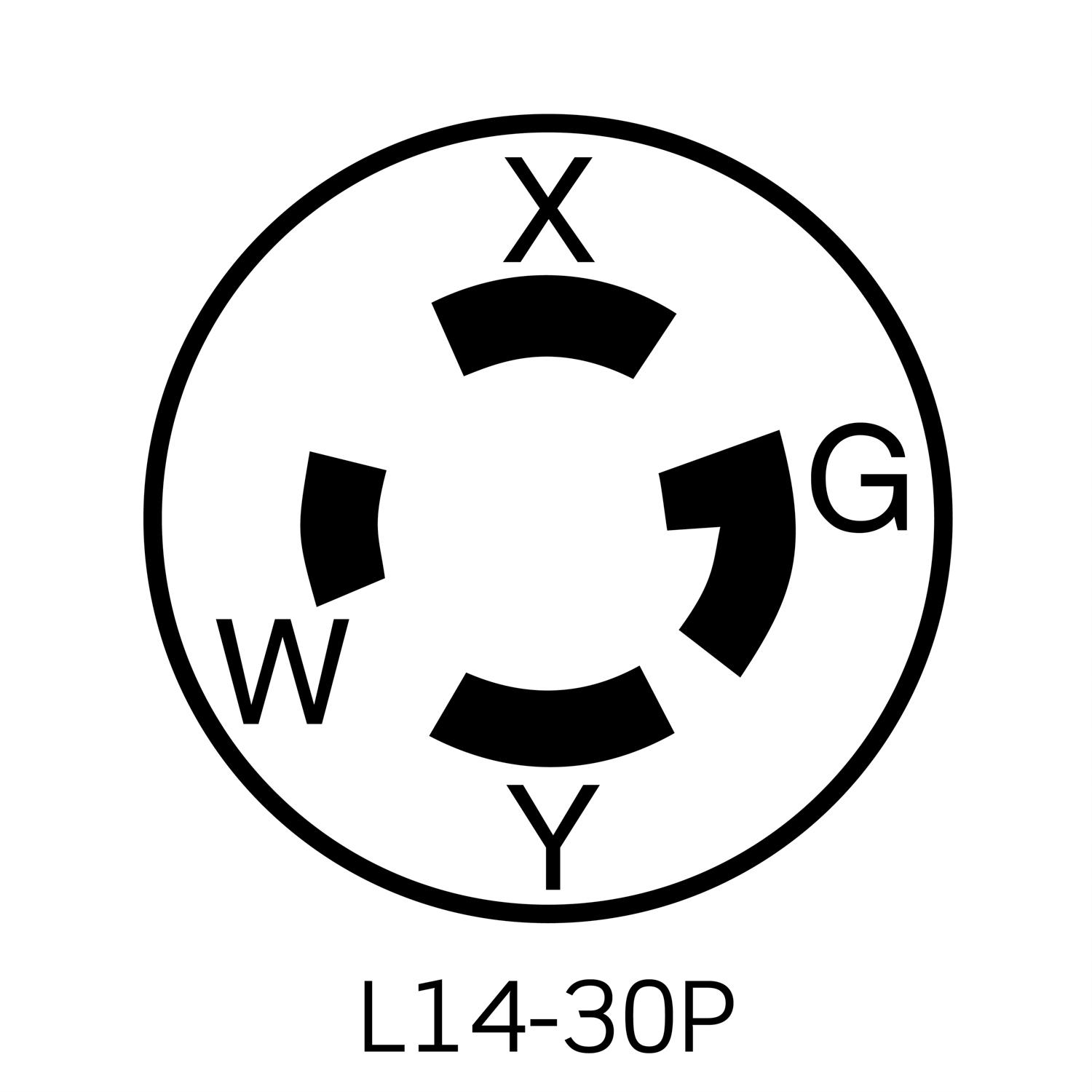

L14-30P
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
33 Dia. IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire
Type
Straight, Locking
Voltage
125/250 V
Wire Count
4
Wire Size
16 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477806388
Color
White
Environment
Dry
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477806388

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
