30 Amp, 600 Volt, Flush Mount Locking Receptacle, Industrial Grade

Manufacturer: Leviton Manufacturing | Catalog # 2690 | Electrozad South Part # 71396
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

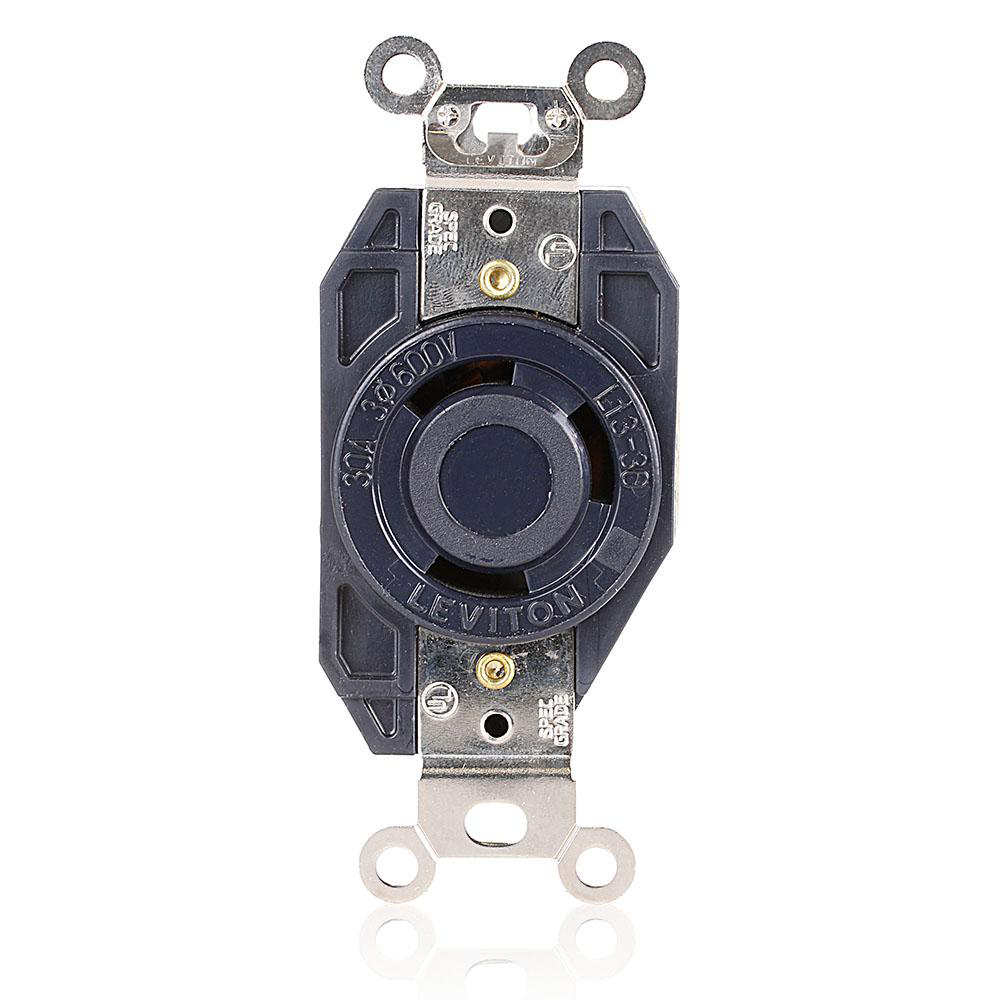

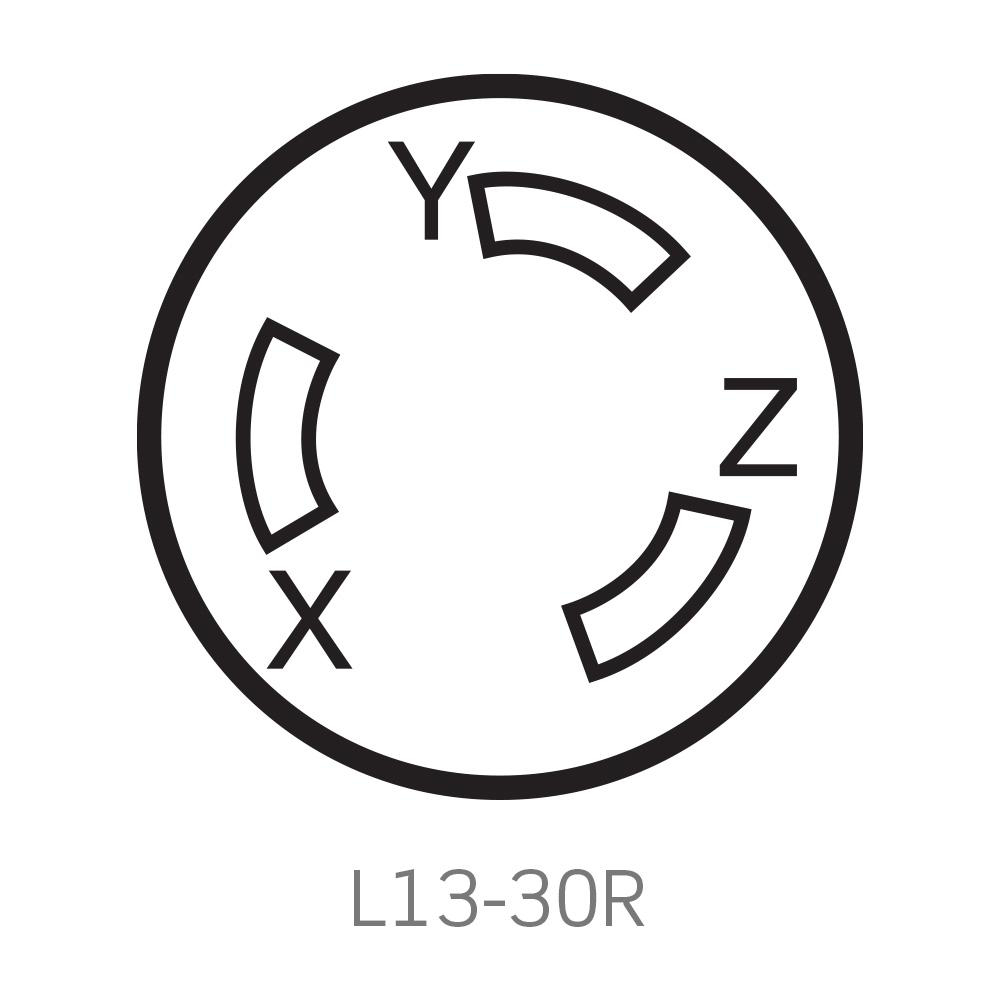

30 Amp, 600 Volt 3-Phase, NEMA L13-30R, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK

Technical Information

Amperage
30 A
Applications
Industrial
Base Material
Nylon,Nylon
Body Material
Nylon
Connection Type
Back Wired,Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-0 Per UL 94
Grounding
Non-Grounding
Material
Nickel-Plated Brass
Mounting Type
Box
NEMA
WD-1
Number of Phases
3
Number of Poles
3
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 To 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
600 V
Wire Count
3
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477045916
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
GTIN
00078477045916

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
