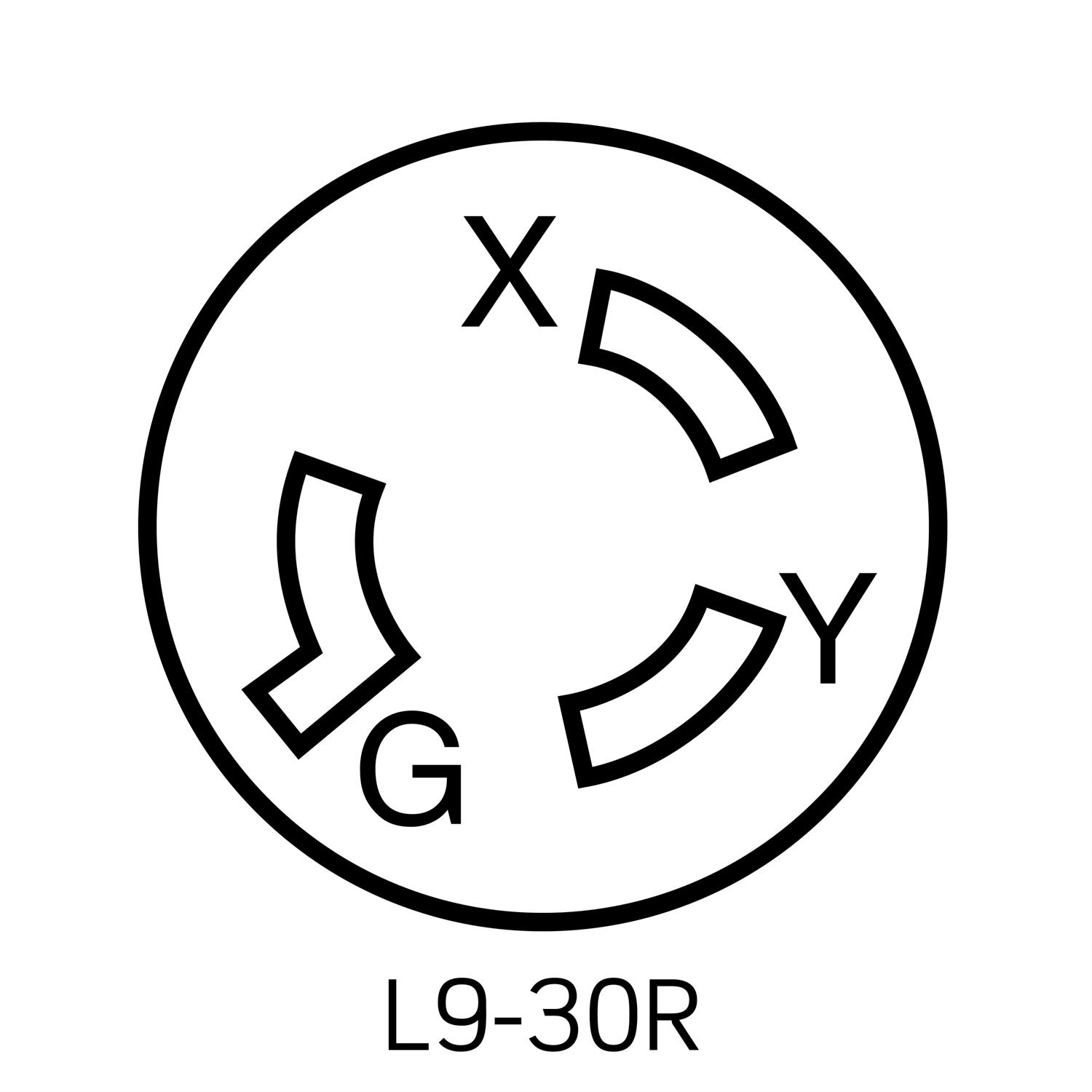

Receptacle locking flush 2P3W 600V 30A black

Manufacturer: Leviton Manufacturing | Catalog # 2650 | Electrozad South Part # 71100
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Levitons industrial grade locking receptacle are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Technical Information

Amperage
30 A
Applications
Industrial
Base Material
Valox,Valox
Body Material
Nylon
Connection Type
Back Wired,Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Ultramid
Flamability Class
Rated V-0 Per UL 94
Grounding
Grounding
Material
PBT
Mounting Type
Box
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
600 V
Wire Count
3
Wire Size
14 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477045688
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
GTIN
00078477045688

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
