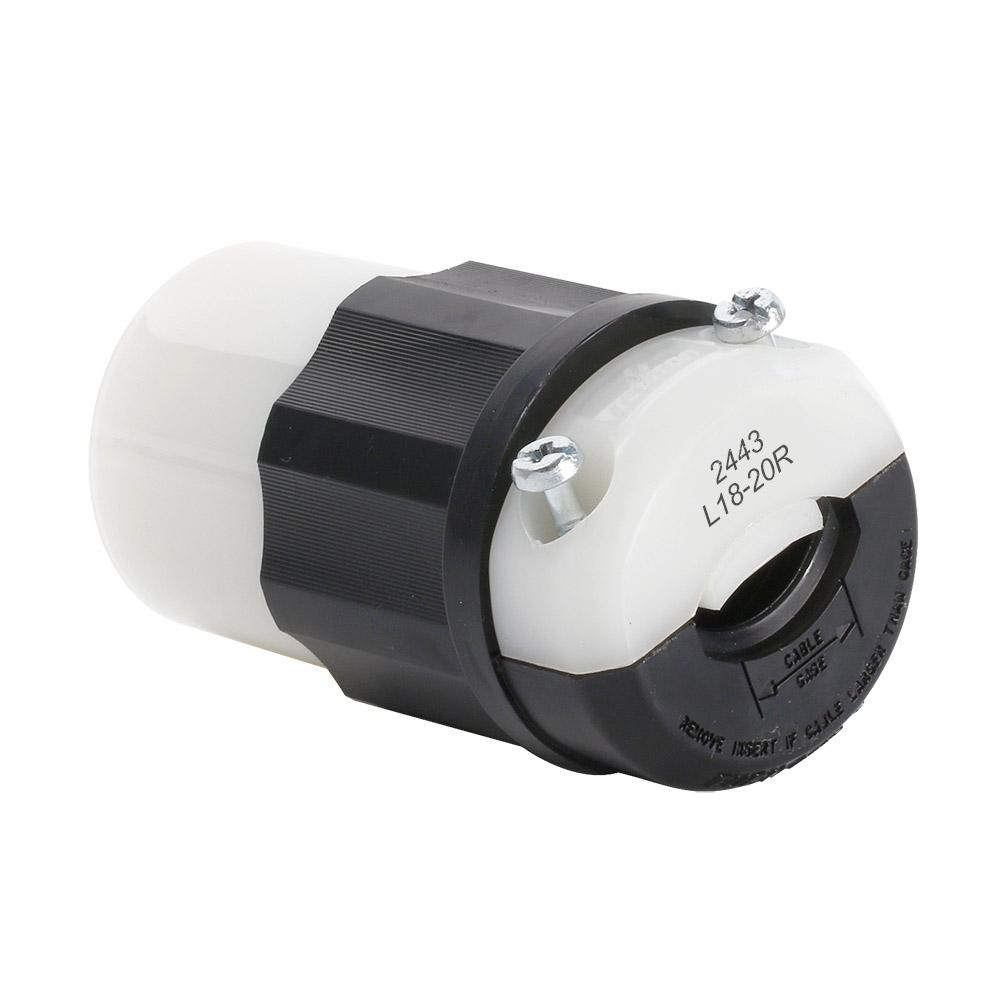

Locking Connector, 20 Amp, 120/208 Volt, Industrial Grade, Black & White

Manufacturer: Leviton Manufacturing | Catalog # 2443 | Electrozad South Part # 69431
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet

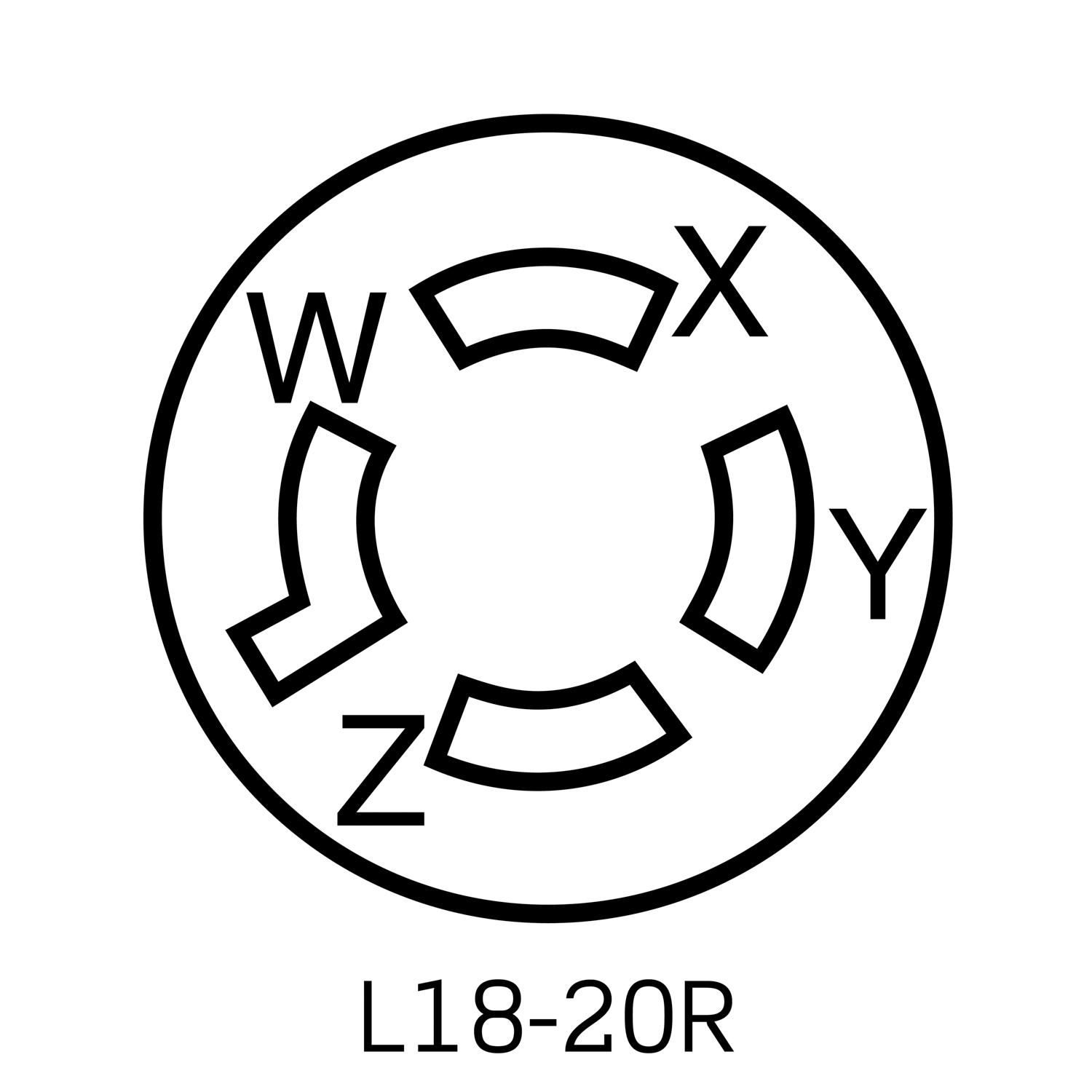

20 Amp, 120/208 Volt 3-Phase Y, NEMA L18-20R, 4P, 4W, Locking Connector, Industrial Grade, Non-Grounding - BLACK-WHITE

Technical Information

Amperage
20 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Contact Material
Solid Brass
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Non-Grounding
Horsepower
2 hp
Material
Super Tough Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Dia x 3.53 H IN
Standard
ANSI C-73
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Connector
Voltage
120/208 V
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477808320
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477808320

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
