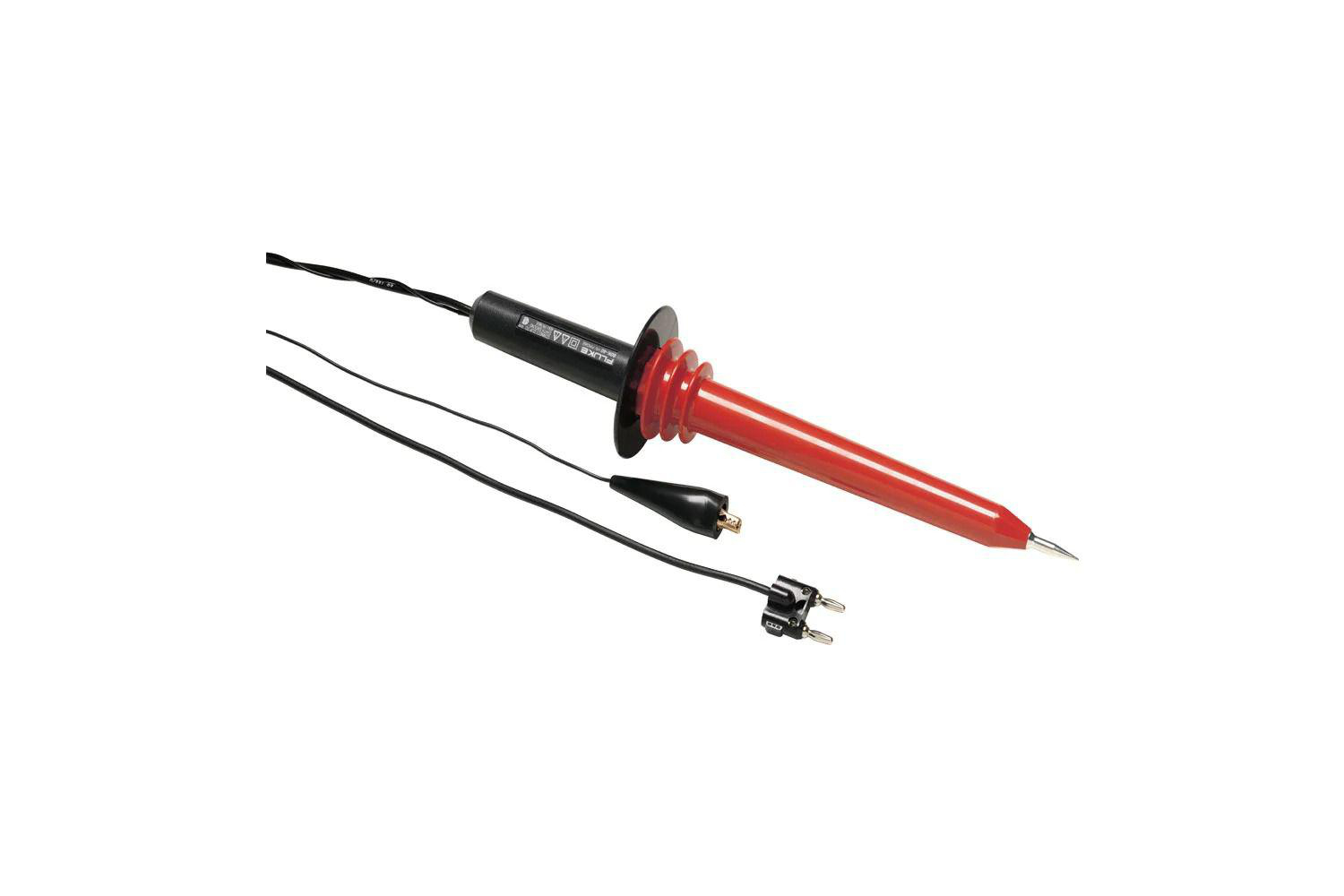

PROBE HIGH VAGE

Manufacturer: Fluke Electroncis | Catalog # 80K40 | Electrozad South Part # 67801
$585.56 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Is a high voltage probe designed to extend the voltage measuring capability of an AC/DC voltmeter to 40,000 volts peak AC or DC Overvoltage Category I. This means the probe can only be used to make measurements on energy limited circuits within equipment. Examples include high voltage within televisions or photo copy machines. DO NOT use this probe to measure high voltages on power distribution systems. The probe provides high accuracy when used with a voltmeter having 10 Megohm input impedance. The probe is a precision 1000:1 voltage divider formed by two matched resistors. The unusually high input impedance offered by these resistors minimizes circuit loading and thereby, optimizes measurement accuracy.

Technical Information

Accuracy
20 kV to 35 kV: ±1% at 20°C to 30°C; add 1% at 10°C <20°C and >30°C to 45°C. (For total measurement accuracy add accuracy specification of voltmeter being used.) 0 kV to <20 kV and >35 kV to 40 kV: ±2%.
Applications
Extend the voltage measuring capability of an AC/DC voltmeter to 40,000 volts peak AC or DC Overvoltage Category I
Enclosure
Hard plastic
Type
Current Probe

Manufacturer Information

Brand
Fluke

General Product Info

12-Digit UPC
095969001120
Color
Black/Red
GTIN
00095969001120

Dimensions

Diameter
1/2 IN
Length
12.99 in
