3M™ Cold Shrink Insulator, 8427-12, 250-400 kcmil (125-200 mm..), 1 kV | Electrozad South
Product image for 3M™ Cold Shrink Insulator, 8427-12, 250-400 kcmil (125-200 mm..), 1 kV
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

3M™ Cold Shrink Insulator, 8427-12, 250-400 kcmil (125-200 mm..), 1 kV

Manufacturer: 3M | Catalog # 8427-12 | Electrozad South Part # 66792
$86.10 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

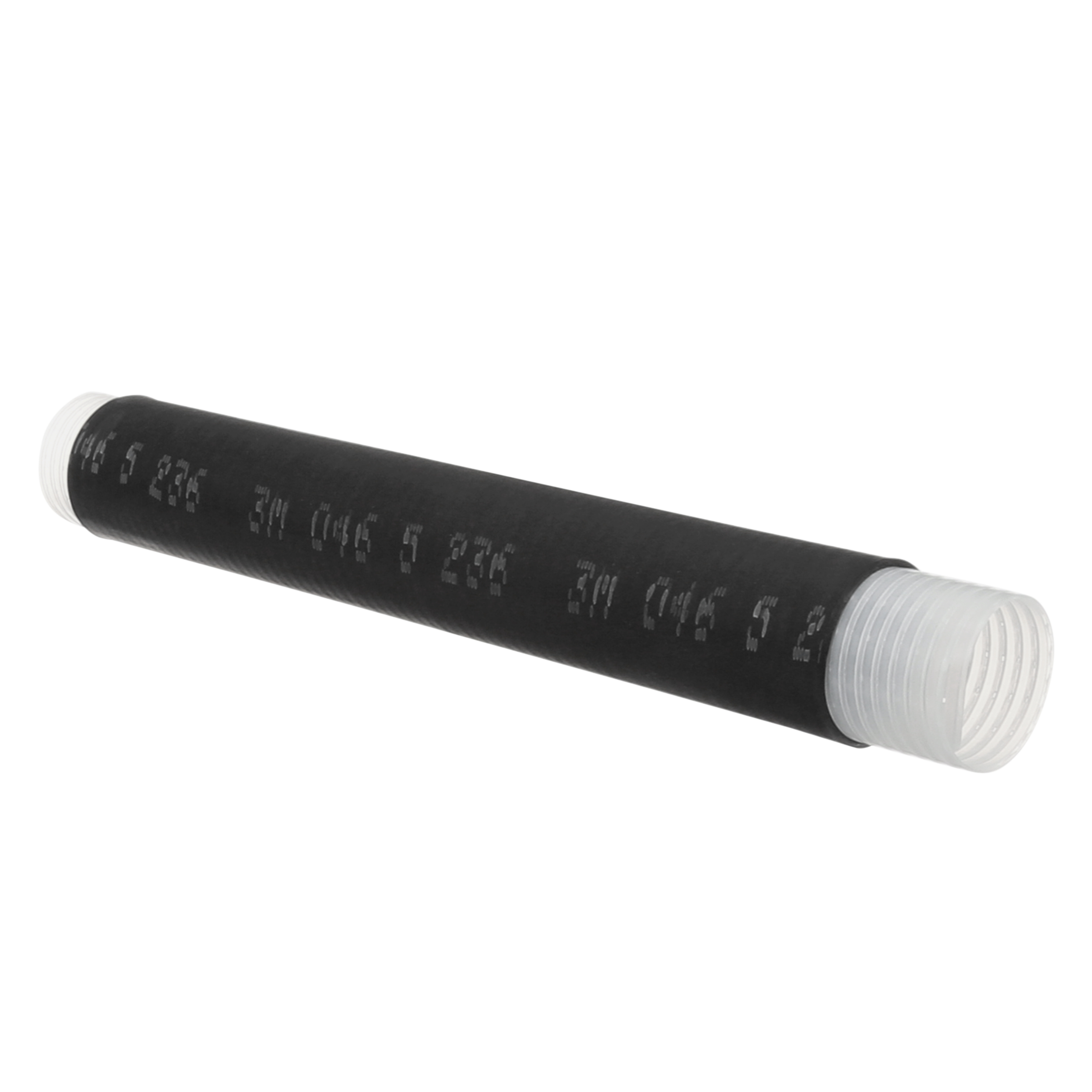

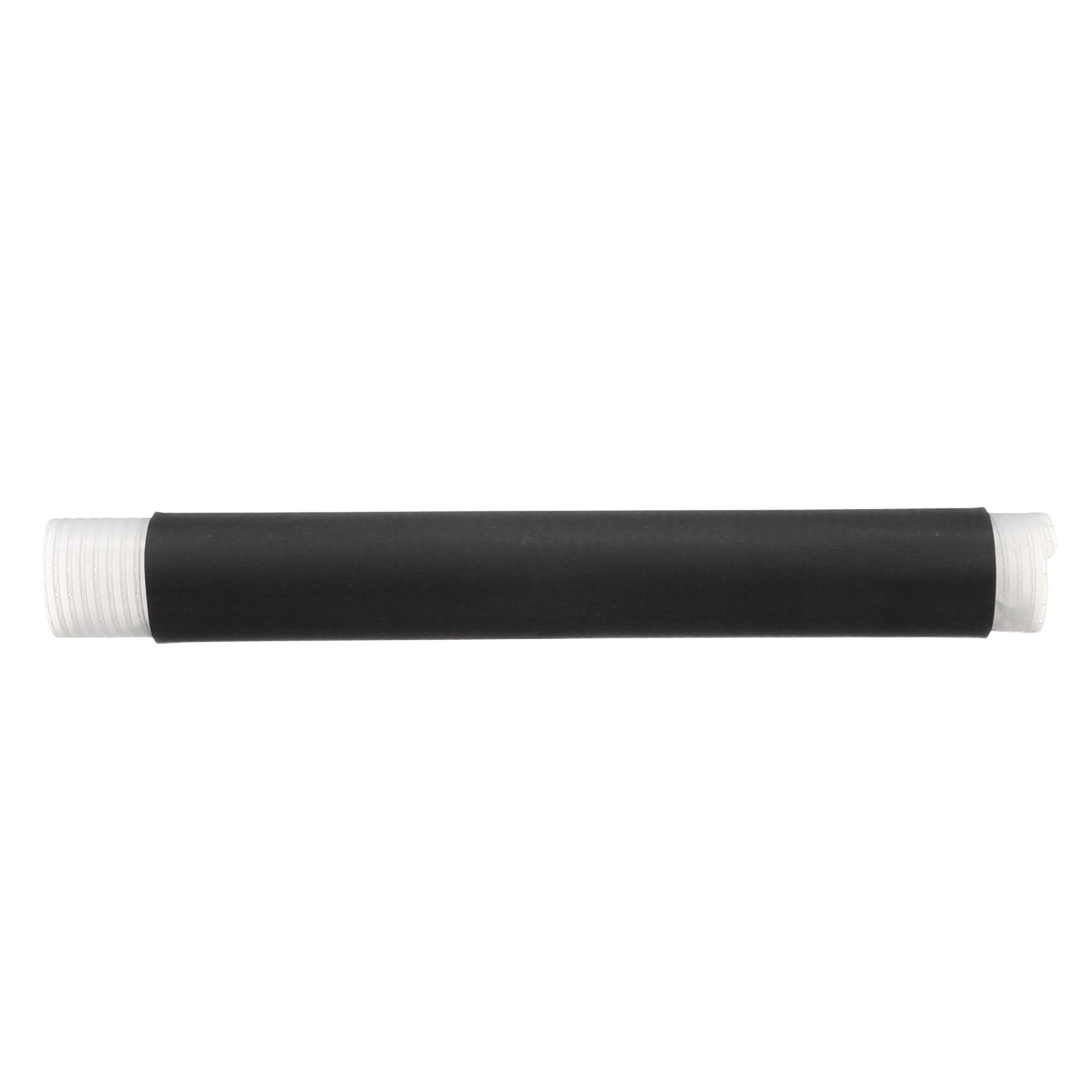

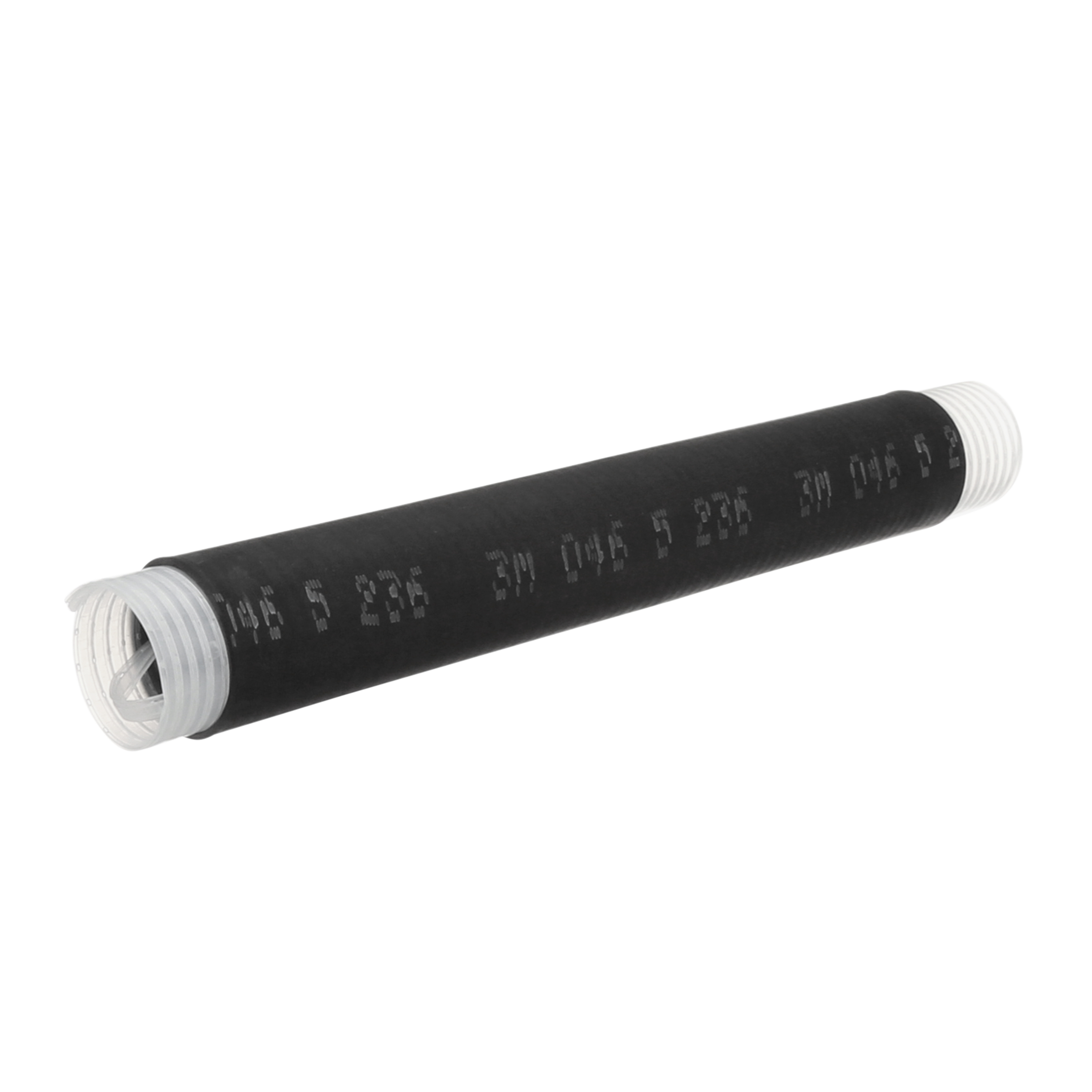

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.

Technical Information

Applications
Insulation, Mechanical Protection, Repair
Cable Type
Non-Shieled, Solid Dielectric Power Cable
Conductor Material
Aluminum,Copper
Conductor Size
125-200 mm
Material
EPDM Rubber
Max Operating Temperature
194 degrees F
Number of Conductors
1
Shielding Type
Non-shielded,Tape Shield,UniShield®,Wire Shield
Splice Type
Cold Shrink
Voltage
1 kV

Manufacturer Information

Brand
3M™

General Product Info

12-Digit UPC
054007344599
Color
Black
GTIN
00054007344599
Product Type
Splice
Product UPC
05400734459

Dimensions

Length
12 in
Overall Length
12 in

Certifications & Compliance

Country of Origin
USA
