YAV28L

Manufacturer: Burndy | Catalog # YAV28L | Electrozad South Part # 66210
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

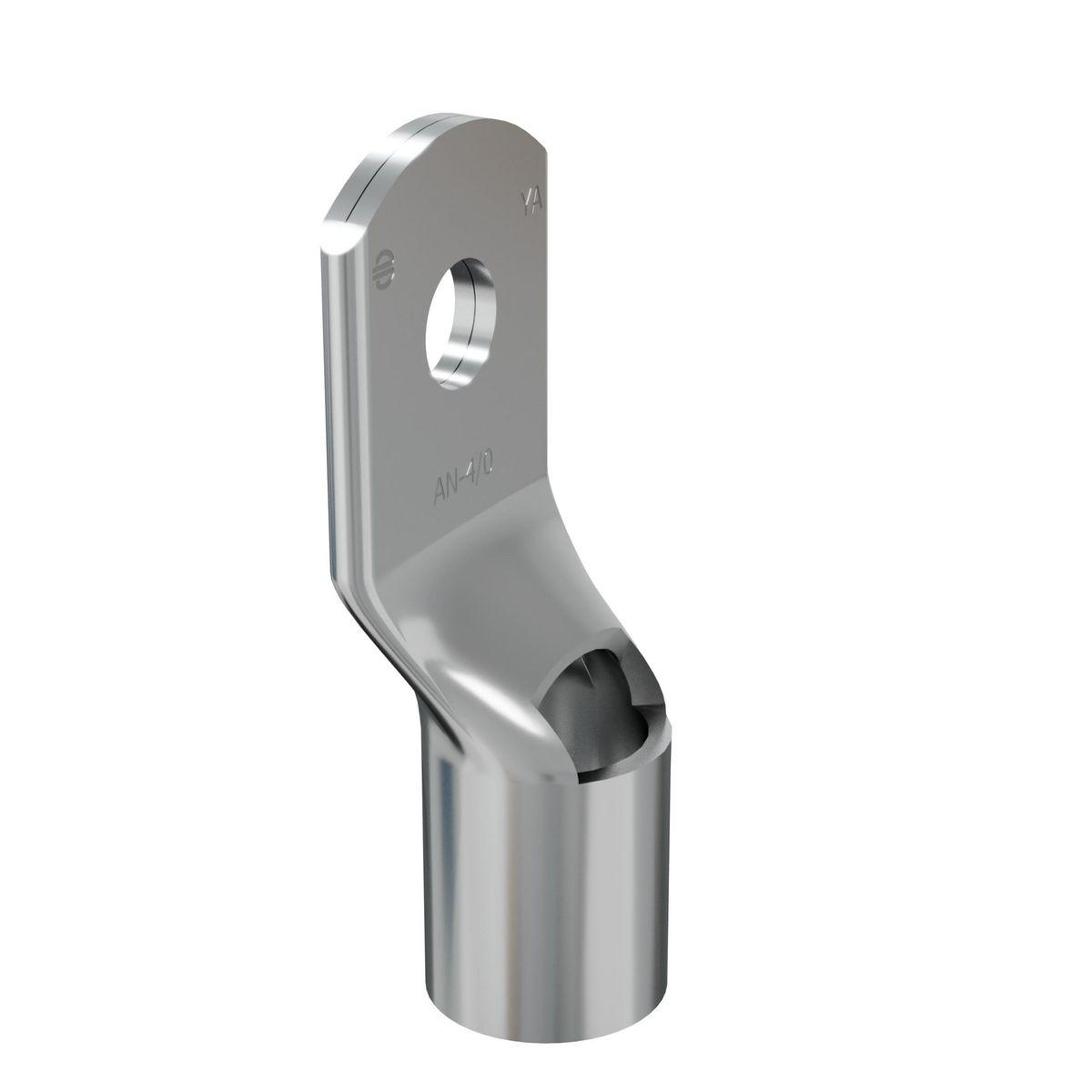

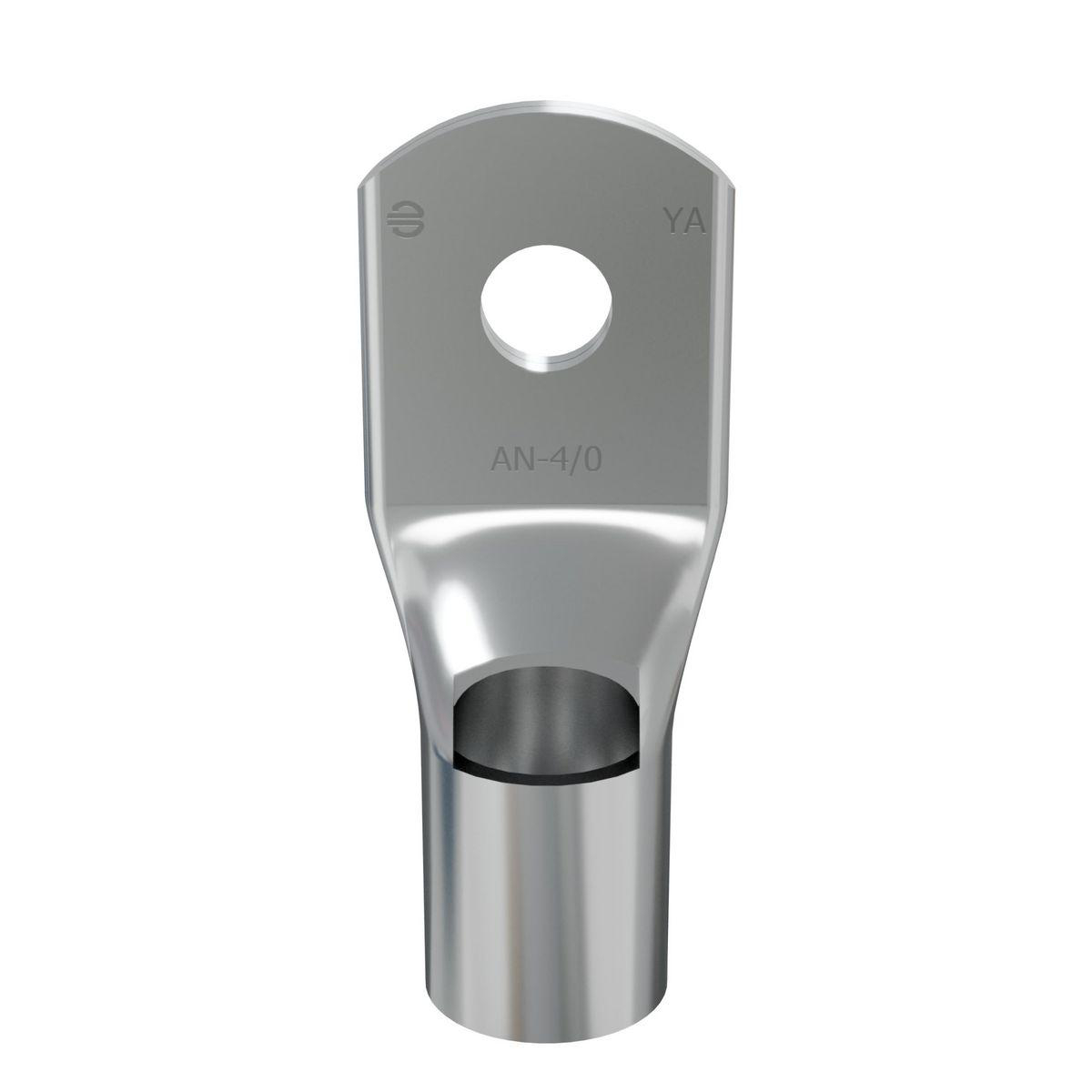

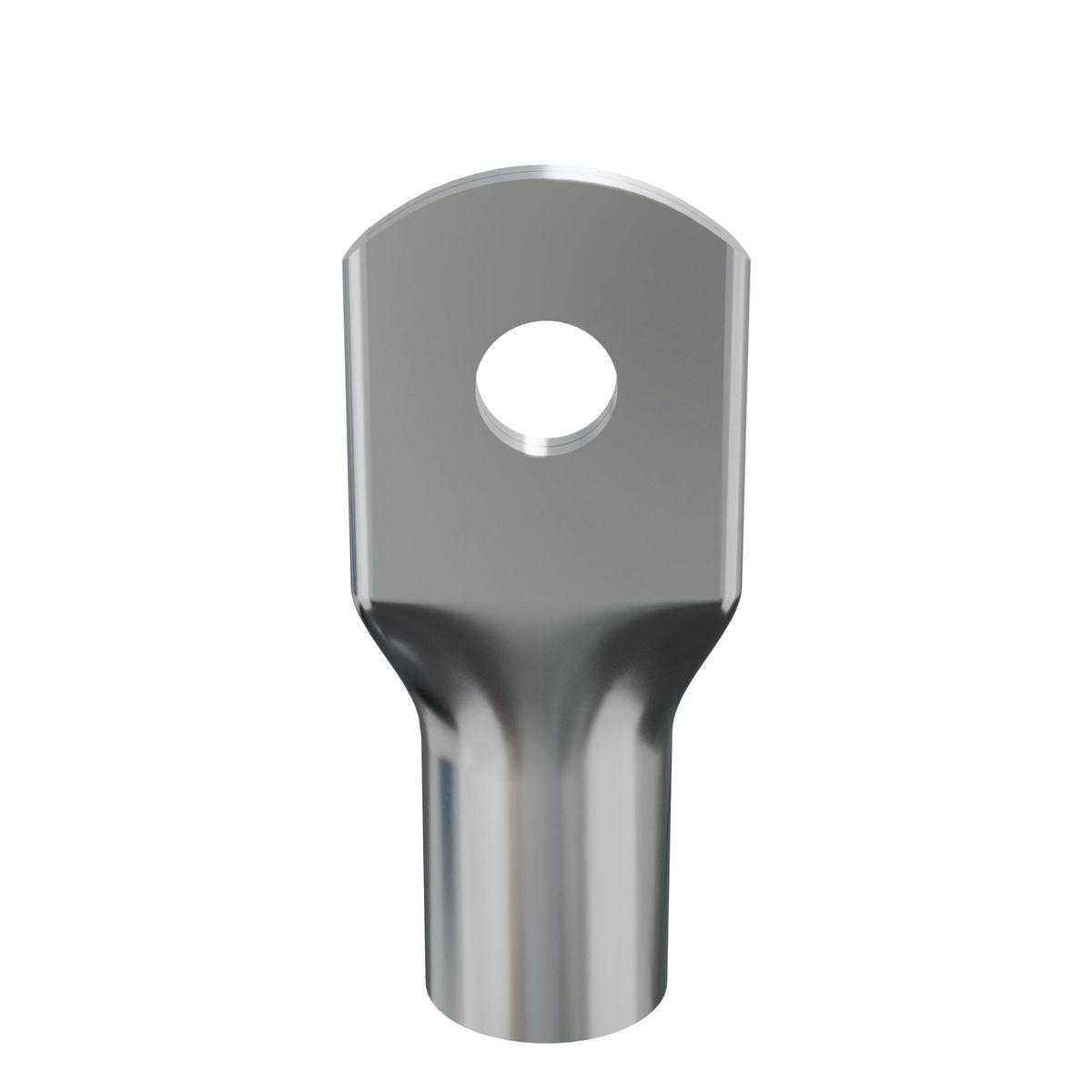

Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-4/0 Flex, 3/8" Stud, Short Barrel.

Technical Information

Applications
For Use on Type AN Aircraft Cable, Extra Flexible Conductors and Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers
Barrel Type
Short
Cable Size
4/0 AWG Flex
Conductor Size
4/0 AWG Flexible
Connection Type
Ring Terminal
Material
Copper
Mounting Type
10 mm Hole
Number of Holes
1
Plated?
Yes
Plating Type
Tin
Stud Size
3/8 in
Tongue Type
Ring
Type
Heavy-Duty, Uninsulated

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810807217
Finish
Tin-Plated
GTIN
00781810807217

Dimensions

Height
0.82 in
Hole Size
10 mm
Length
2.72 in
Overall Length
2.72 in
Width
1.12 in

Certifications & Compliance

Country of Origin
USA
CSA
No
