J PYRAMID FUSE BLOCK

Manufacturer: Bussman Cooper Fuses | Catalog # JP60030-3CR | Electrozad South Part # 64768
$225.21 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

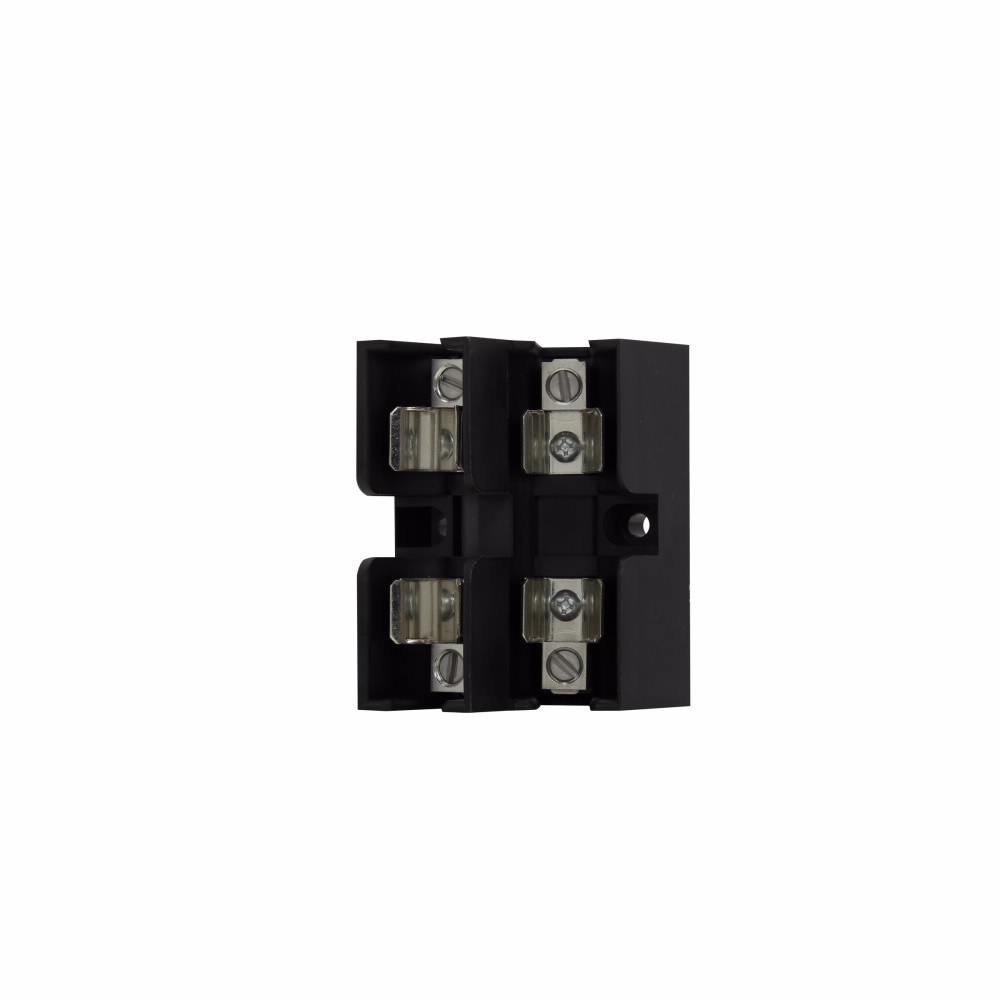

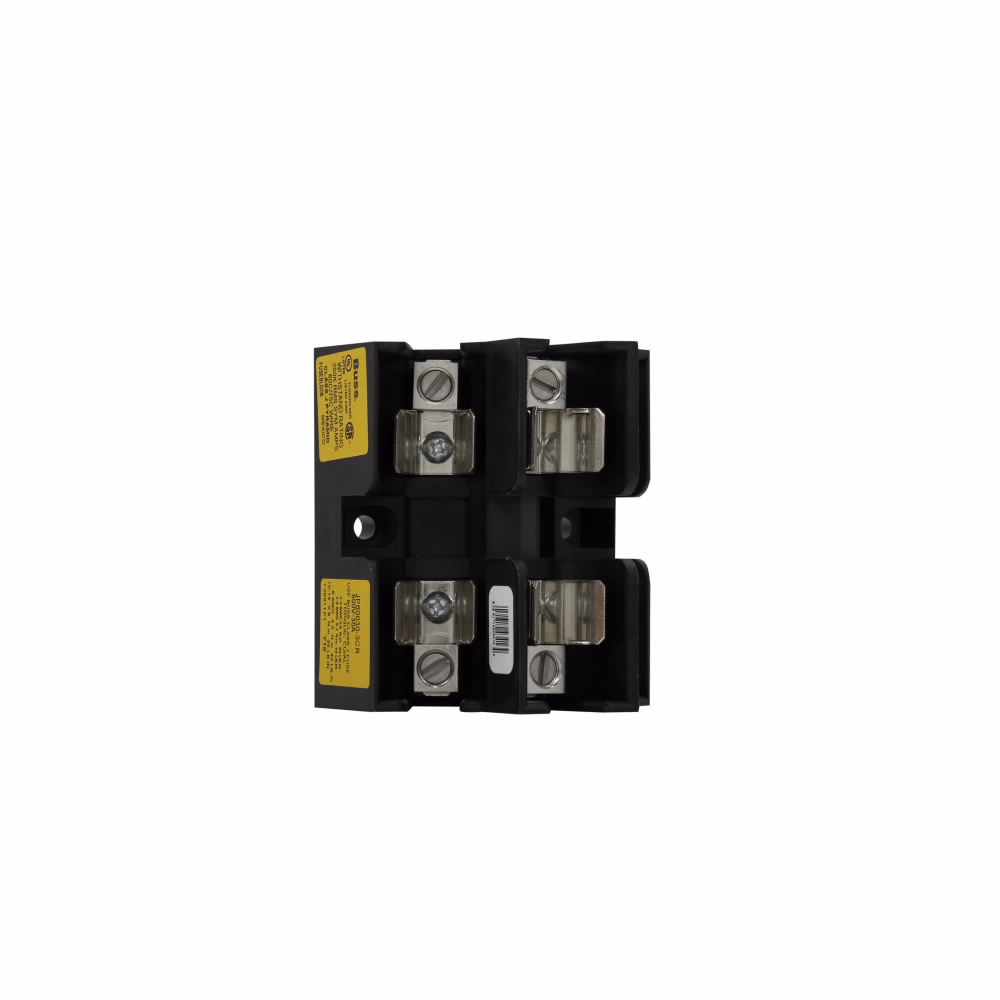

Eaton Bussmann series JP pyramid fuse block, CR, 30 A, Class J, 200 kAIC, Thermoplastic, Panel, 600 V, #14-2 AWG Cu/Al

Technical Information

Amperage
30 A
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Enclosure Material
Stainless Steel
Interrupt Rating
200 kA
Material
Thermoplastic
Mounting Type
Panel
Size
3.29 In Length X 3.75 In Width X 2.78 In Height
Standard
CSA,E2186,UL
Type
Pyramid EZ
Voltage
600 V
Wire Size
14-2 AWG

Manufacturer Information

Brand
Eaton
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712434164
Class
J
GTIN
00051712434164
Weight
.7 lb

Dimensions

Height
0.001 in
Length
.001 in
