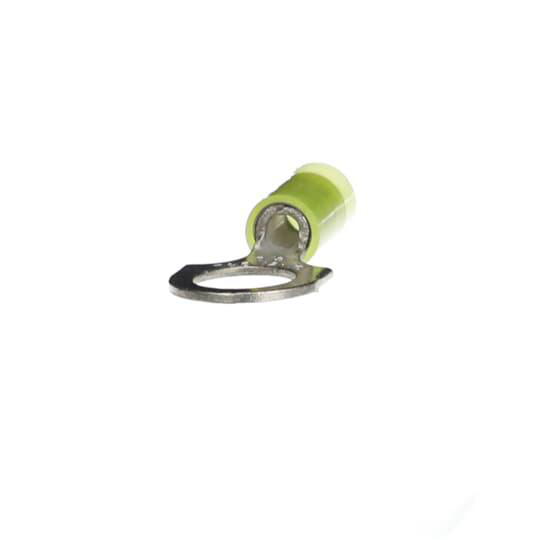

Image thumbnail 1

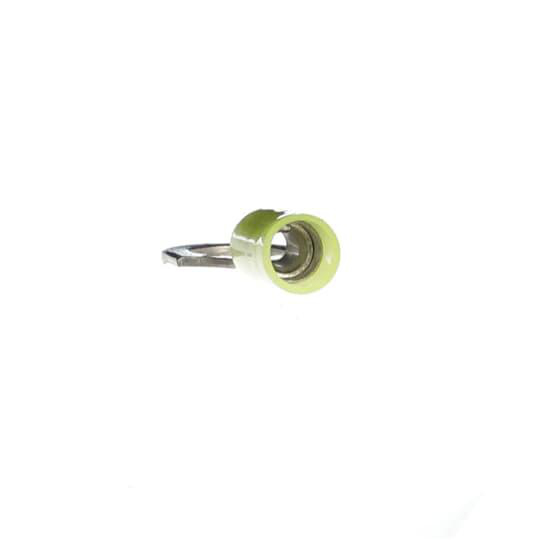

Image thumbnail 2
To:
CC:

INS NYL RING TERM 12-10 BLT 3/8 YEL

Manufacturer: ABB | Thomas & Betts | Catalog # RC10-38 | Electrozad South Part # 64470
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Nylon Insulated Ring Terminal, Length 1.27 Inches, Width .59 Inches, Maximum Insulation .210, Bolt Hole 3/8 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 V
Wire Size
12 - 10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804453
Color
Yellow
Finish
Tin Plated
GTIN
05414363159124
Used With
Round Conductors

Dimensions

Height
3 in
Thickness
.04 in
Width
1.3 in
