150A 500V AC TAG FUSE | Electrozad South
Product image for 150A 500V AC TAG FUSE

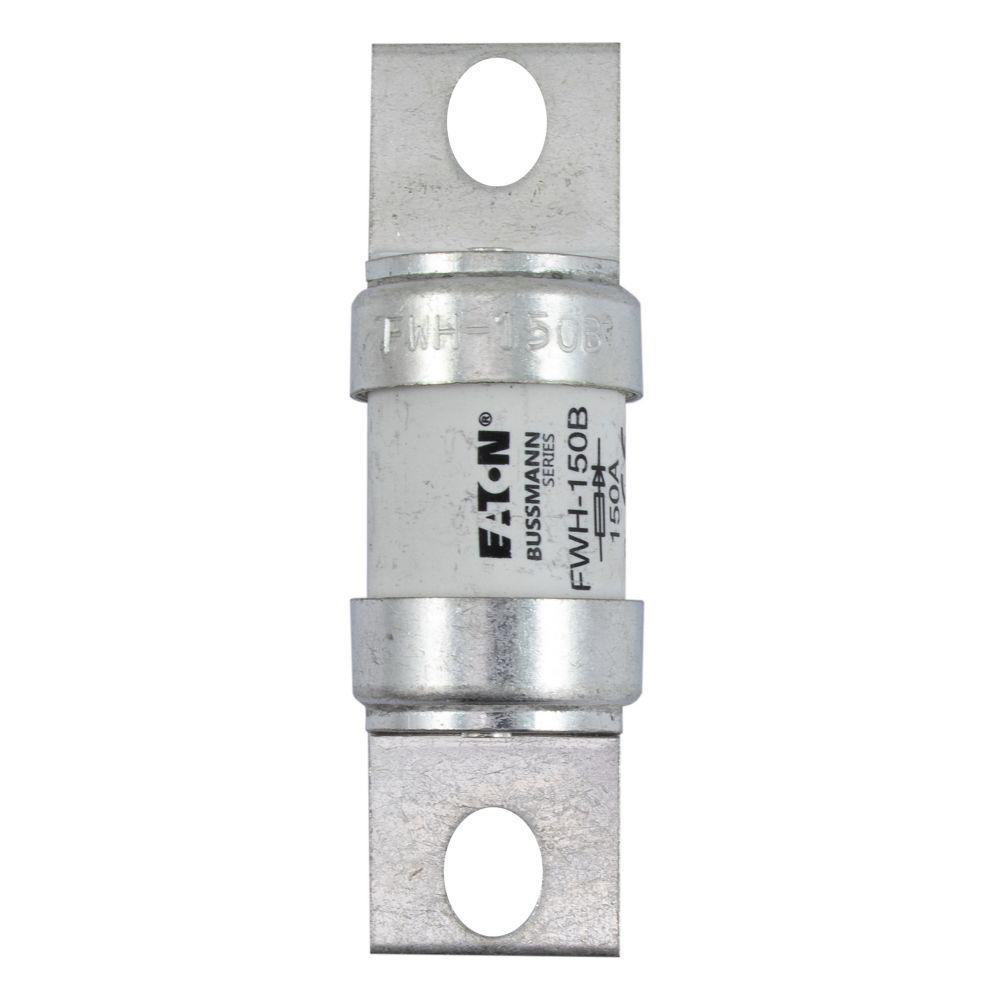

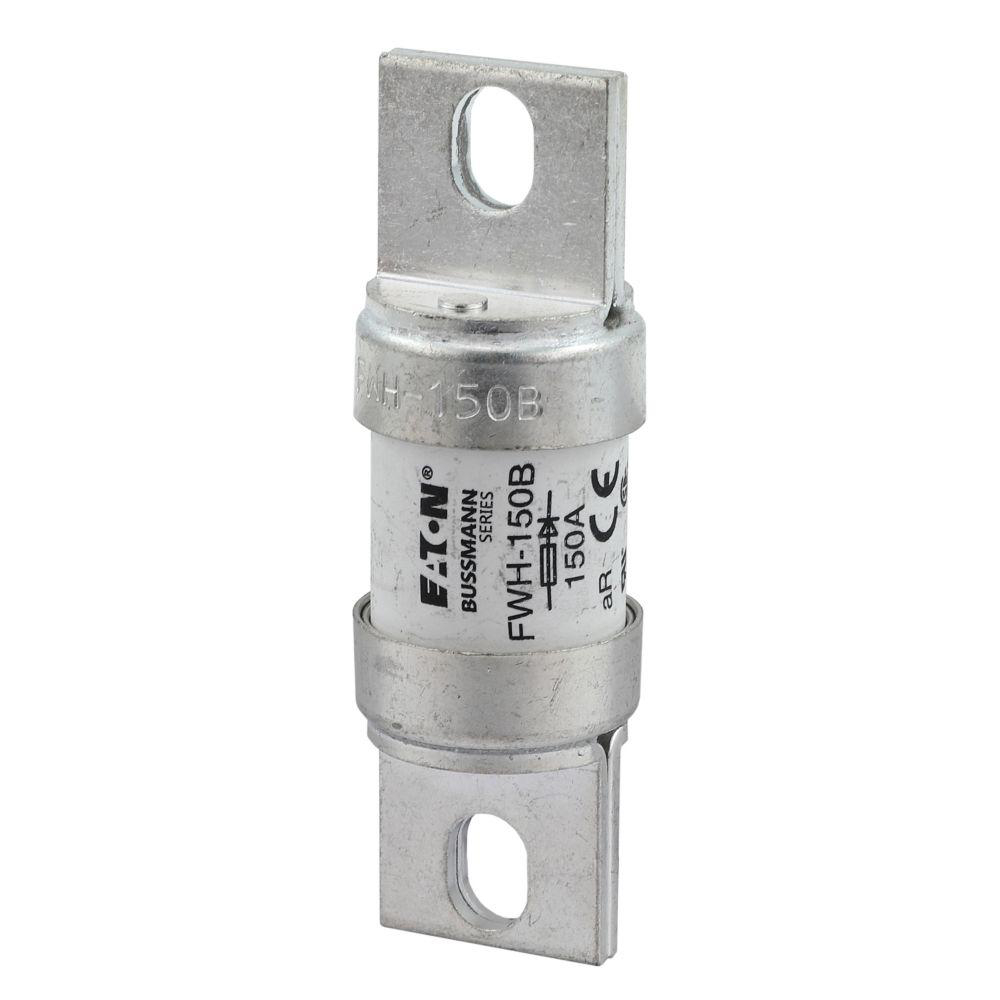

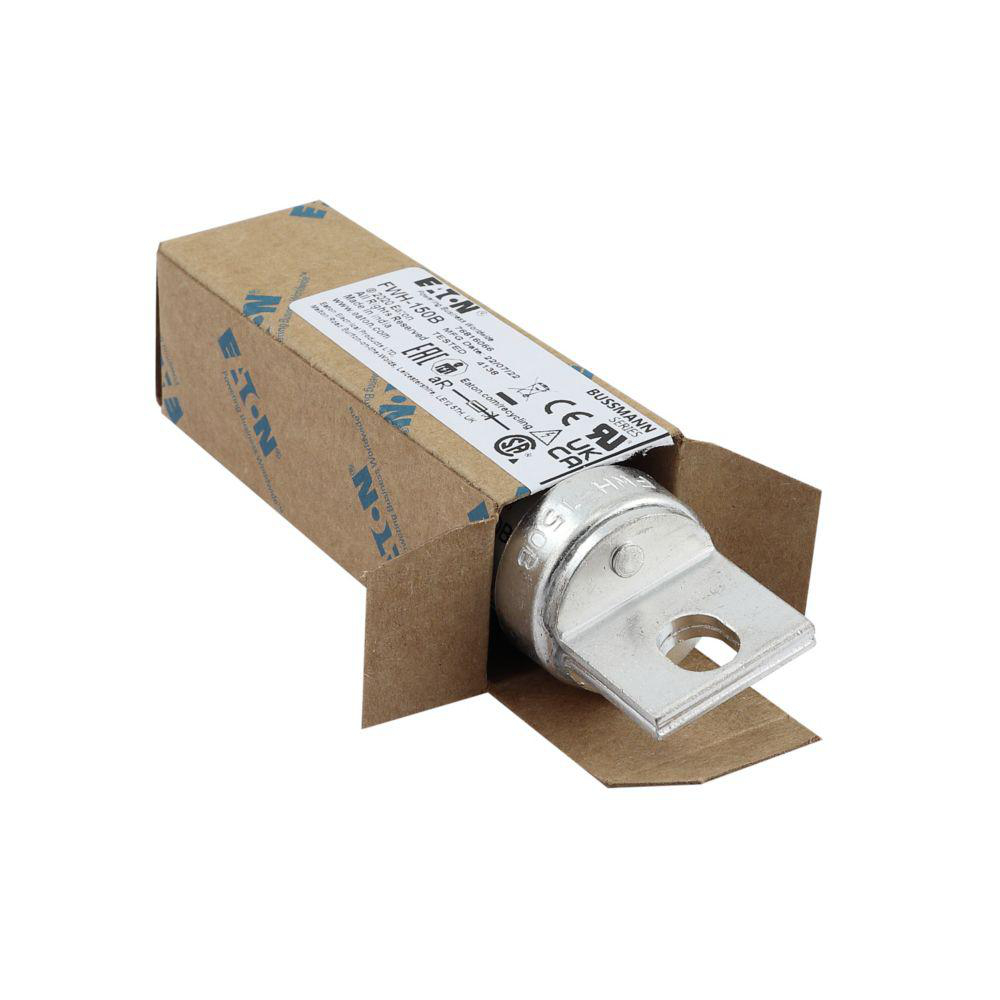

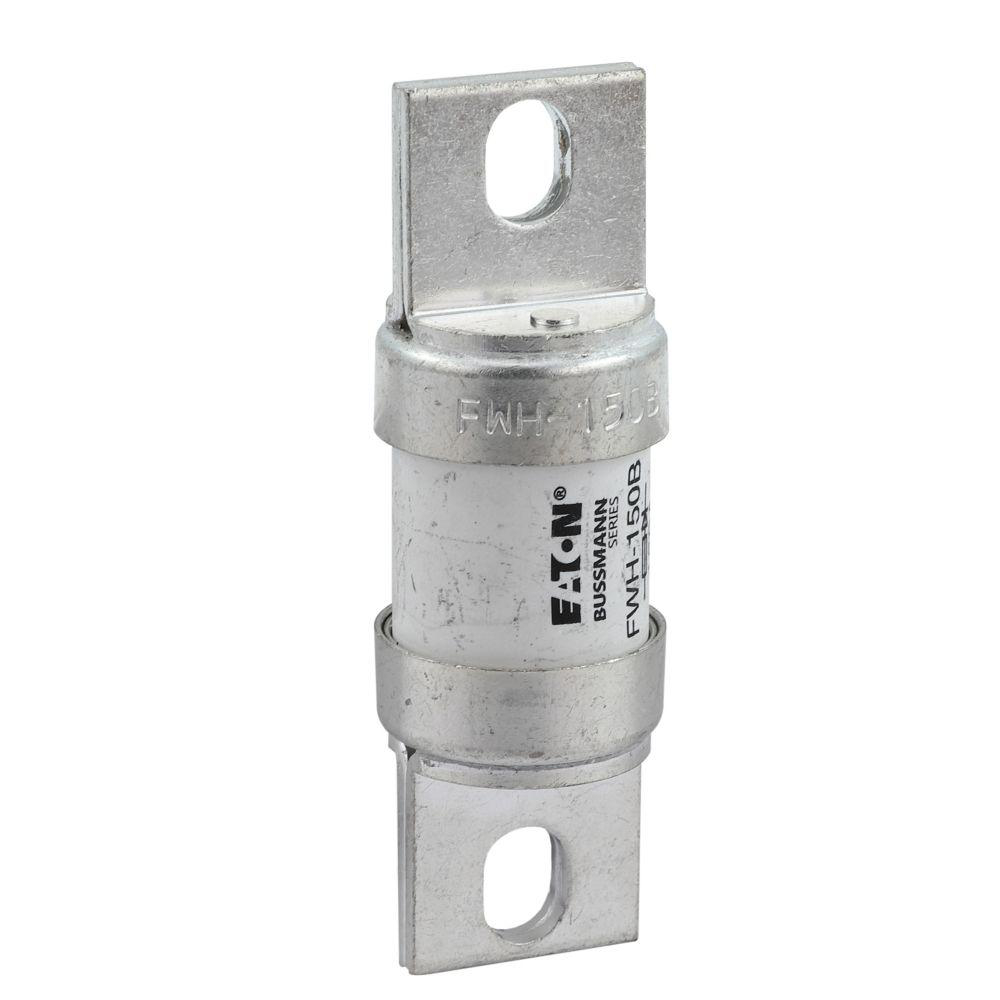

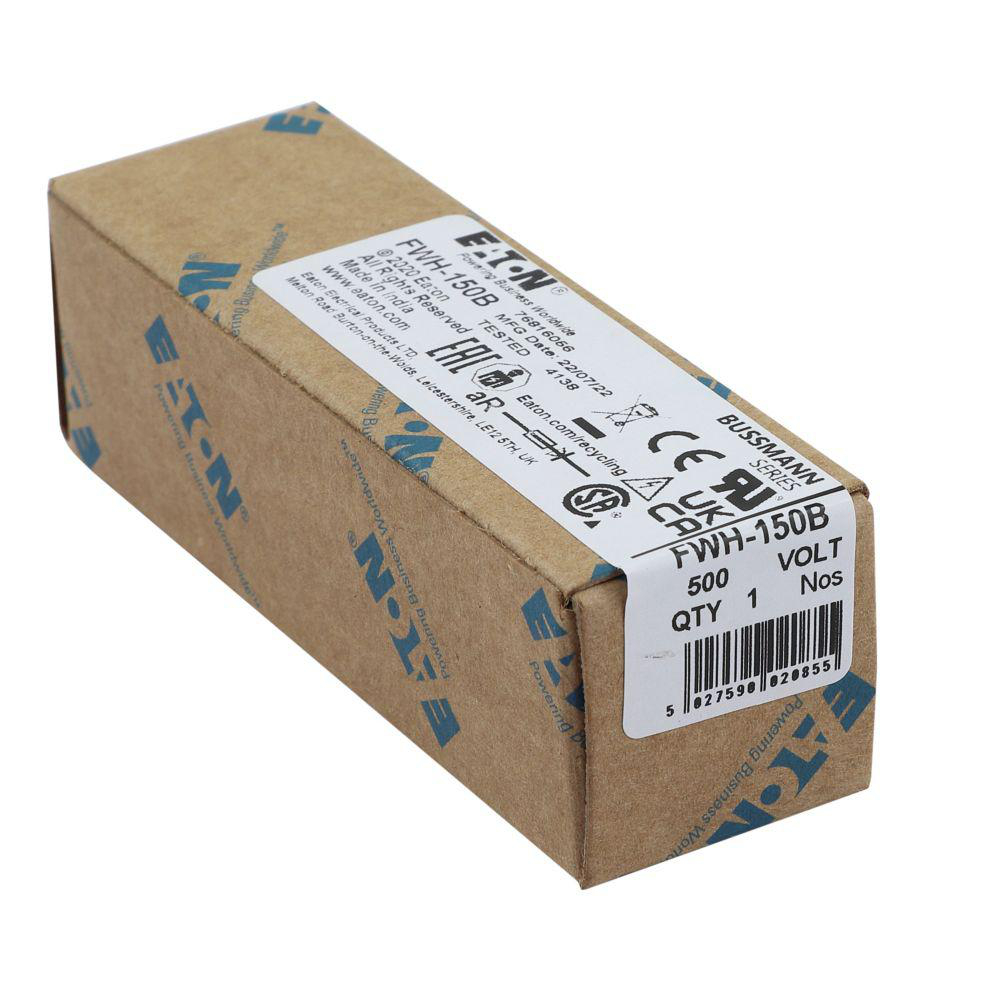

Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

150A 500V AC TAG FUSE

Manufacturer: Bussman Cooper Fuses | Catalog # FWH-150B | Electrozad South Part # 64446
$246.48 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 150A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud

Technical Information

Amperage
150 A
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Connection Type
Blade
End Type
Blade
Mounting Type
Stud
Size
1.156 In Diameter X 3.625 In Length
Standard
CSA,E2186,UL
TC Connection
Rod To Blade
Type
High-Leverage
Voltage
500 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712795845
Class
Class H/K
GTIN
00051712795845
Weight
154 g

Dimensions

Height
30 mm
Length
91 mm
