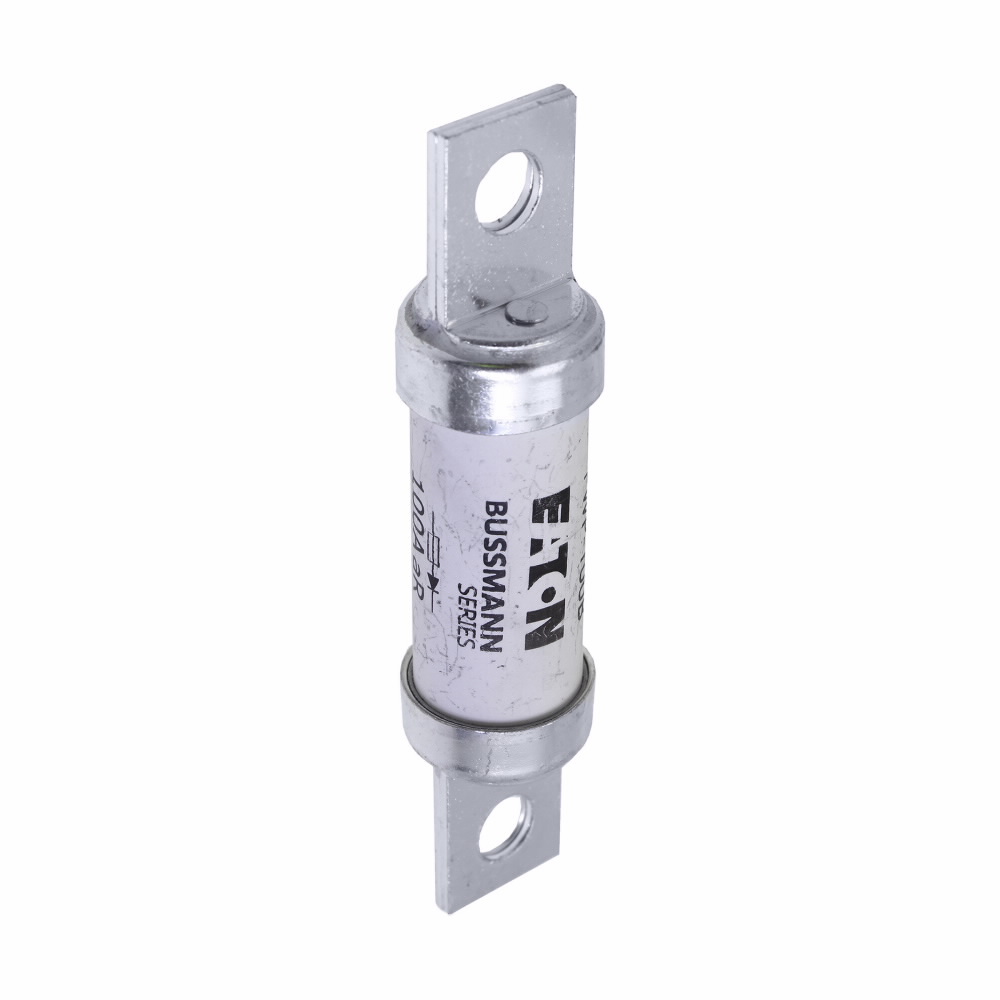

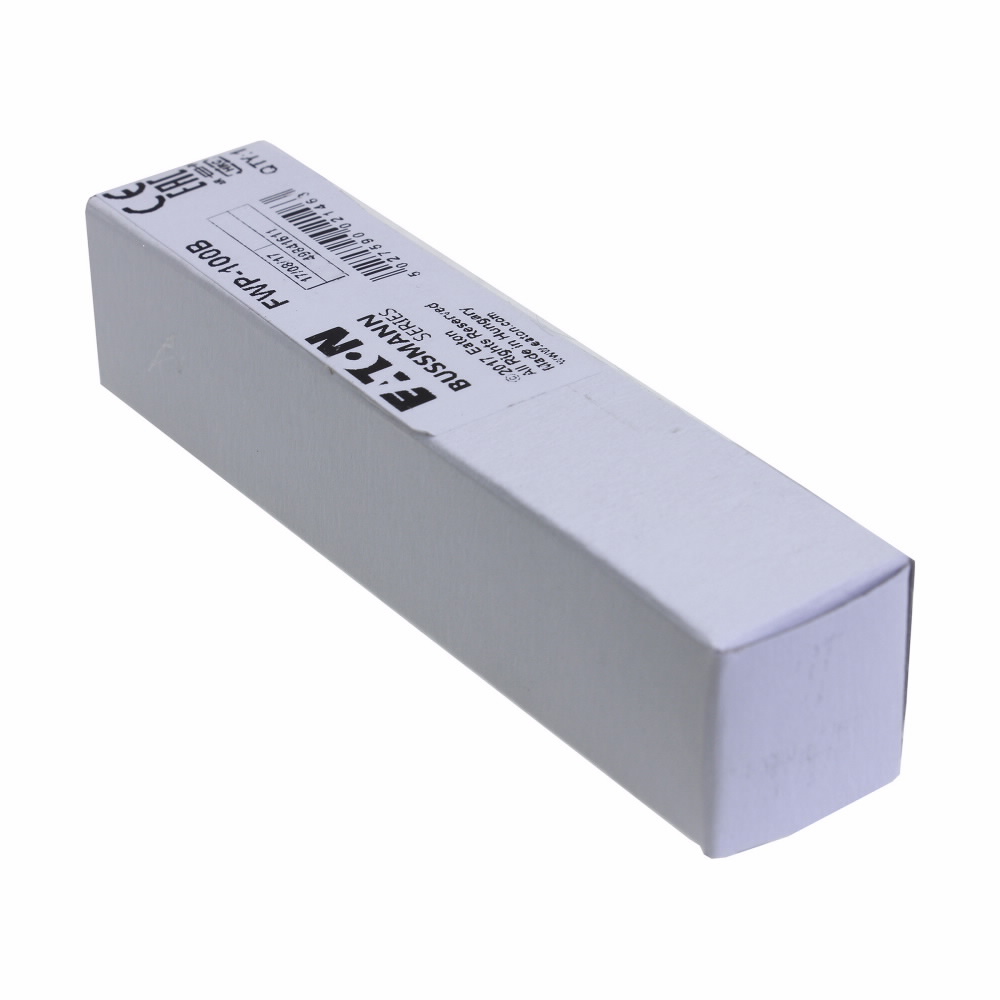

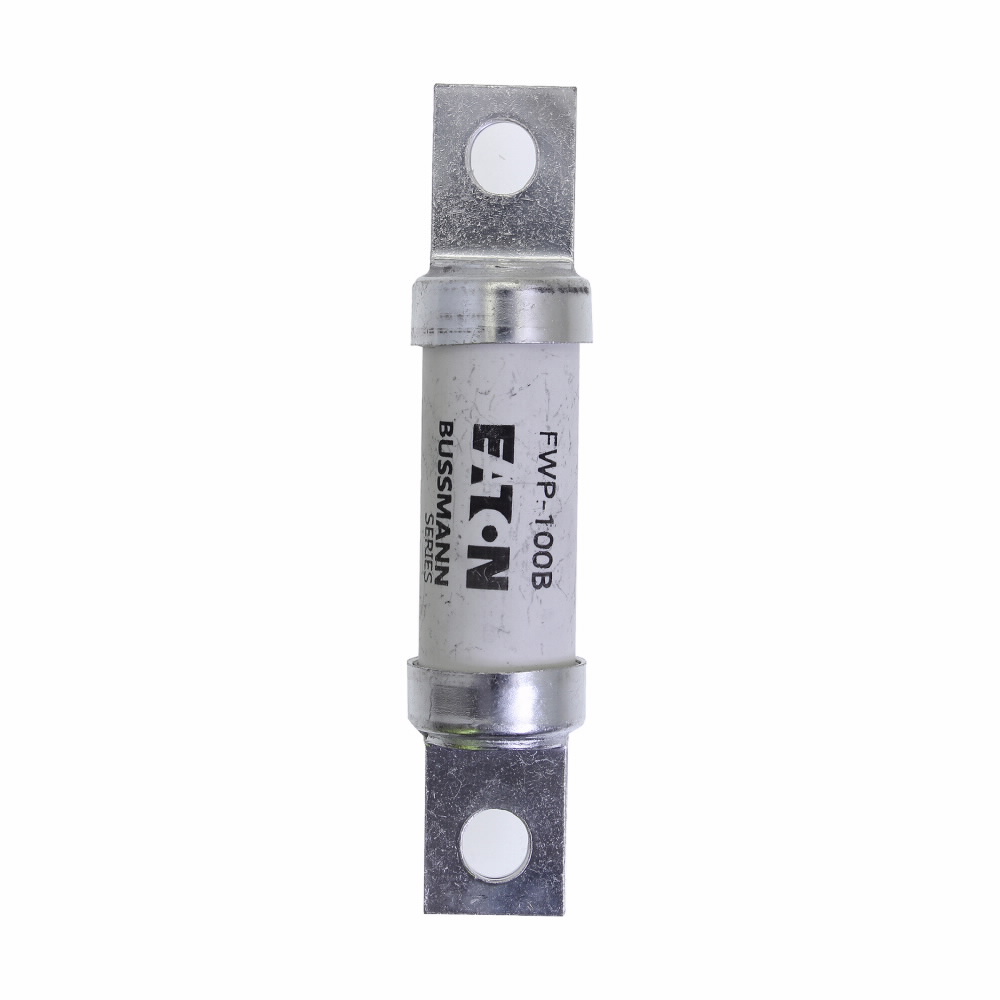

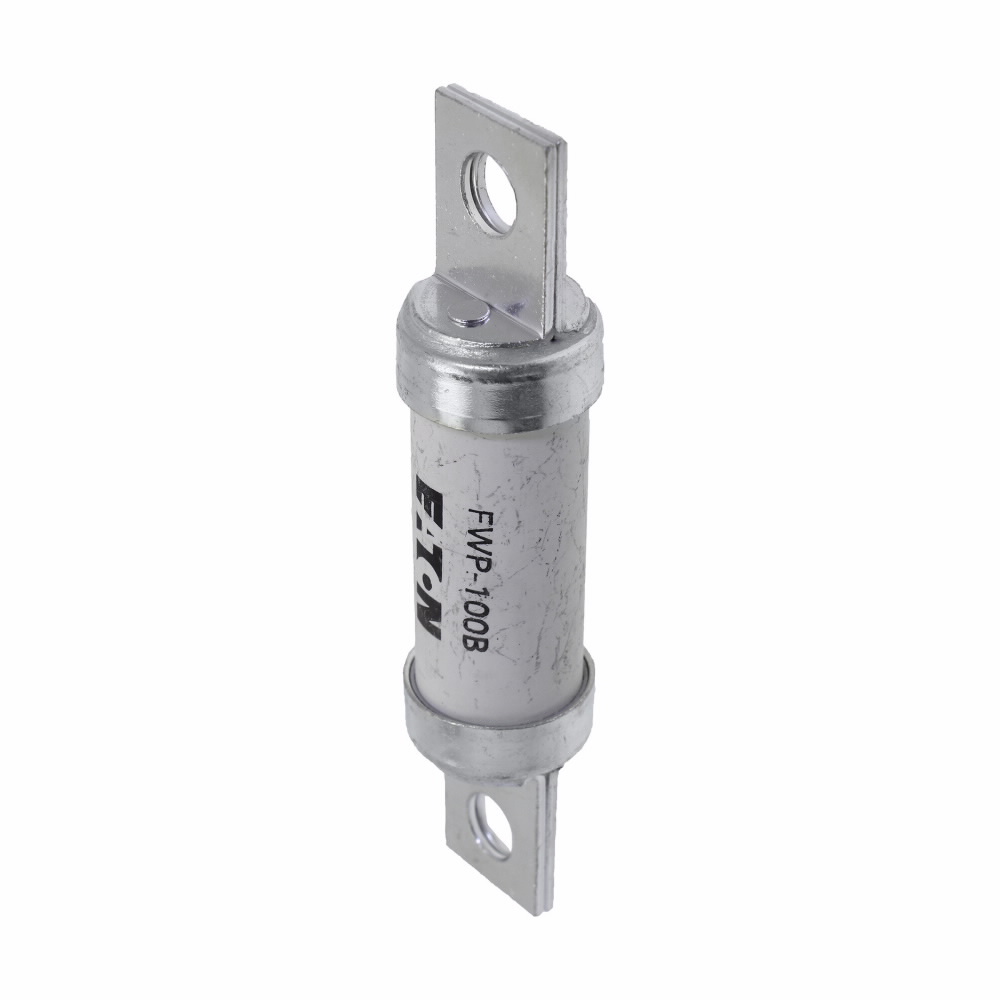

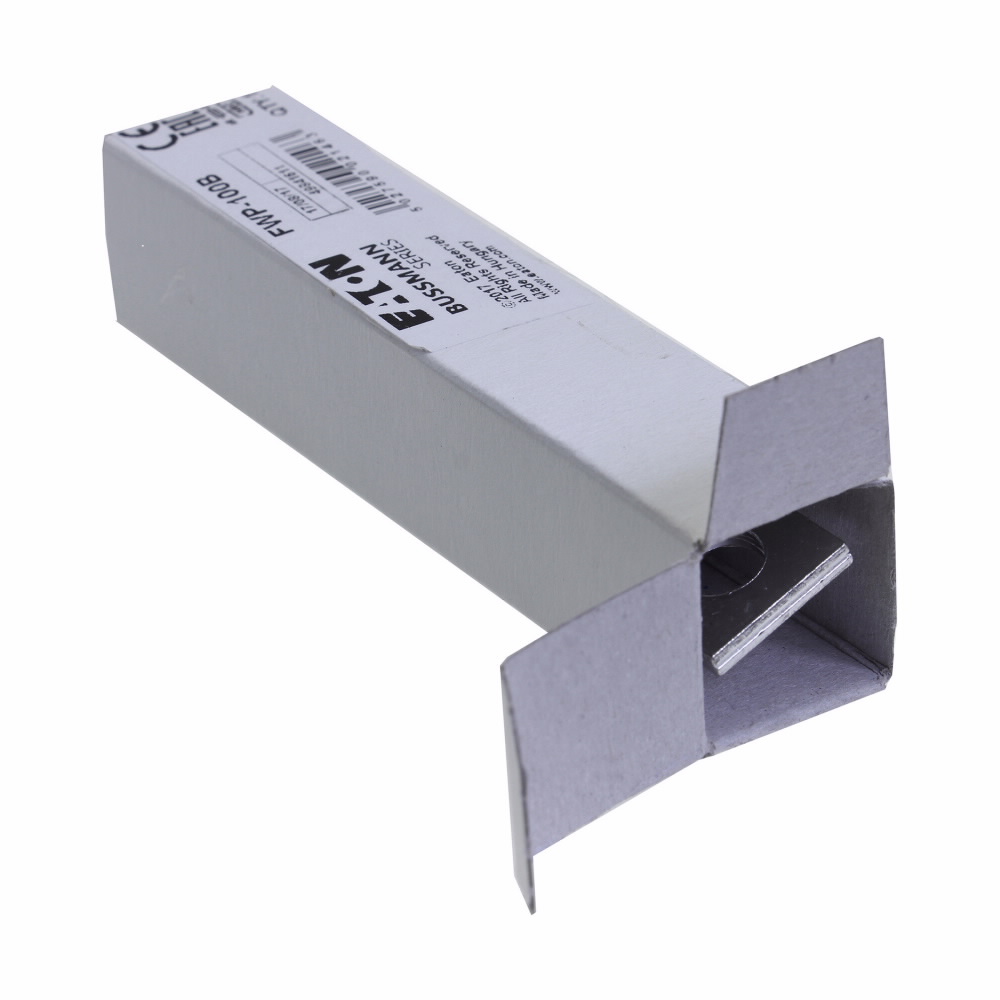

100AMP 700V AC SEMI-COND

Manufacturer: Bussman Cooper Fuses | Catalog # FWP-100B | Electrozad South Part # 6429
$315.19 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 690 Vac (IEC), 800 Vdc (5-50A), 100A, 200 kAIC Vac, 50 kAIC at 700 Vdc, None, High speed fuse, Blade end X blade end, Stud

Technical Information

Amperage
100 A
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Connection Type
Blade
End Type
Blade
Mounting Type
Stud
Size
0.947 In Diameter X 4.406 In Length
Standard
CSA,E2186,UL
TC Connection
Rod To Blade
Type
High-Leverage
Voltage
700 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712796040
Class
Class H/K
GTIN
00051712796040
Weight
109 g

Dimensions

Height
25 mm
Length
112 mm
Width
15 mm
