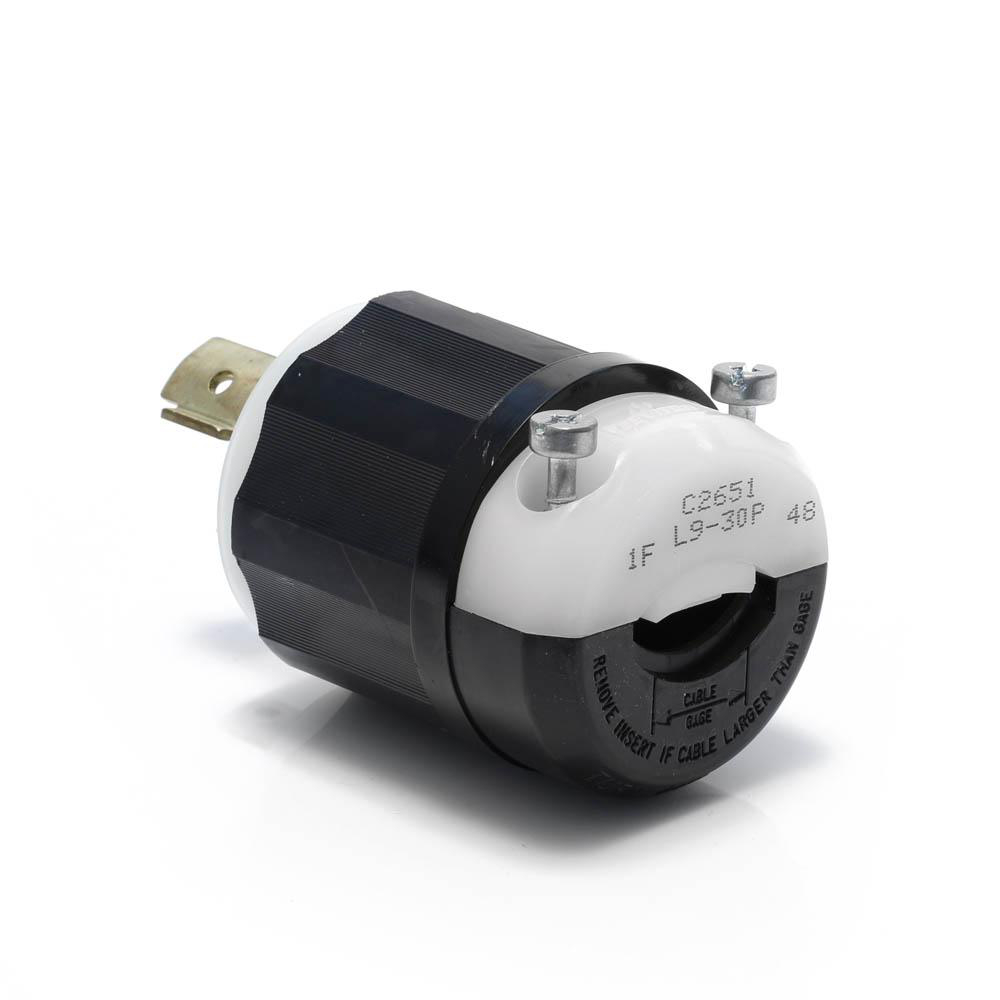

Plug locking 2P 3W 600V 30AMP black-white

Manufacturer: Leviton Manufacturing | Catalog # C2651 | Electrozad South Part # 6197
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

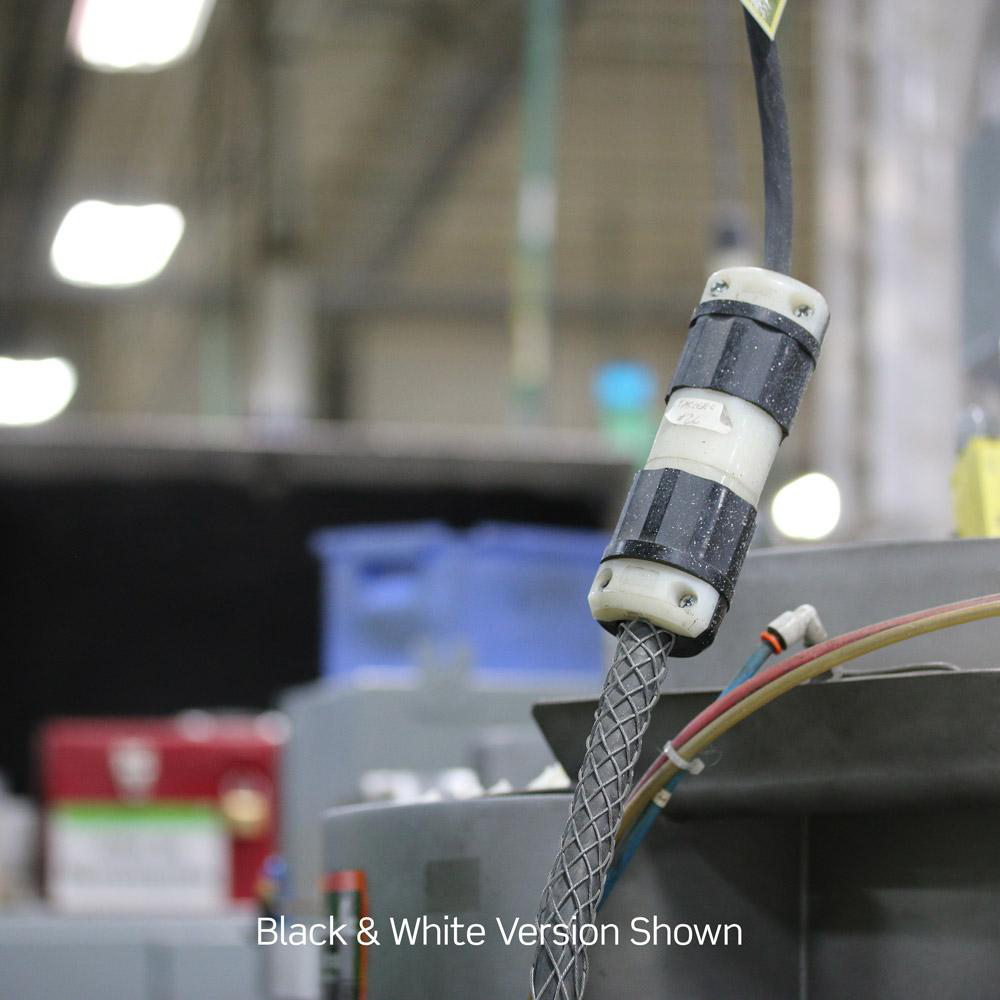

Leviton...s industry leading locking devices, such as our black and white line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Technical Information

Amperage
30 A
Applications
For Industrial Use
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO
Device Type
Locking Plug
Dielectric
2000 V
Dielectric Strength
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Yes
Material
Impact Modified Nylon, Zinc Plated Steel Screw
Mounting Type
Cable
NEMA
WD-1, WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Diameter X 2.47 L IN
Standard
ANSI C-73
TC Connection
Screw, 6 Terminals
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Plug
Voltage
600 V
Wire Count
3
Wire Size
16 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477807927
Color
Black,White
Environment
Dry
Environmental Conditions
-40 to 60 °C
GTIN
00078477807927

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
