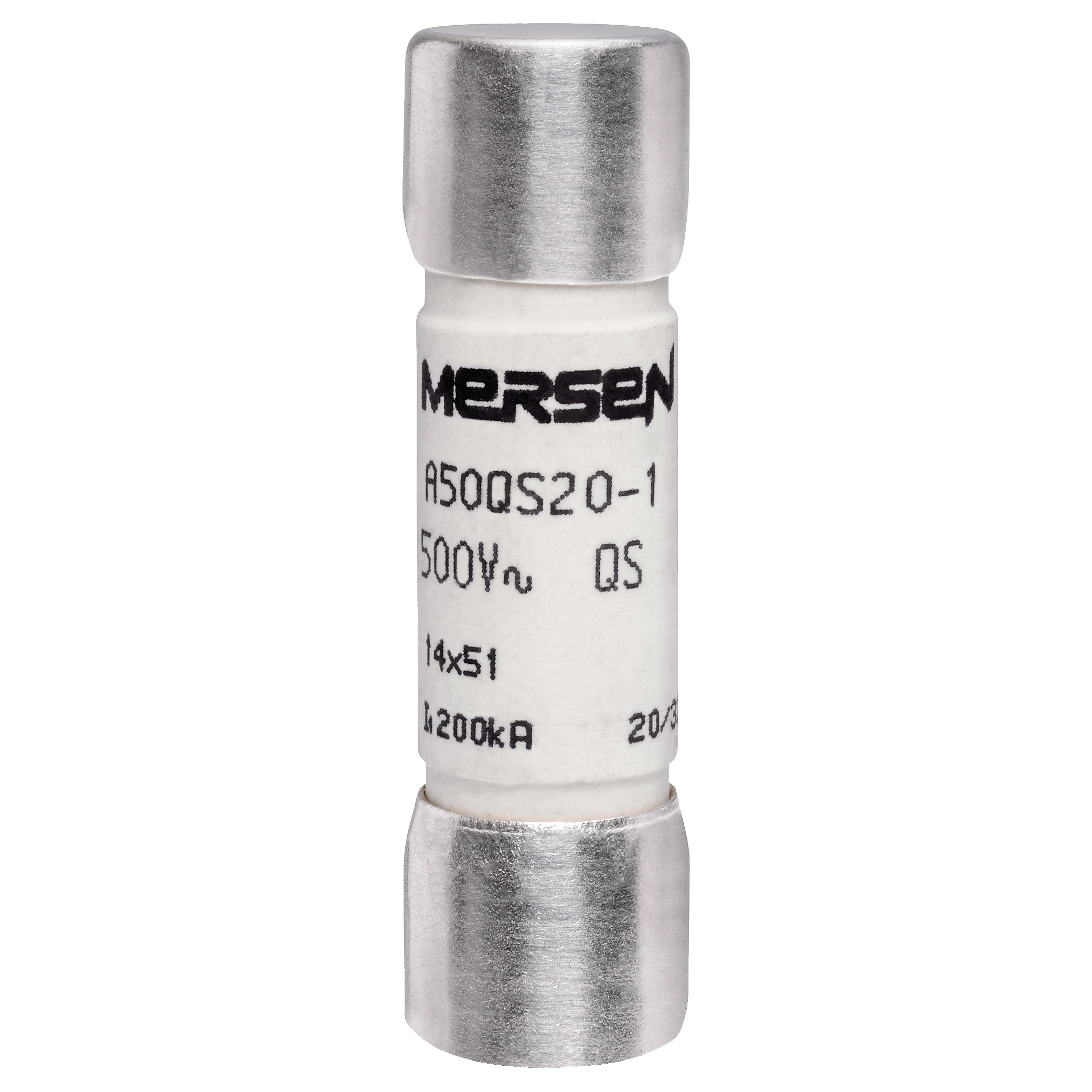

High Speed Fuse Amp-Trap® A50QS 500VAC 500VDC 20A Ferrule

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50QS20-1 | Electrozad South Part # 61047
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features ... lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today...s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.

Technical Information

Amperage
20 A
Applications
Protection of 500V or less motor drives, UPS, inverters, etc.
Connection Type
Ferrule
Frequency
50/60 Hz
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American Round Style
Voltage
500 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001142407
GTIN
70782001142406
Weight
0.04 lb

Dimensions

Diameter
0.56 in
Length
2.01 in

Certifications & Compliance

Country of Origin
Mexico
