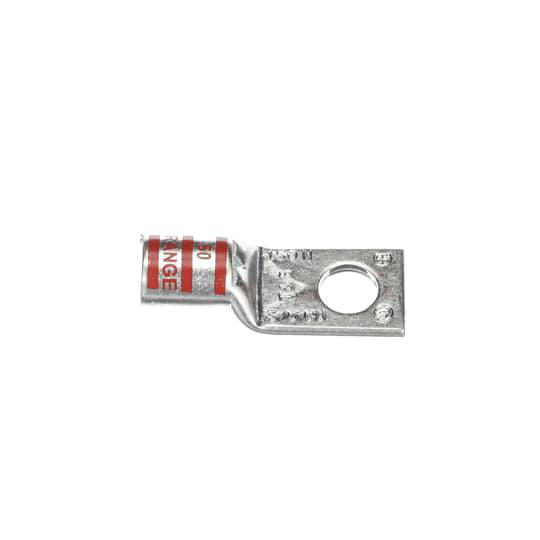

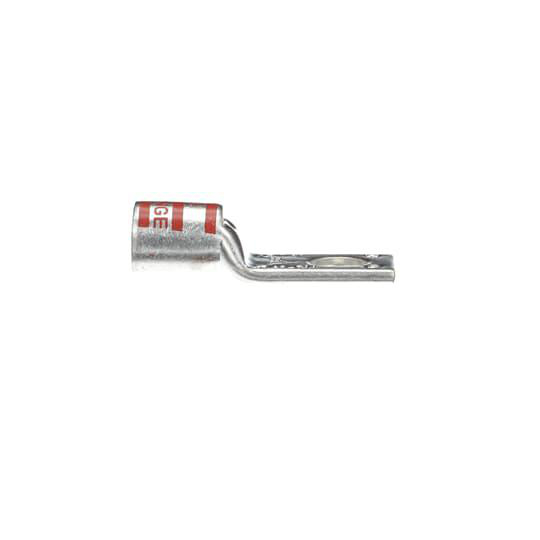

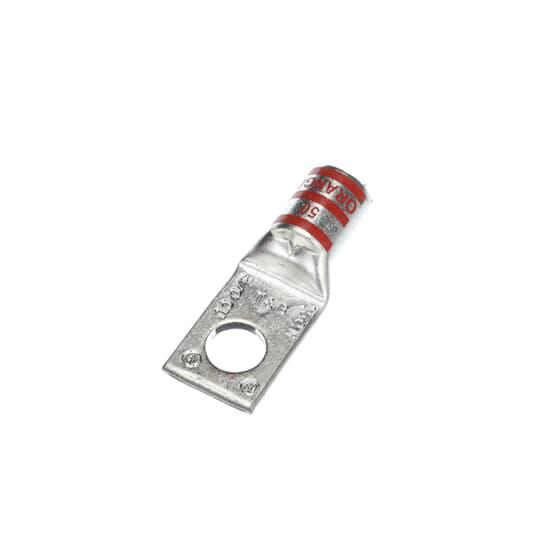

Product image for Lug 1hole std barrel cu orng 3/0AWG ColorKeyed
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Lug 1hole std barrel cu orng 3/0AWG ColorKeyed

Manufacturer: ABB | Thomas & Betts | Catalog # 54165-TB | Electrozad South Part # 585
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing
Color-Keyed® one hole lug with standard barrel is a compression connector for copper conductors. Made of high-conductivity wrought copper with electro-tin plate. 1/2 inch bolt is used and the lug is used for 600 V to 35 kV applications.

Technical Information

Barrel Type
Standard, Straight
Cable Size
3/0 AWG
Conductor Size
3/0 AWG
Insulated?
No
Material
Copper
Number of Holes
1
Number of Studs
1
Standard
UL E9809
Stud Size
1/2 in
Tongue Angle
Straight
Tongue Width
Standard
Type
Screwless, Standard

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210541655
Color
Orange
Finish
Tin Plated
GTIN
05414363110514
