200A 3W4P ARK PLG 1.875- 2.500 2 .75 CON

Manufacturer: Crouse Hinds | Catalog # AP204612 | Electrozad South Part # 55182
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual

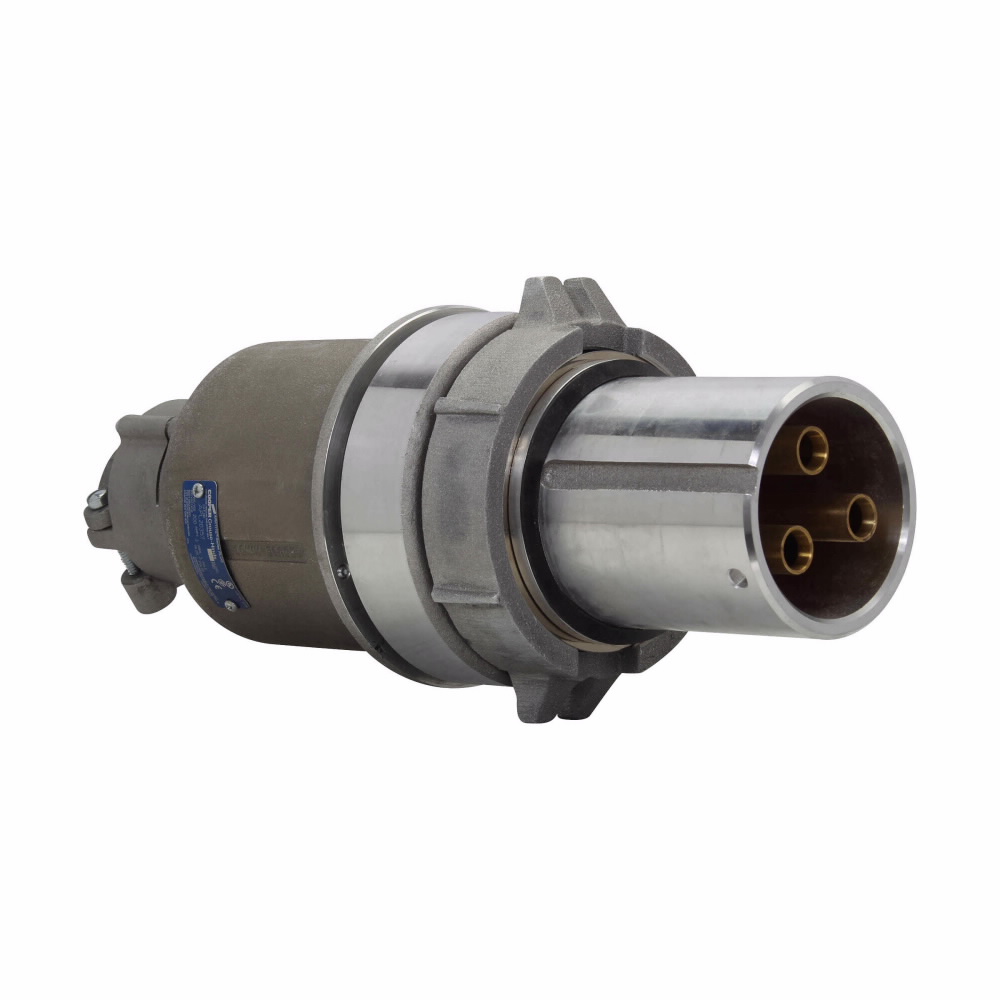

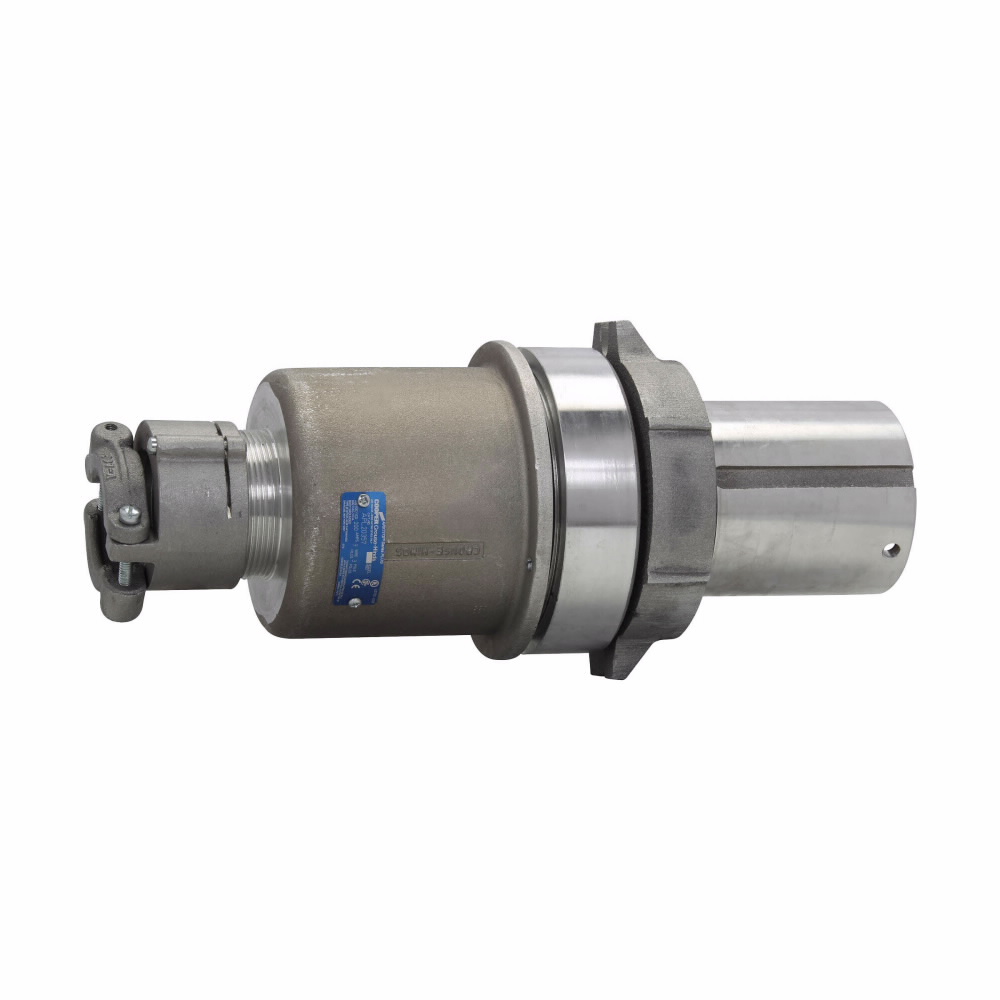

Eaton Crouse-Hinds series Arktite AP plug, 200A, 1.875-2.500", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Crimp/solder, 600 Vac/250 Vdc, 0.75" max

Technical Information

Amperage
200 A
Applications
Motor Generator Sets, Compressors, Heating and Cooling Units, Welders, Conveyors, Lighting Systems
Connection Type
Crimp/Solder
Cord Range
1.875 - 2.500 in
Cord Type
1.875 To 2.500 In Diameter
Frequency
50-400 Hz
Material
Copper-Free Aluminum
Number of Poles
4
Size
6-3/4 In Diameter X 14-3/4 In Length
Standard
CSA C22.2,UL 1010,UL 1682,UL 514
TC Connection
Crimp/Solder
Type
Mating,Pin And Sleeve
Voltage
250 V
Wire Size
#3/0-250 MCM

Manufacturer Information

Brand
Crouse-Hinds
Sub Brand
Arktite

General Product Info

12-Digit UPC
782274190983
GTIN
00782274190983
Weight
13.35 lb

Dimensions

Height
6.75 in
Length
14.75 in
Width
6.75 in
