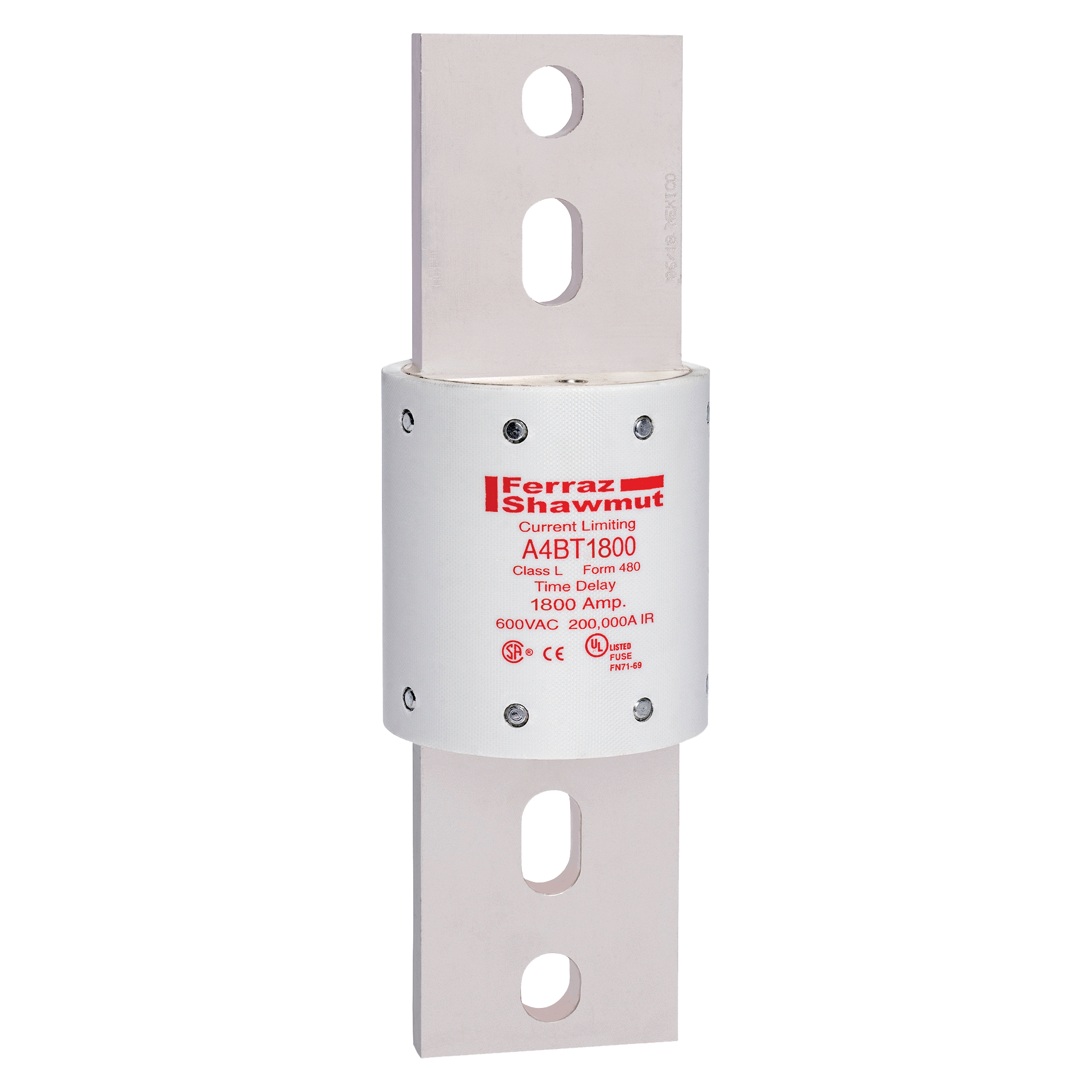

Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 1800A Blade Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4BT1800 | Electrozad South Part # 50449
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.

Technical Information

Amperage
1800 A
Applications
Motors Motor Controllers Transformers Mains Feeders
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class L
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolted
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001939977
Class
L
GTIN
10782001939974
Weight
8.13 lb

Dimensions

Diameter
3.5 in
Length
10.75 in
