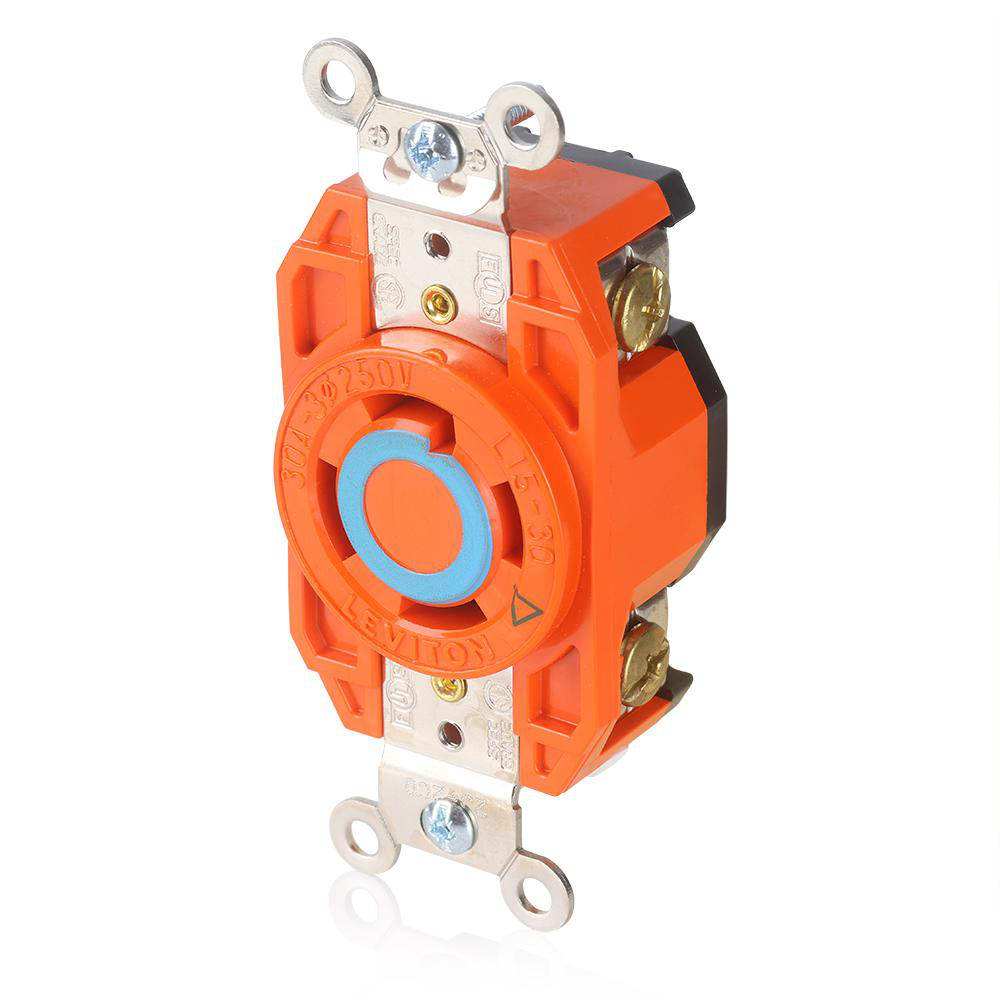

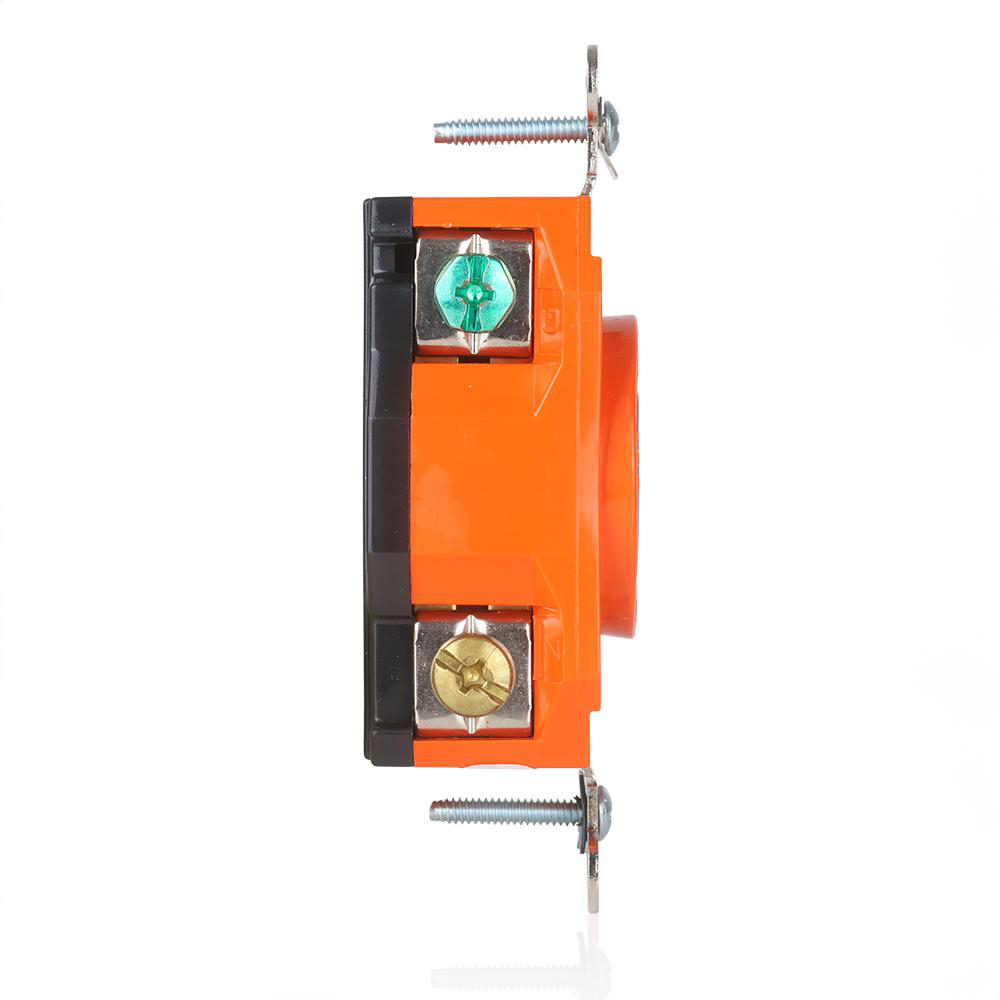

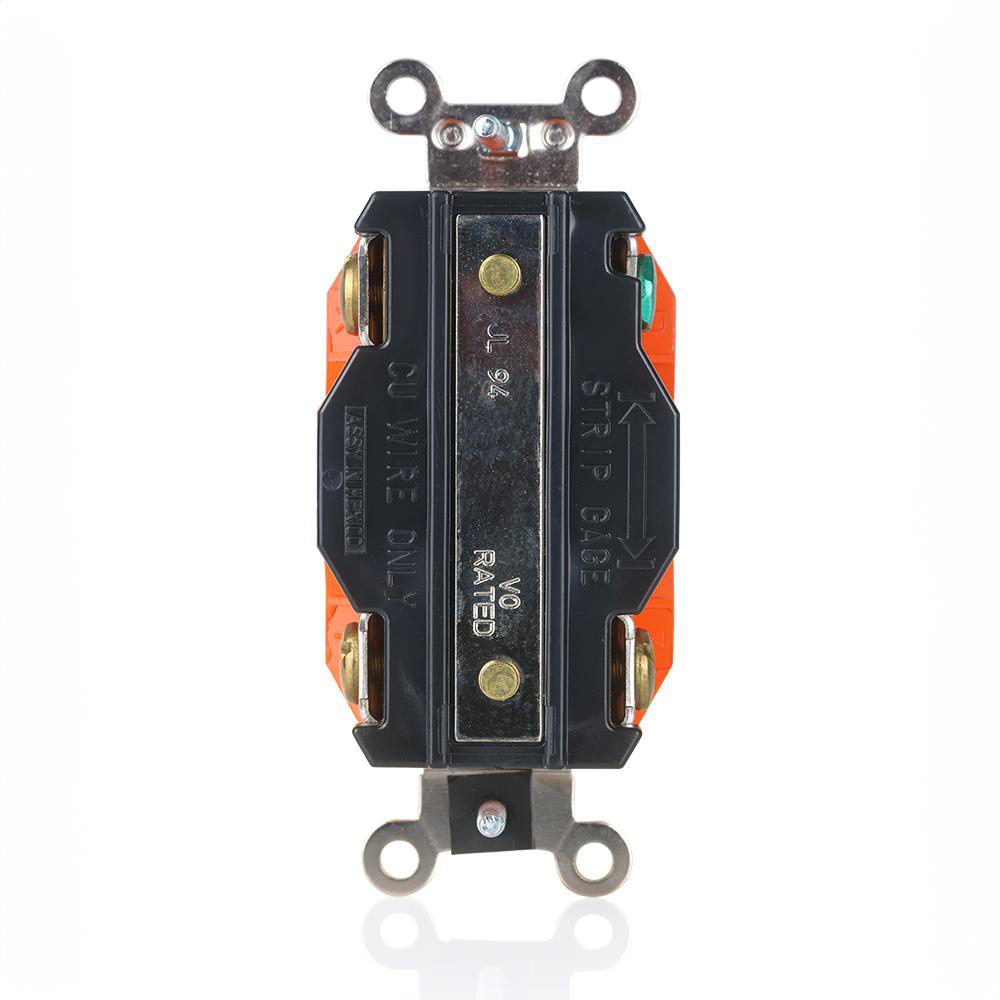

Receptacle L15-30R twlo iso 3P4W 30A 125/250V ora

Manufacturer: Leviton Manufacturing | Catalog # 2720-IG | Electrozad South Part # 49457
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - Orange Isolated ground.

Technical Information

Amperage
30 A
Applications
Commercial
Base Material
Valox,Valox
Body Material
Valox 357
Conductor Size
14-8 AWG
Connection Type
Back Wired,Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Valox
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Isolated Ground
Horsepower
3 hp
Insulation Material
Nickel-Plated Brass
Material
PBT, Valox Base/Cover/Face
Mounting Type
Box, Flush
NEMA
L15-30R
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
250 V
Wattage
3 hp
Wire Count
4
Wire Size
14 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477809648
Color
Orange
Environment
Corrosive
Environmental Conditions
UL 94 V-0 Flammability, Corrosive Environment
GTIN
00078477809648

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
