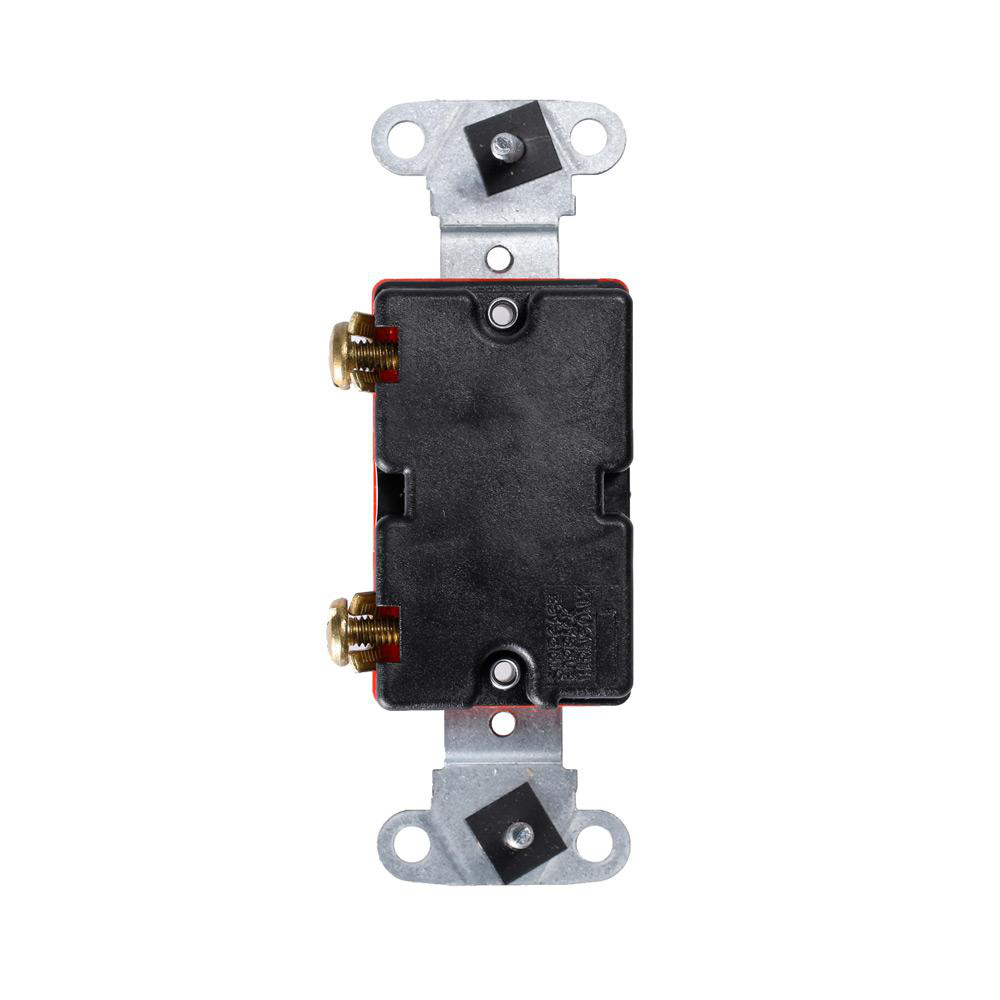

Switch toggle industrial 1P 347V 20A red

Manufacturer: Leviton Manufacturing | Catalog # 18221-R | Electrozad South Part # 49183
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing
Fully enclosed switch mechanism in rugged thermoplastic housing for strength, tracking and arc resistance. Thermoplastic toggle has high-impact strength and withstands elevated operating temperatures. Heavy gauge, anticorrosive mounting strap with steel grounding screw self-grounding clip. Large silver-cadmium oxide contacts for long life, prevent sticking, welding and excessive pitting.

Technical Information

Action
Off
Actuator
Cam, Rocker/button
Applications
Industrial
Contact Material
Silver Cadmium-Oxide
Contact Rating
1 (120V);2 (240V to 277V to 347V) HP
Grade
Industrial
Material
Thermoplastic, Brass and Steel Screw, Steel Strap, Silver Cadmium-Oxide Contact
Number of Poles
1
Operating Cycles
50000
Operating Temperature
-40 to +65 DEG C
Size
46 H x 1.31 W x 13 D IN
TC Connection
Back & Side Wired
Type
Single Pole Toggle AC Switch

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477240199
Color
Red
GTIN
00078477240199
