3M™ 5322 Motor Lead Pigtail Splice Kit

Manufacturer: 3M | Catalog # 5322 | Electrozad South Part # 48743
$862.93 /ea
kt
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing

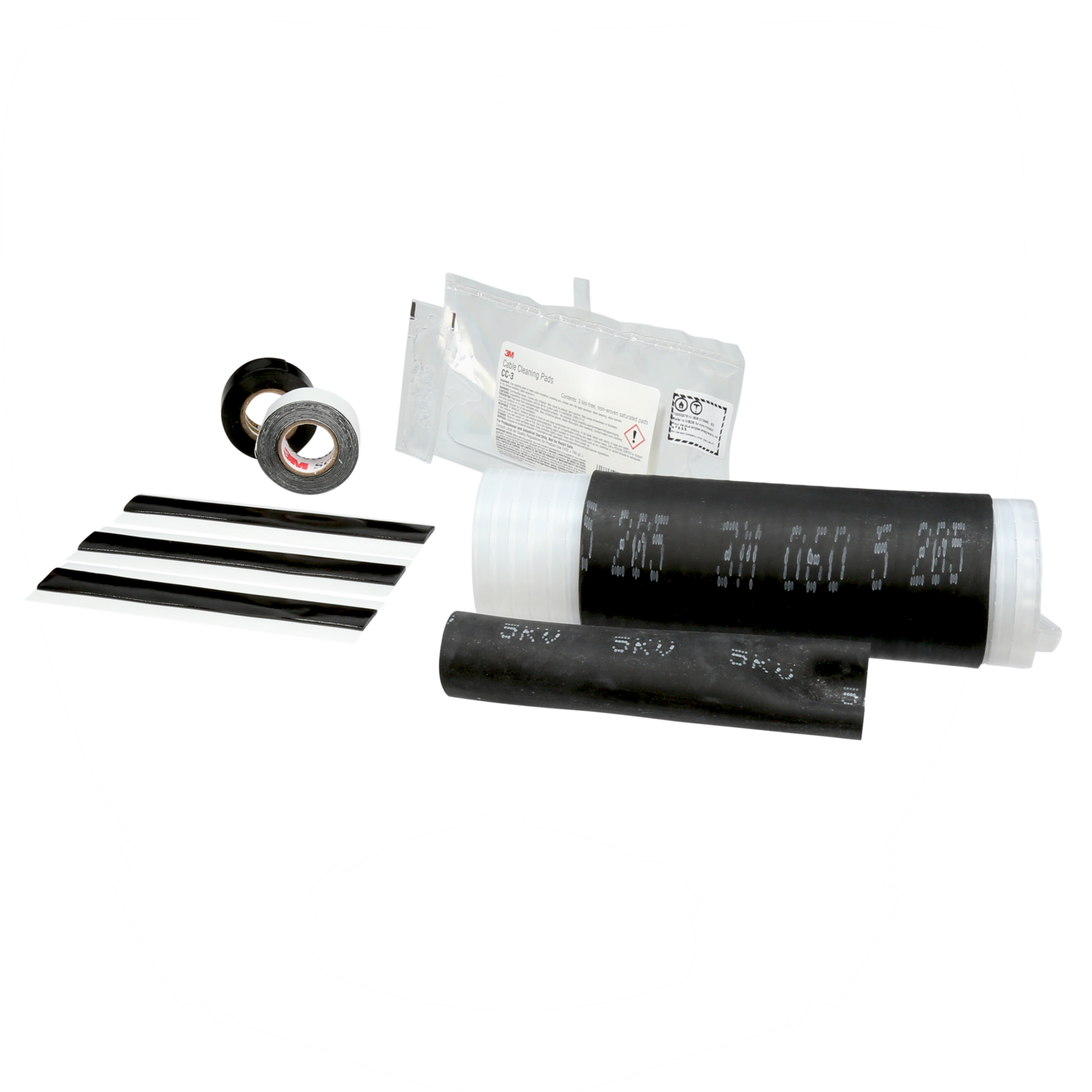

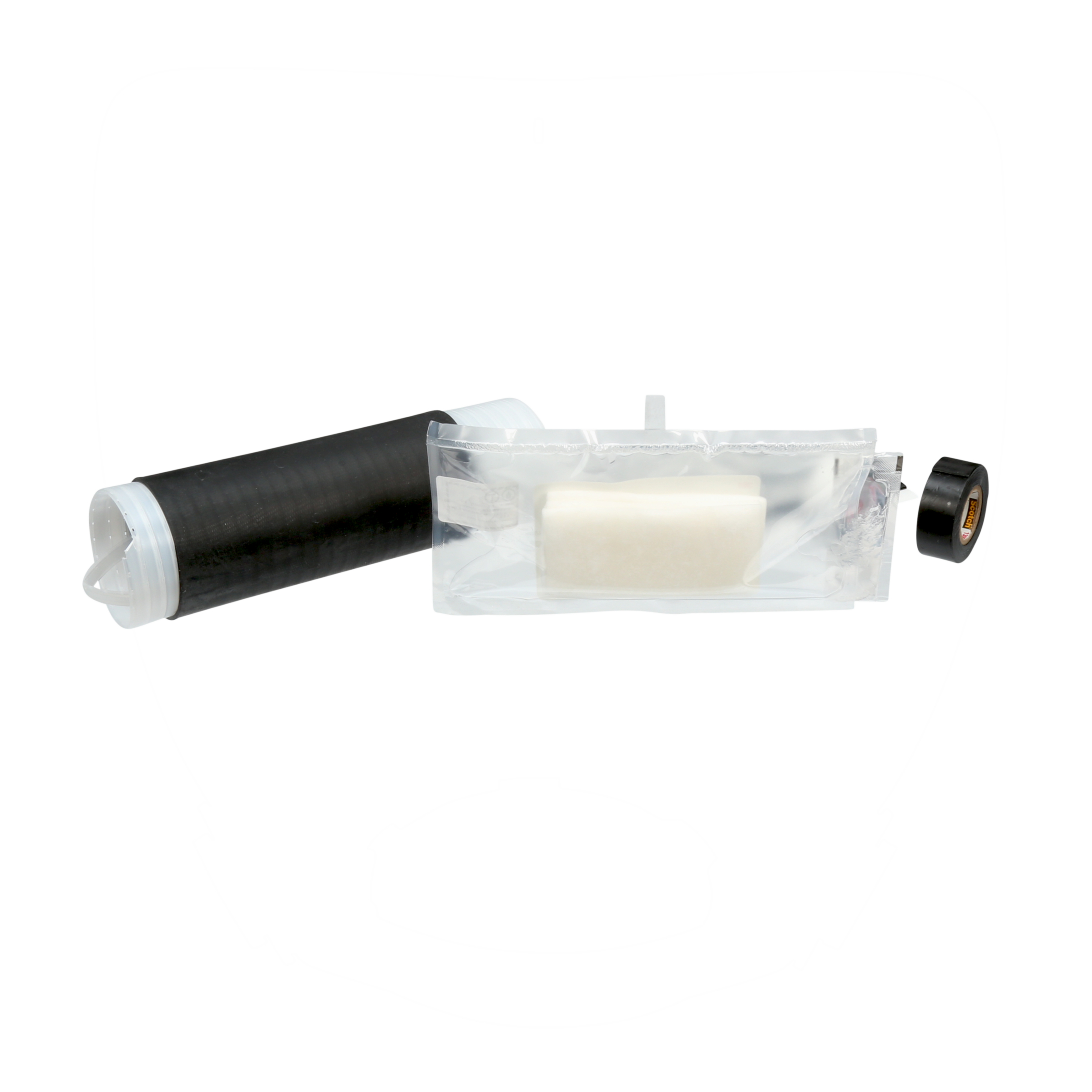

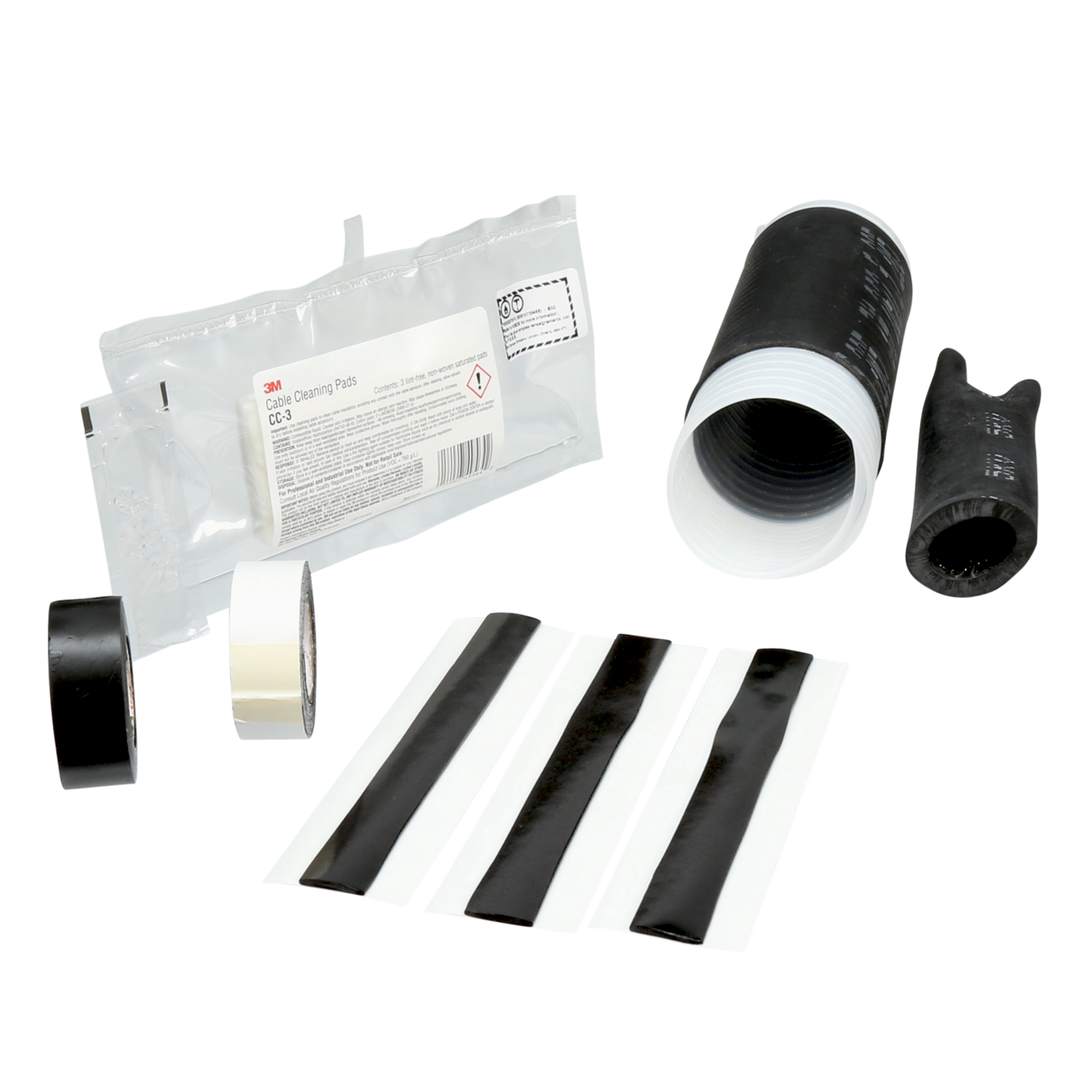

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 8-4 AWG (10-16 sq mm), motor lead 10-4 AWG (6-16 sq mm).

Technical Information

Applications
For Splicing Polyethylene/Cross Linked Cable, Ethylene Propylene Rubber Cable, Copper Conductors
Conductor Size
2-1/0 AWG Feeder, 4-1/0 AWG Motor Lead
Connection Type
Pigtail
Material
EPDM
Temperature Rating
90 degrees C
Voltage
5/8 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007122722
Color
Black
GTIN
00054007122722
Product UPC
05400712272

Dimensions

Length
8 - 9 in
