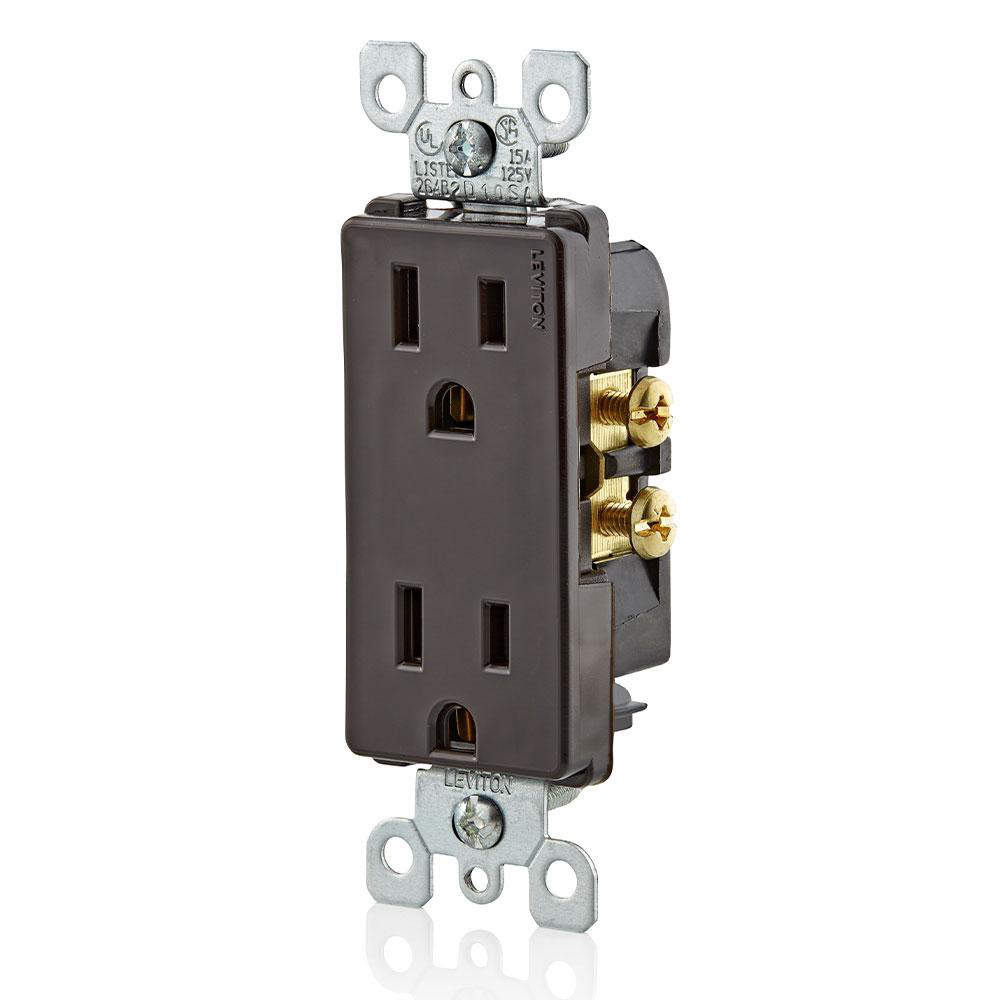

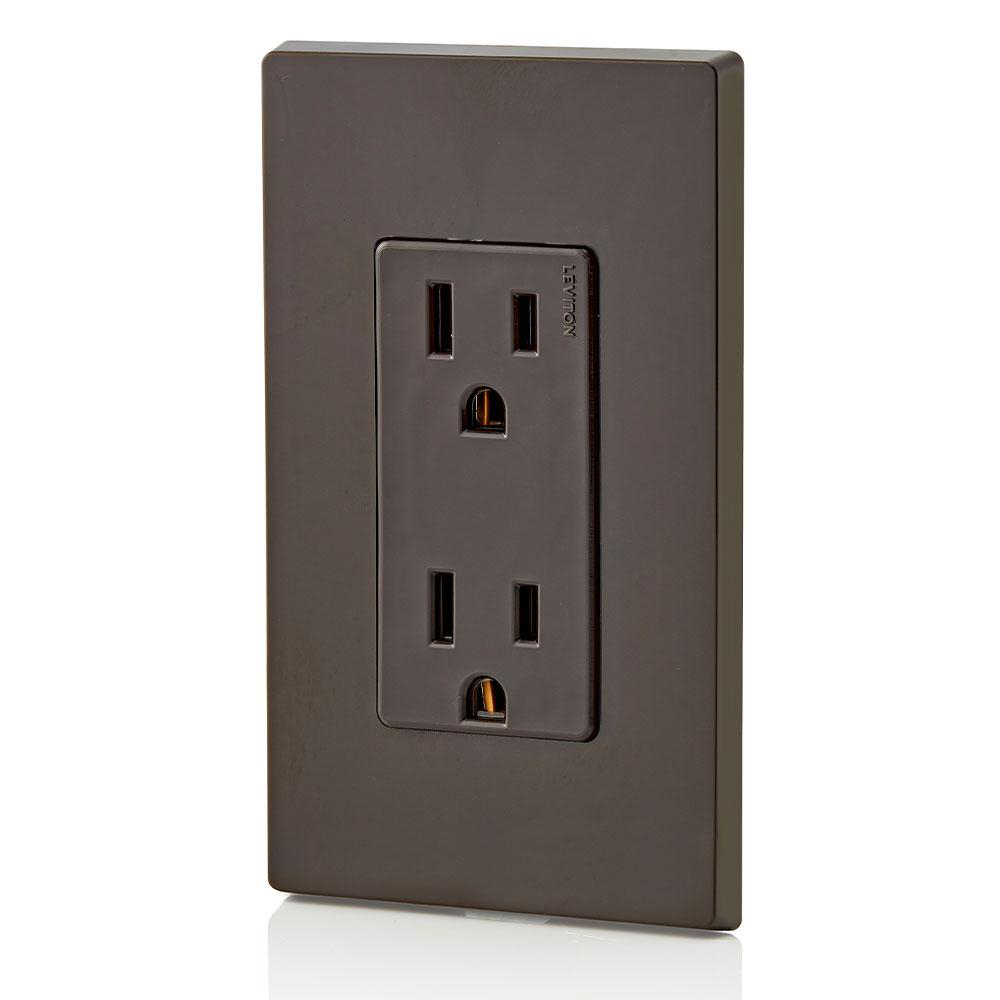

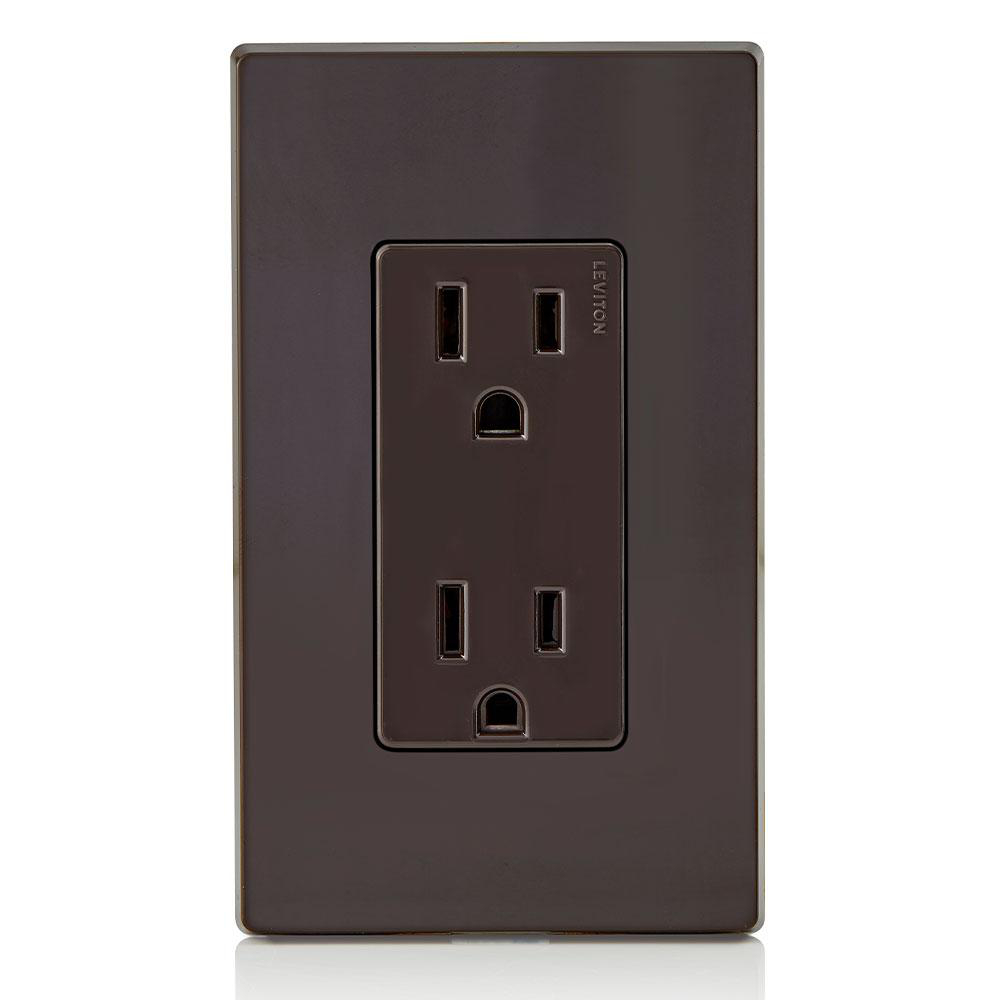

Receptacle dupx thrmplst 2P3W 125V 15A brown

Manufacturer: Leviton Manufacturing | Catalog # 5325 | Electrozad South Part # 4720
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Decora® comprehensive residential grade receptacles designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Thermoplastic
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Face Material
Thermoplastic
Grade
Commercial
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Wallplate, Flush
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
4.20 H x 1.31 W x 0.98 D IN
Standard
CSA,UL
TC Connection
Quickwired, Side Wire
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Outlet
Voltage
125 V
Wire Count
3,3
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477233108
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477233108

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Please Contact Customer Service
