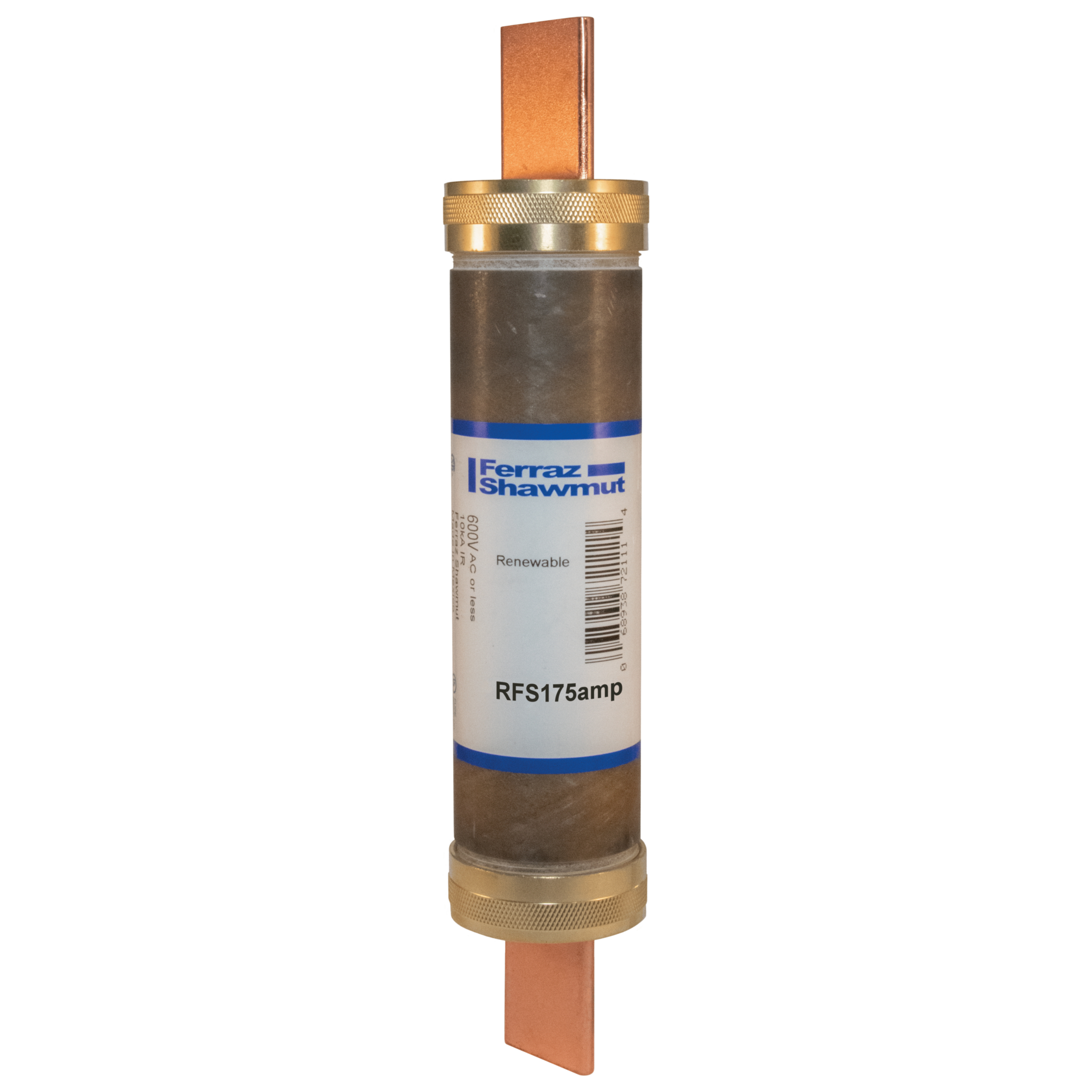

Fuse RFS - Class H - Fast-Acting 600VAC 175A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # RFS175 | Electrozad South Part # 4623
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
RFS general purpose Class H renewable fuses are suitable for application where available short-circuit currents do not exceed 10,000 amperes. For replacement fuse links select RLS series die-cut zinc replacement links from 3 to 600 amperes in 30 ratings.

Technical Information

Amperage
3-600 A
Applications
General purpose loads where short-circuit currents are 10,000 amperes or less
Body Material
FWGE
Connection Type
Blade
Contact Material
Brass
Frequency
50/60 Hz
Interrupt Rating
10 kA
TC Connection
Blade
Terminal Material
Brass
Type
North American Power Fuses
Voltage
600 V

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
068938721176
Class
H
GTIN
10068938721173
Weight
1.42 lb

Dimensions

Length
9.63 in
