PUSH-IN 12AWG 6-PORT, 100 JAR

Manufacturer: Ideal Industries | Catalog # 30-088J | Electrozad South Part # 4564

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

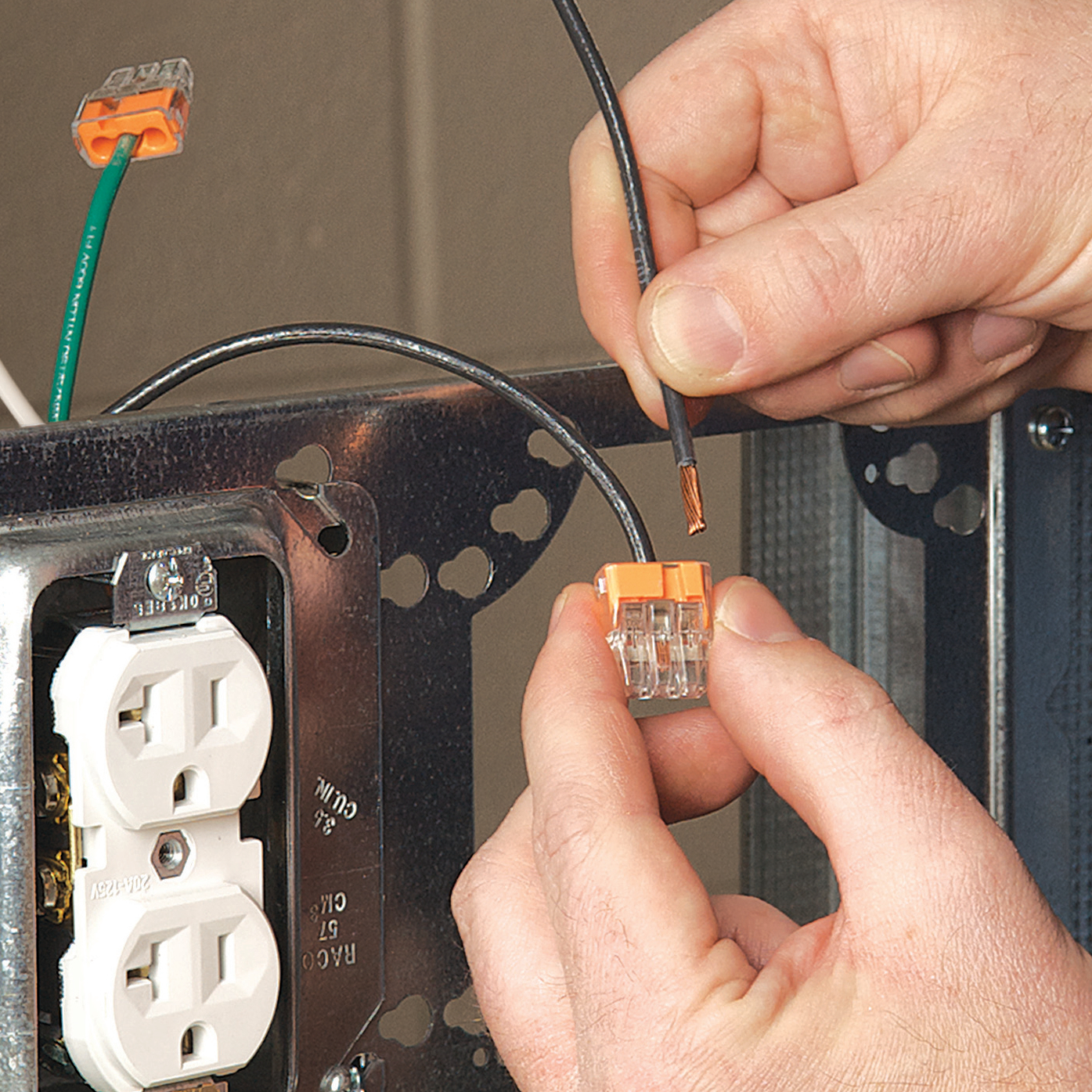

Strip, push, connect ... the fastest way to make a connection.The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in ... the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V ... the In-Sure® saves time and improves productivity while perfecting connections.

Technical Information

Applications
For Grounding And Bonding Applications
Size
0.607 IN Length X 0.603 IN Width X 0.729 IN Height
TC Connection
6 Stacked Ports
Temperature Rating
105 C
Type
Push-In
Wire Size
#12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded)
Wire Type
Solid, Stranded, Stranded (Tin Bonded)

Manufacturer Information

Brand
Ideal
Sub Brand
In-Sure

General Product Info

12-Digit UPC
783250460823
Color
Blue
GTIN
00783250460823
