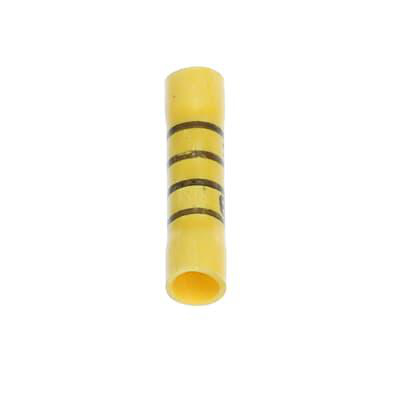

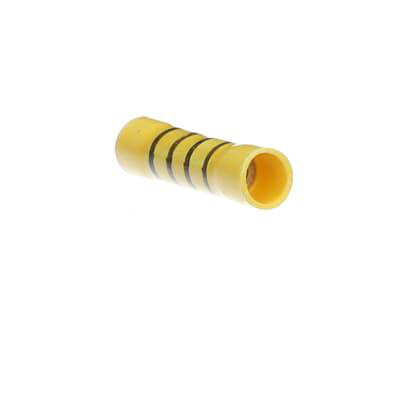

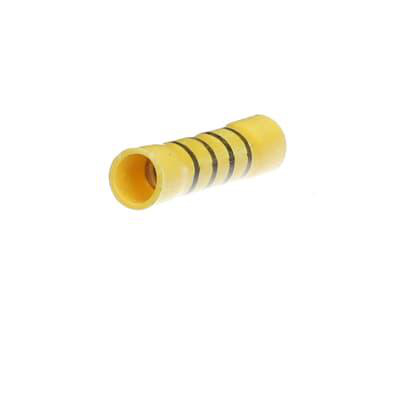

Butt splice copper metallic 12-10AWG 1.31x0.31in

Manufacturer: ABB | Thomas & Betts | Catalog # 2RC10X | Electrozad South Part # 45540
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Butt splice, vinyl-insulated with copper construction. Wires are laid side in the connector and the connection is made in one crimp.

Technical Information

Conductor Size
12-10 AWG
Contact Material
Copper
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Temperature Rating
105 degrees C
Type
Expanded
Voltage
600 V

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210807218
Color
Yellow
Finish
Electro-Tin Plated
GTIN
05414363140610
