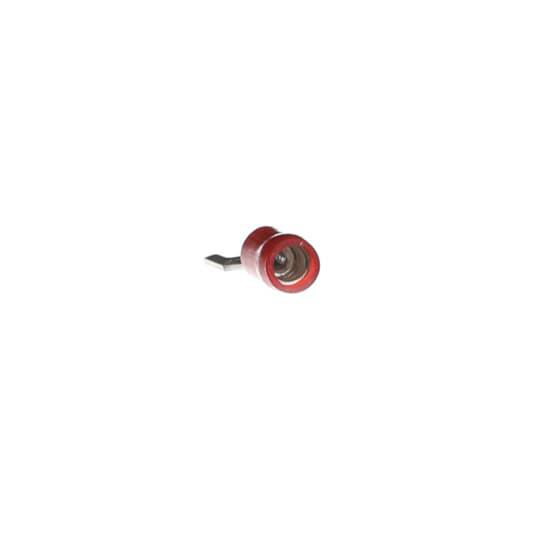

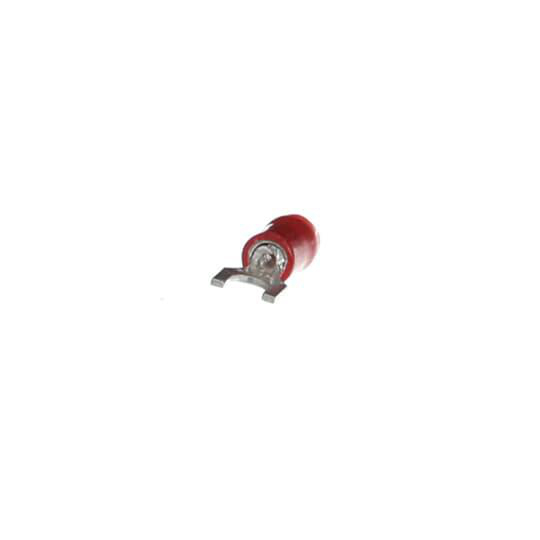

Product image for Terminal fork nylon 22-16AWG #6 red Sta-Kon
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Terminal fork nylon 22-16AWG #6 red Sta-Kon

Manufacturer: ABB | Thomas & Betts | Catalog # RA18-6F | Electrozad South Part # 44914
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Sta-Kon® nylon insulated fork easy installation because the mounting screw does not have to be completely removed. Brazed-seam barrel is serrated for high pull-out value. Terminal is high-conductivity electrolytic copper, electro-tin plated.

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 V
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803869
Color
Red
Finish
Electro Tin-Plated
GTIN
05414363934219

Dimensions

Height
3 in
Thickness
.03 in
Width
1.1 in
