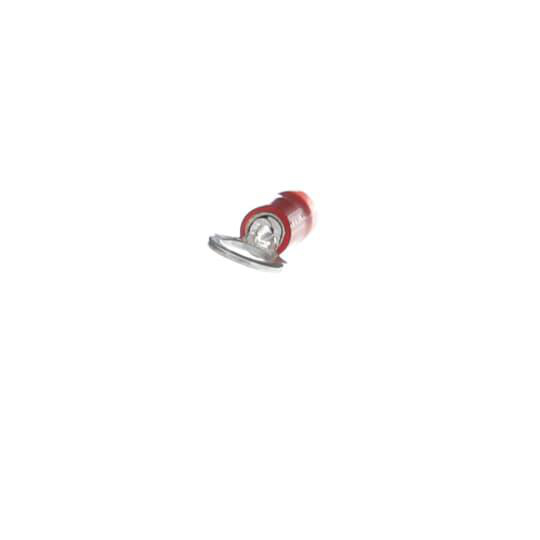

Image thumbnail 1

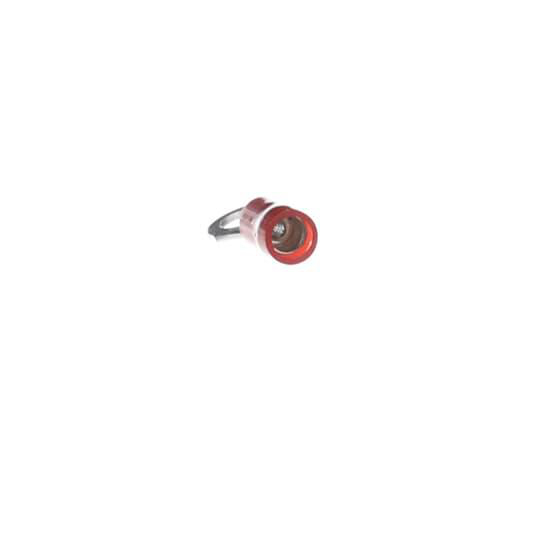

Image thumbnail 2
To:
CC:

Terminal ring copper mtlc 22-16AWG Sta-Kon

Manufacturer: ABB | Thomas & Betts | Catalog # RA18-10 | Electrozad South Part # 44485
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Sta-Kon® non-insulated ring terminal which is constructed of electrolytic copper for high conductivity. It can be installed with crimping tools having a single indentor or double indentor. Wire range identification on the tongue of each terminal.

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 V
Wire Size
22 - 16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803913
Color
Red
Finish
Electro Tin-Plated
GTIN
05414363131908

Dimensions

Height
3 in
Thickness
.03 in
Width
1.1 in
