Connector wire push-in grey 150/jar In-Sure

Manufacturer: Ideal Industries | Catalog # 30-087J | Electrozad South Part # 4400
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure G USERS MANUAL URL

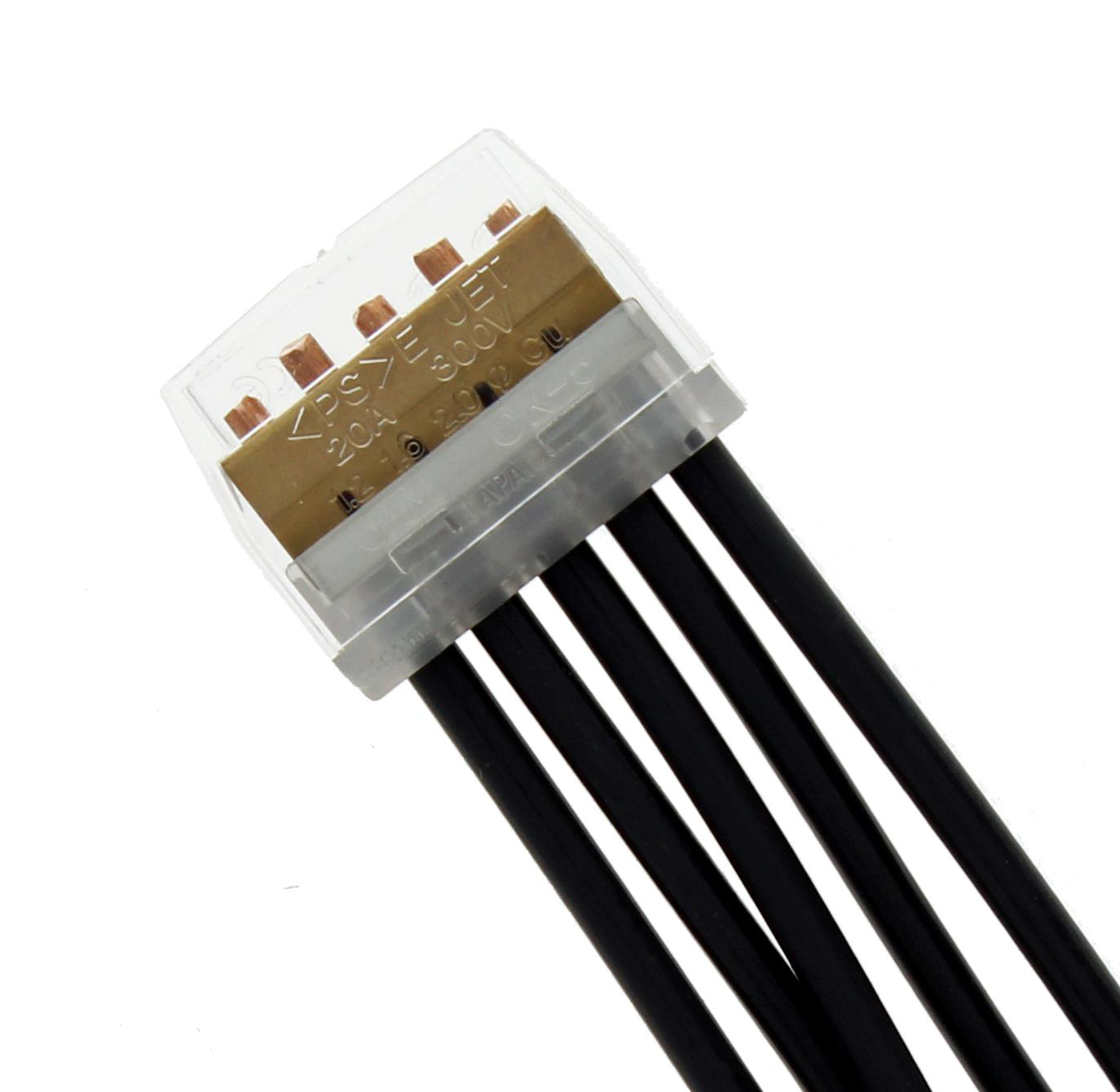

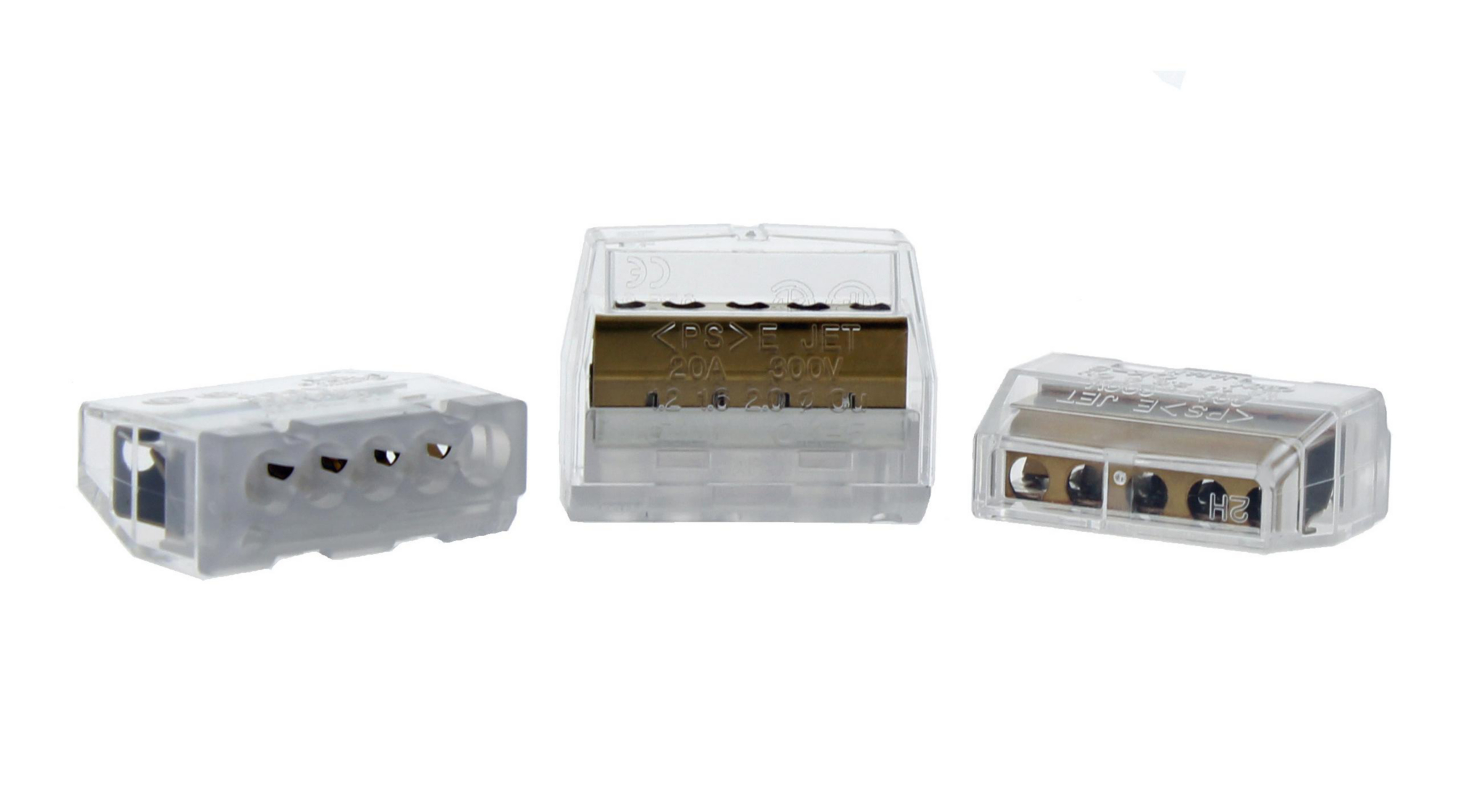

In-Sure™ push-in wire connector. No-twist connection reduces repetitive motion fatigue. Low insertion force for fast and easy connections. Compact size makes installation easy. Clear shell gives visual verification of connection.

Technical Information

Applications
For Residential, Light Commercial, Lighting Retrofit and Pre-Fab Wiring Systems
Conductor Size
20-12 AWG Solid, 16-14 AWG (19 Strand or Less), 18 AWG (7 Strand or Less) Stranded, 14-12 AWG (19 Strand or Less), 16 AWG (26 Strand or Less), 318 AWG (16 Strand or Less) Stranded Tin-Bonded
Connection Type
Push-In
Material
Polycarbonate
Number of Ports
5
Size
0.355 IN Length X 0.907 IN Width X 0.729 IN Height
Standard
486C/467 UL Listed,CSA C22.2 #188,RoHS
TC Connection
5 Ports
Temperature Rating
105 degrees C
Type
Push-In
Voltage
1000 V
Wire Size
12 AWG
Wire Type
Solid, Stranded, Stranded (Tin Bonded)

Manufacturer Information

Brand
Ideal
Sub Brand
In-Sure™

General Product Info

12-Digit UPC
783250460779
Color
Gray
Finish
Tin Plated
GTIN
00783250460779

Dimensions

Length
0.355 in
