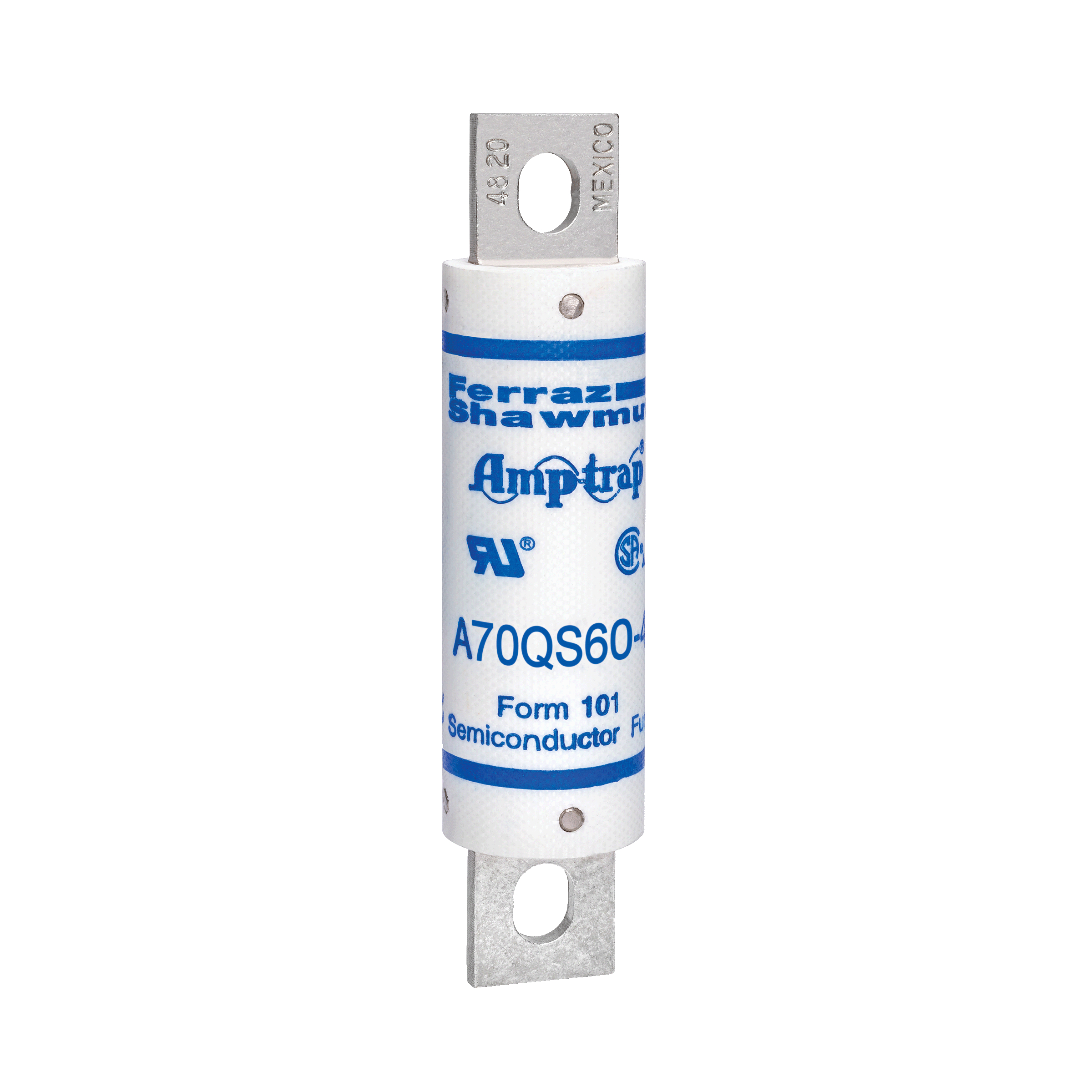

High Speed Fuse Amp-Trap® A70QS 700VAC 700VDC 60A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70QS60-4 | Electrozad South Part # 43892
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.

Technical Information

Amperage
60 A
Applications
Protection of Motor Drives, UPS, Inverters at 700 V or Less
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
700 V
Rated Voltage DC
700 V
TC Connection
Bolted
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
North American Round Style
Voltage
700 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001948634
GTIN
30782001948635
Weight
0.51 lb

Dimensions

Diameter
1 in
Length
4.38 in

Certifications & Compliance

Country of Origin
Mexico
