LEV Series IEC Pin & Sleeve Connector

Manufacturer: Leviton Manufacturing | Catalog # 4100C5WLEV | Electrozad South Part # 425558
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure

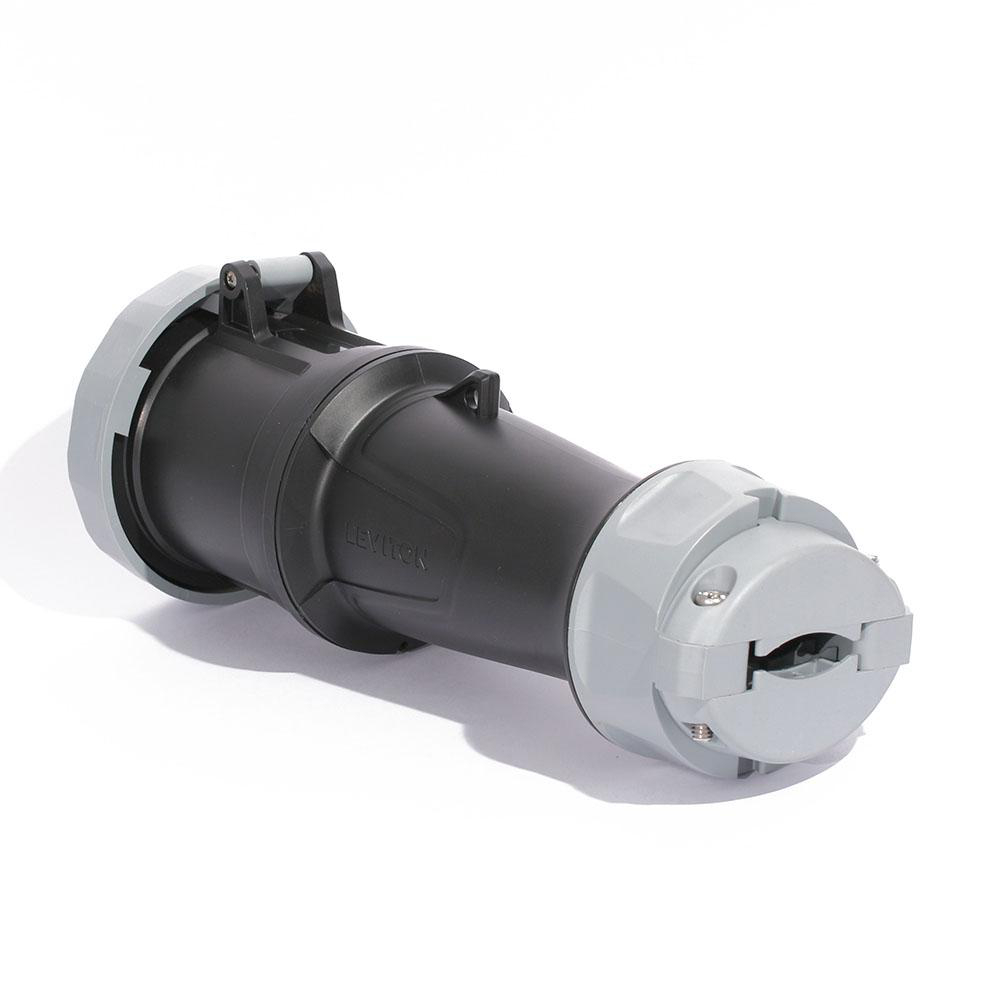

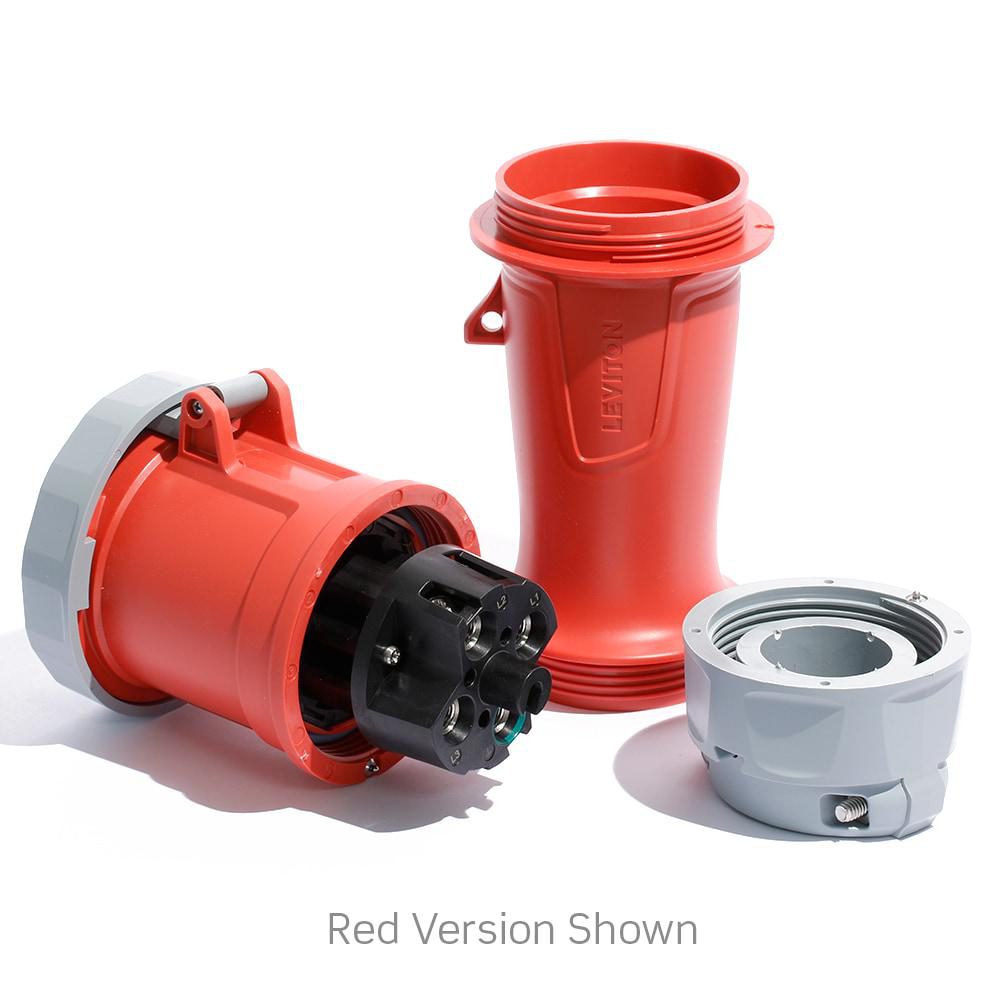

100 Amp, 600 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Black

Technical Information

Amperage
100 A
Device Type
Connector
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Horsepower
30 hp
Max Voltage
600 V
Number of Poles
3
Number of Wires
4
Operating Temperature
-35 degrees C
Temperature Rise
30 degrees C

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477251812
Color
Black
GTIN
60078477251814
Housing Material
Impact Modified Nylon

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
Mexico
