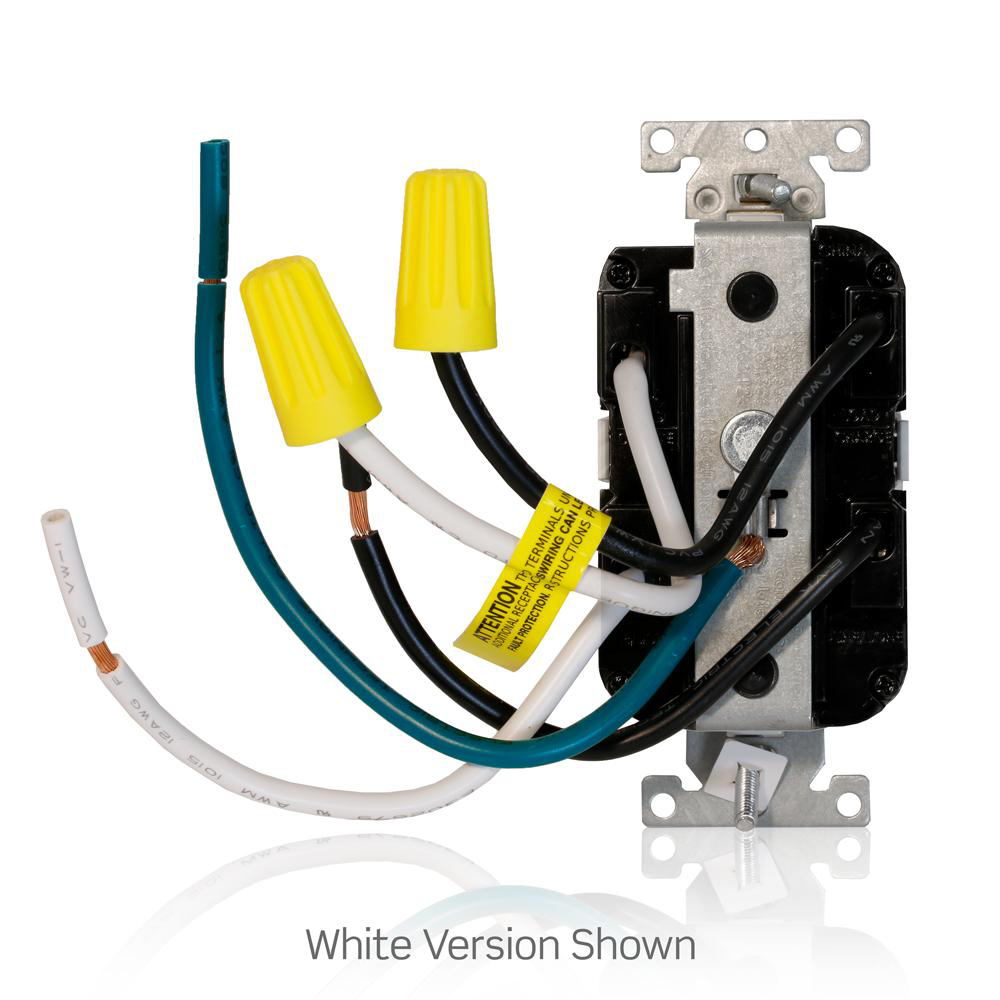

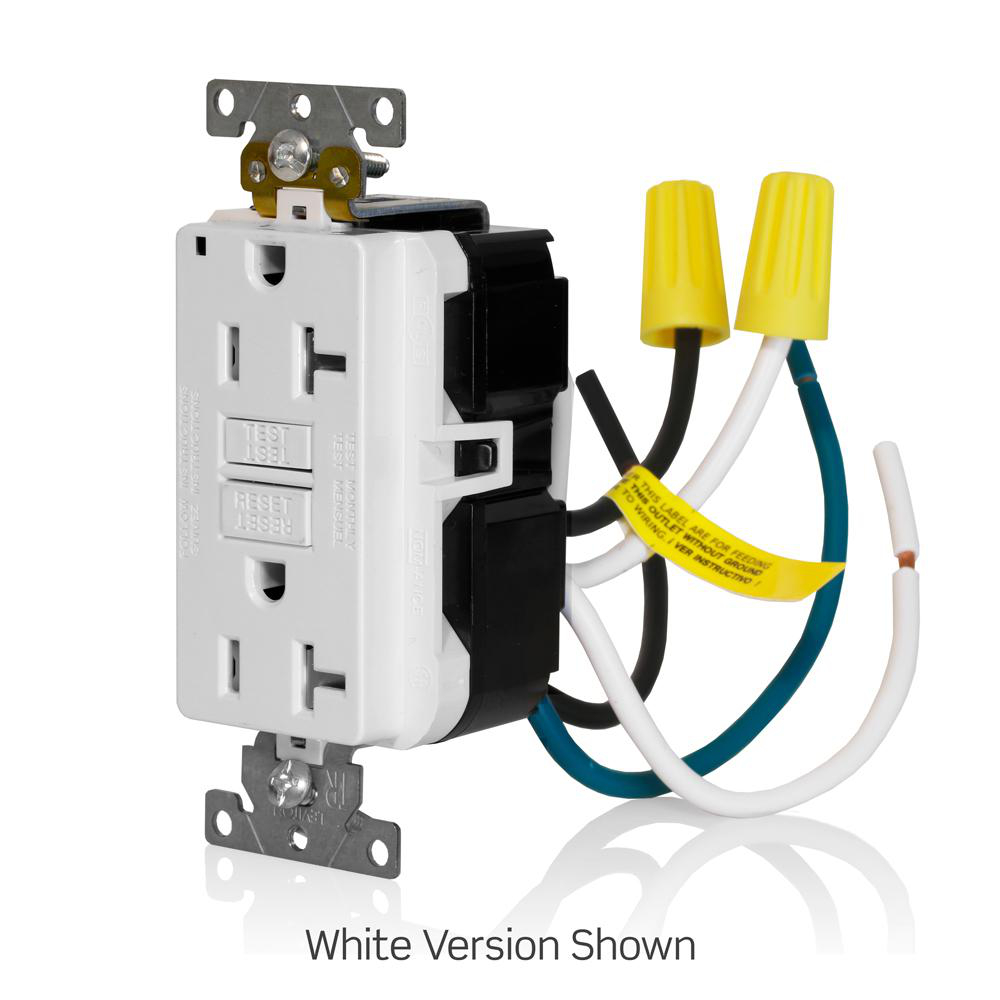

20 Amp SmartlockPro® GFCI Receptacle/Outlet, Industrial Grade, Tamper-Resistant

Manufacturer: Leviton Manufacturing | Catalog # GFTR2-5LW | Electrozad South Part # 424042
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Power Indication, 20 Amp, 125 Volt, Pre-Wired Leads, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 A
Applications
Extra-Heavy Duty Industrial Grade
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Extra Heavy-Duty Hospital
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate / PBT
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-35 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 To 66 degrees C
Termination Type
Pre-Wired Leads
Torque
14 lb-in
Type
Self-test SmartLock Pro Slim GFCI
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT C/I GFCI

General Product Info

12-Digit UPC
078477724309
Color
White
GTIN
00078477724309

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
