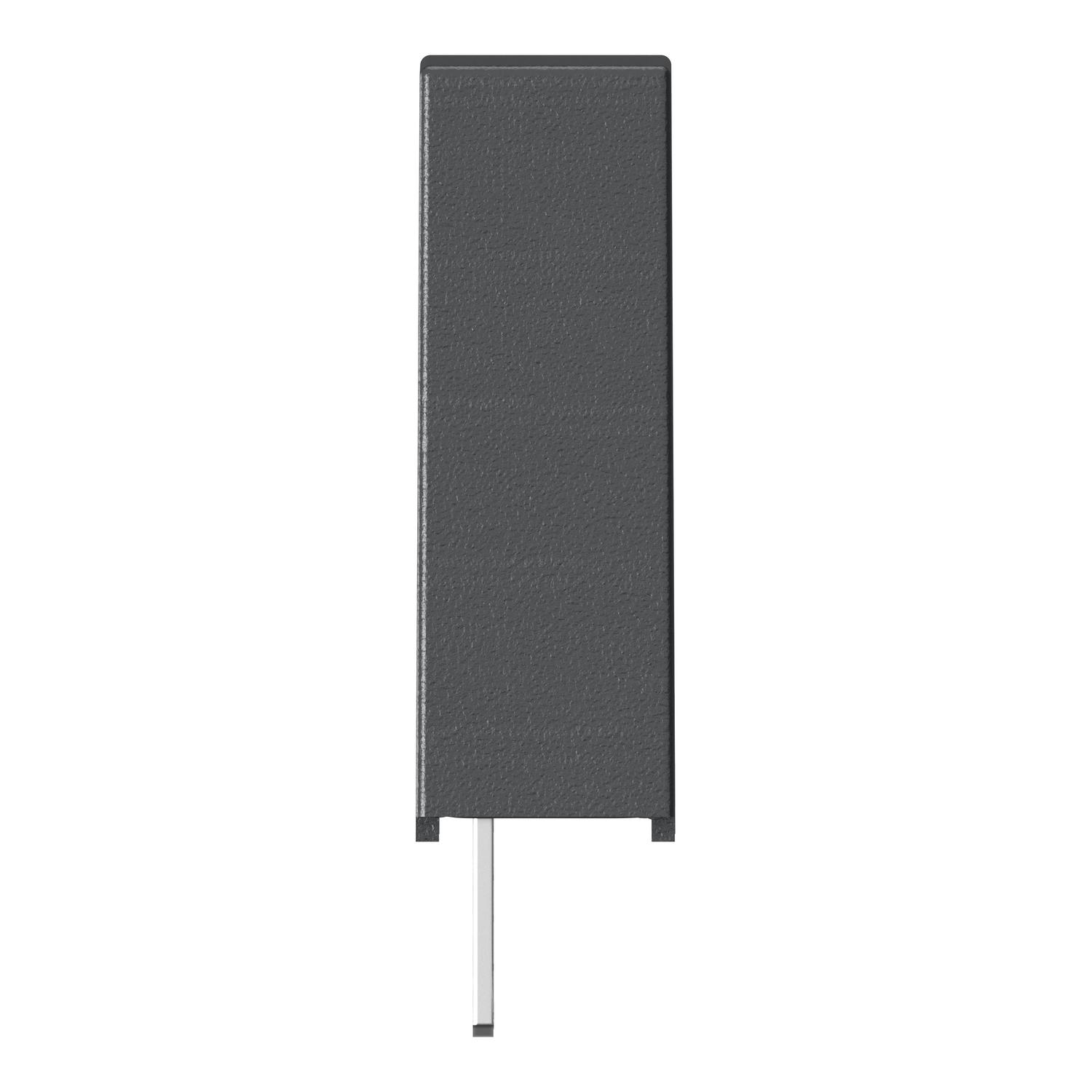

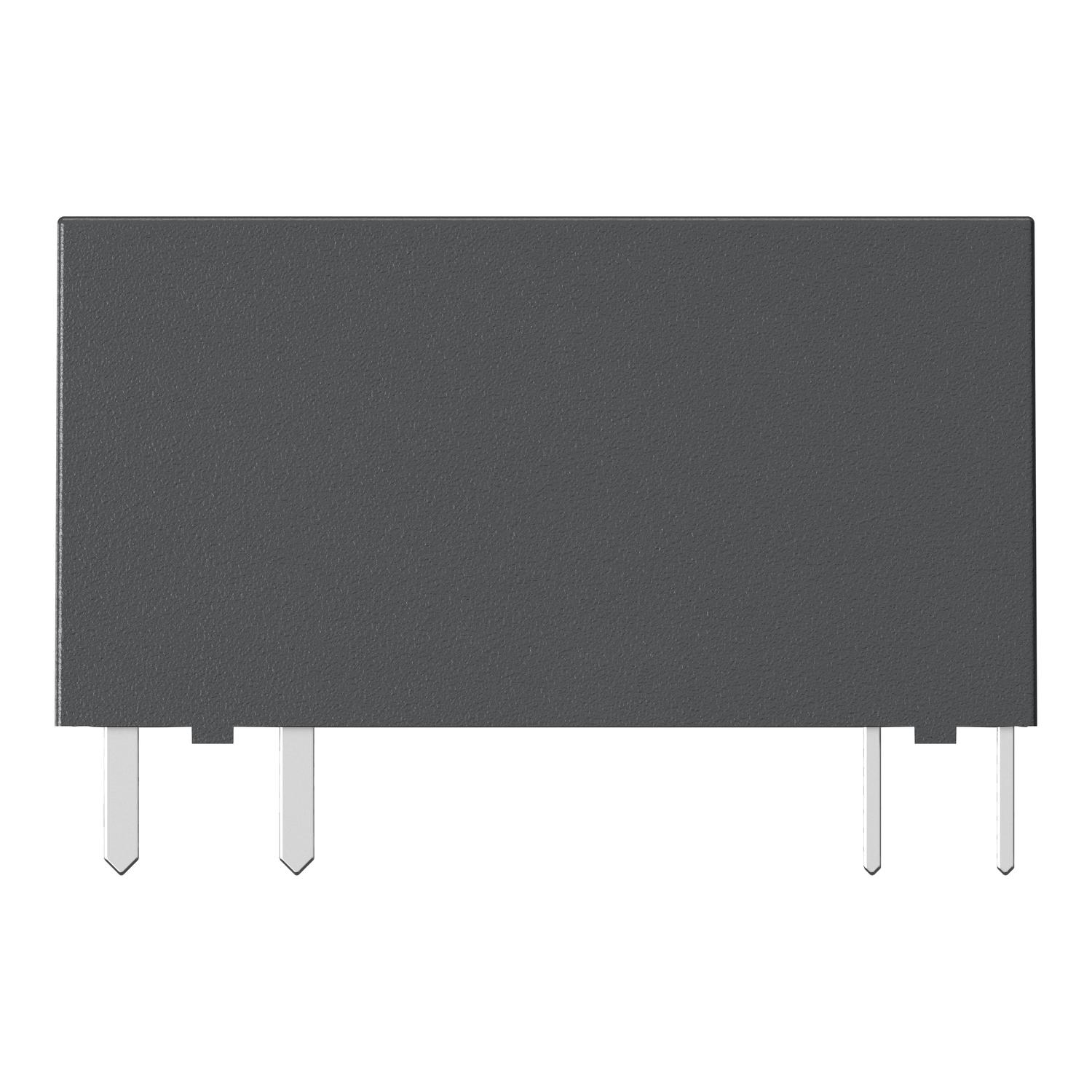

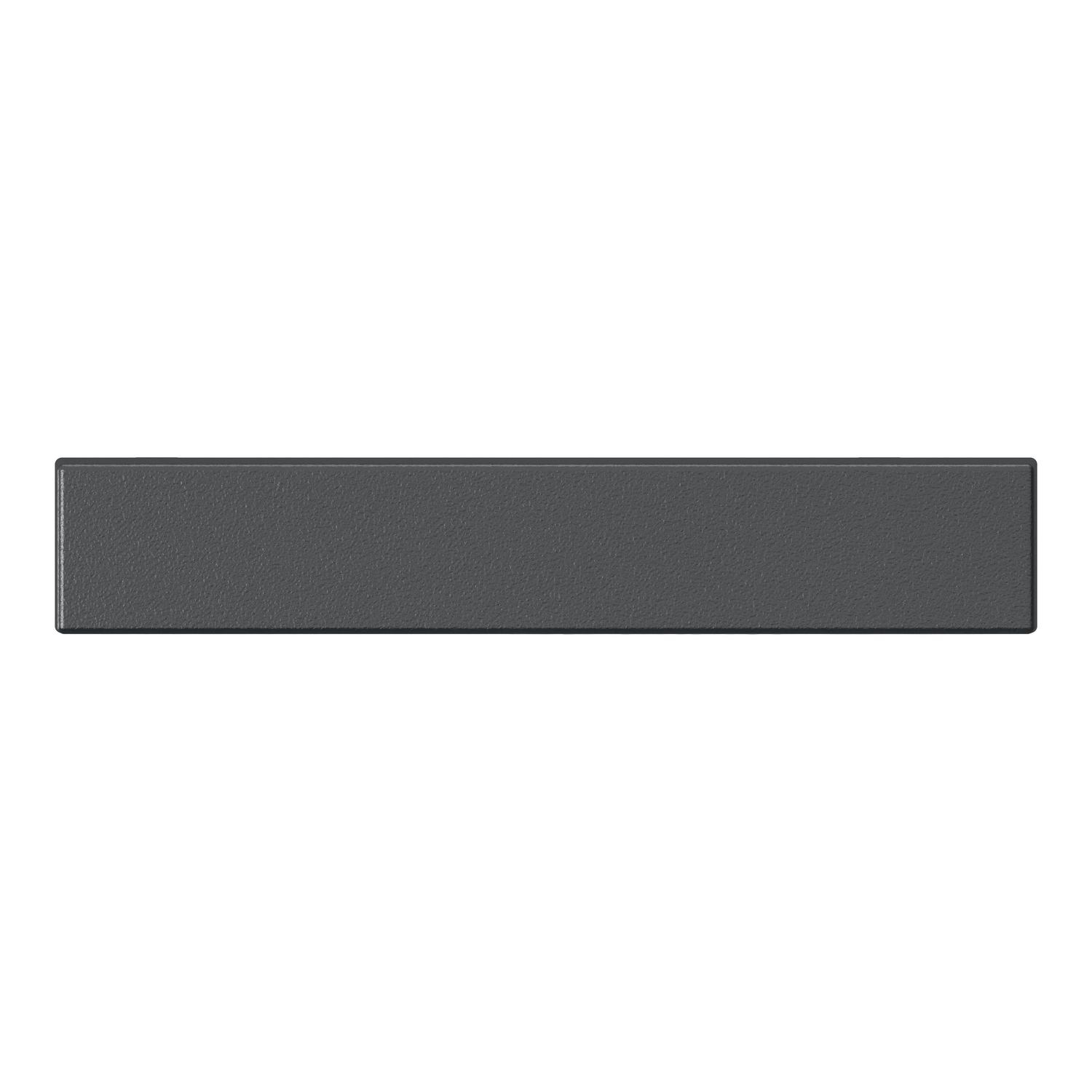

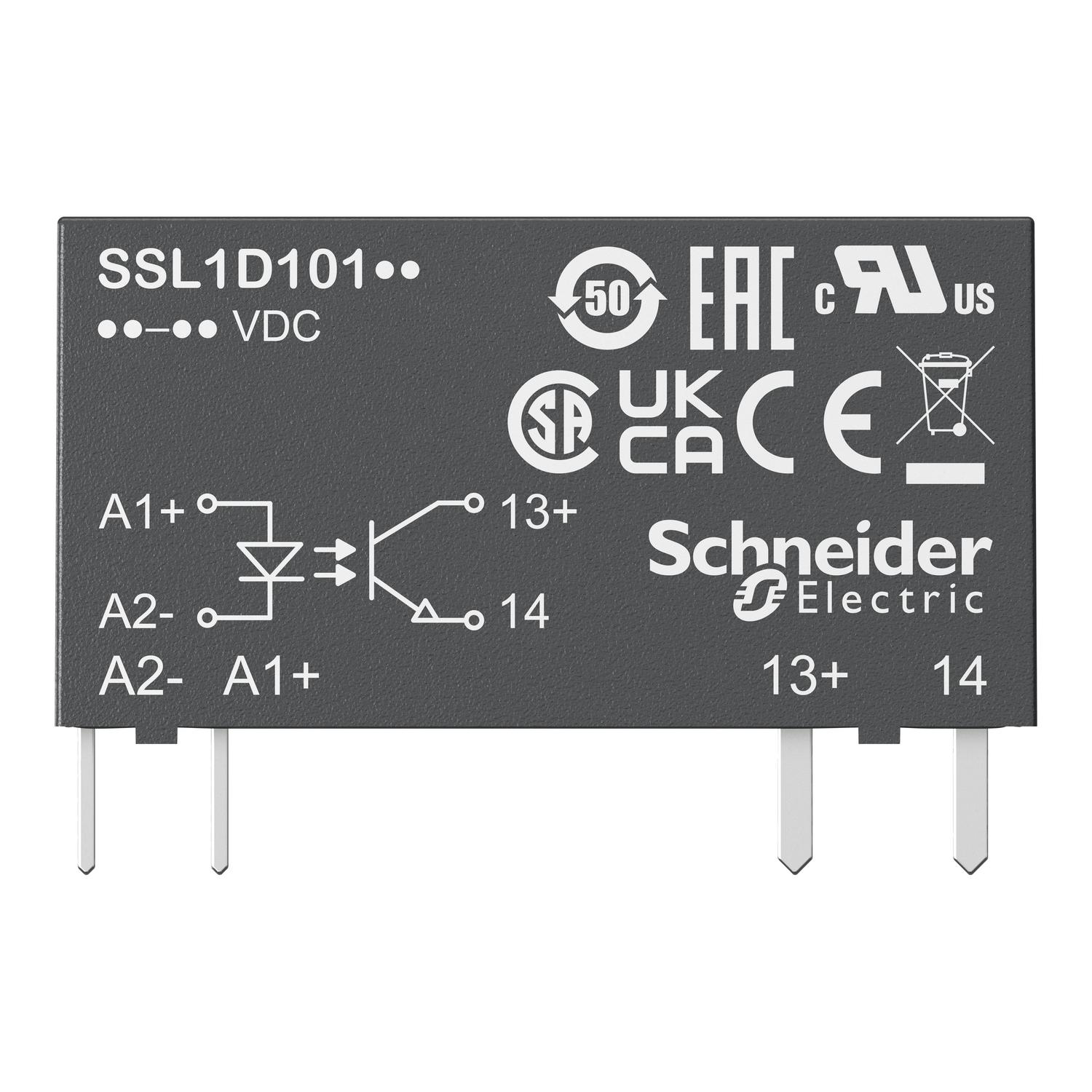

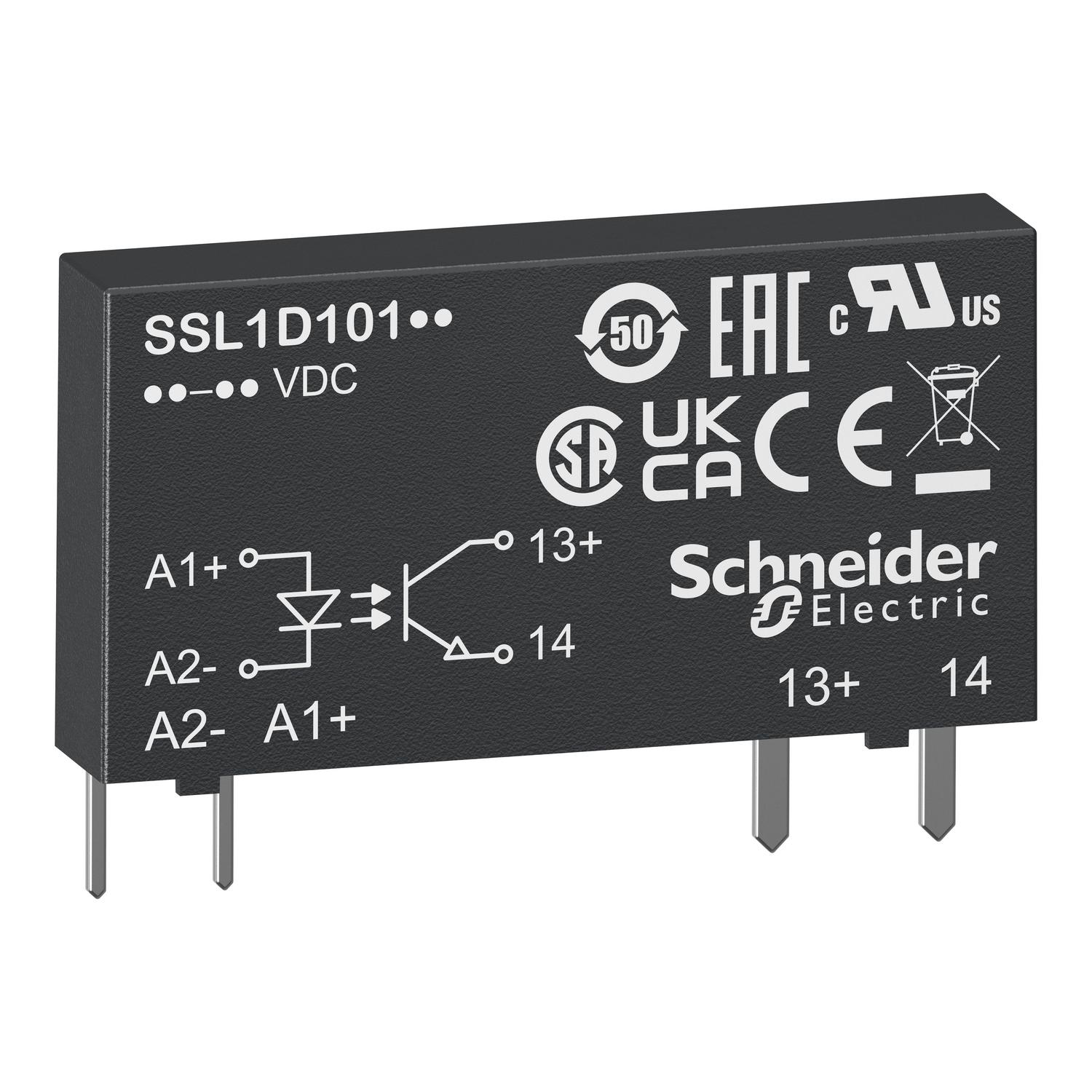

Product image for PLUG IN RELAY, HARMONY SOLID STATE SLIM RELAYS, 3.5A, DC SWITCHING, INPUT 3 TO 12V DC, OUTPUT 1 TO 24V DC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

PLUG IN RELAY, HARMONY SOLID STATE SLIM RELAYS, 3.5A, DC SWITCHING, INPUT 3 TO 12V DC, OUTPUT 1 TO 24V DC

Manufacturer: Schneider Kreuznach B & W | Catalog # SSL1D03JD | Electrozad South Part # 423828
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
3.5 A
Applications
ZELIO RELAY
Dielectric Strength
2500 V
Impedance
500 ohm
Line Rated Current
3.5 A
Maximum Load Current
0.0013.5 A
Net Weight
0.004 kg
Number of Phases
1
Operating Temperature
-20-80 Adegrees C
Output Voltage
...30 V
Response Time
0.12 ms
Size
0.59 in
Storage Temperature
-20-85 degrees C
Type
Solid state relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSL

General Product Info

12-Digit UPC
785901968283
GTIN
03606480579646
Weight
0.004 kg

Dimensions

Depth
15 mm
Height
1.1 in
Width
0.2 in

Certifications & Compliance

Certifications
CSA,UL
Country of Origin
China
