M18™ FORCE LOGIC™ 750 MCM Dieless Crimper

Manufacturer: Milwaukee Tools | Catalog # 287722 | Electrozad South Part # 423670

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

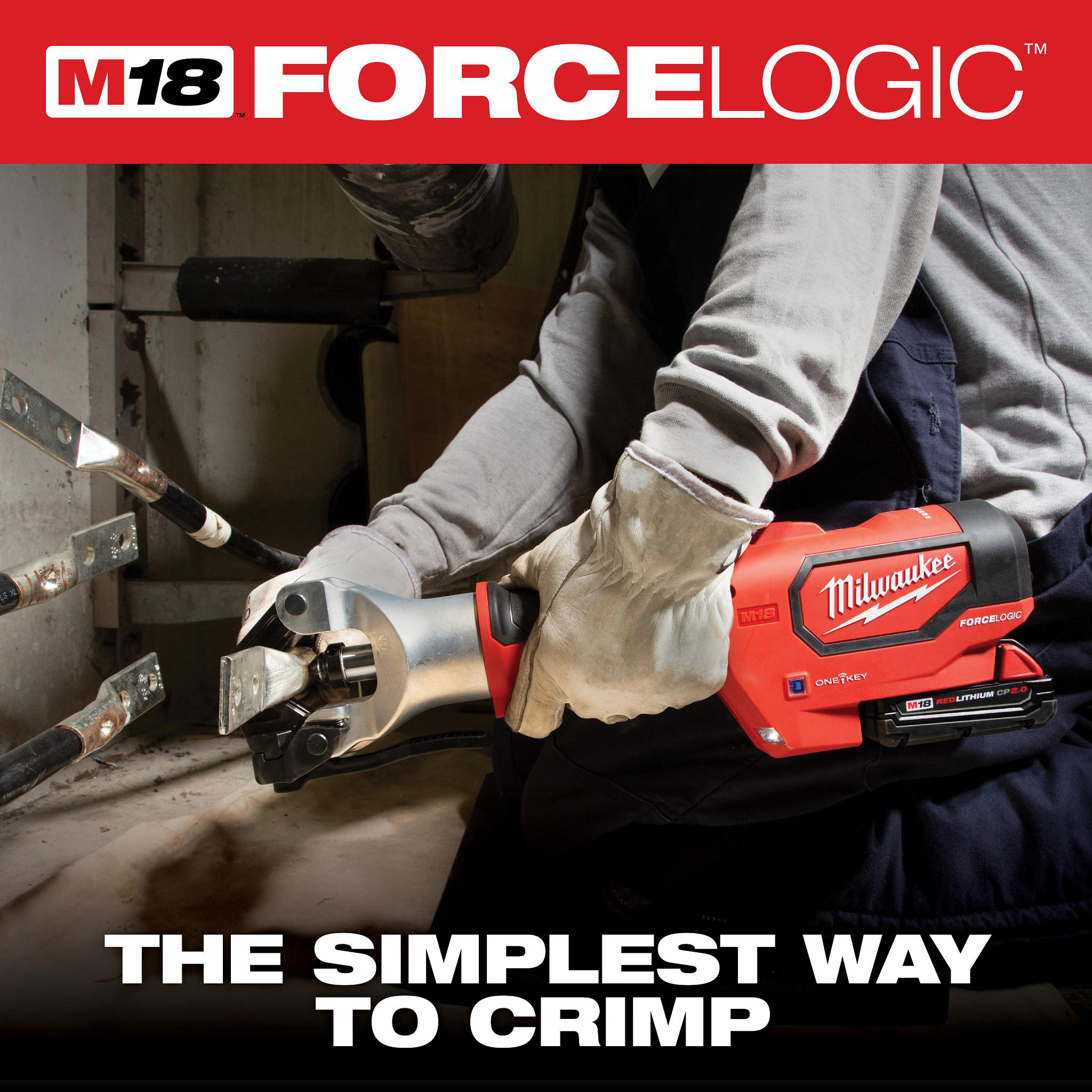

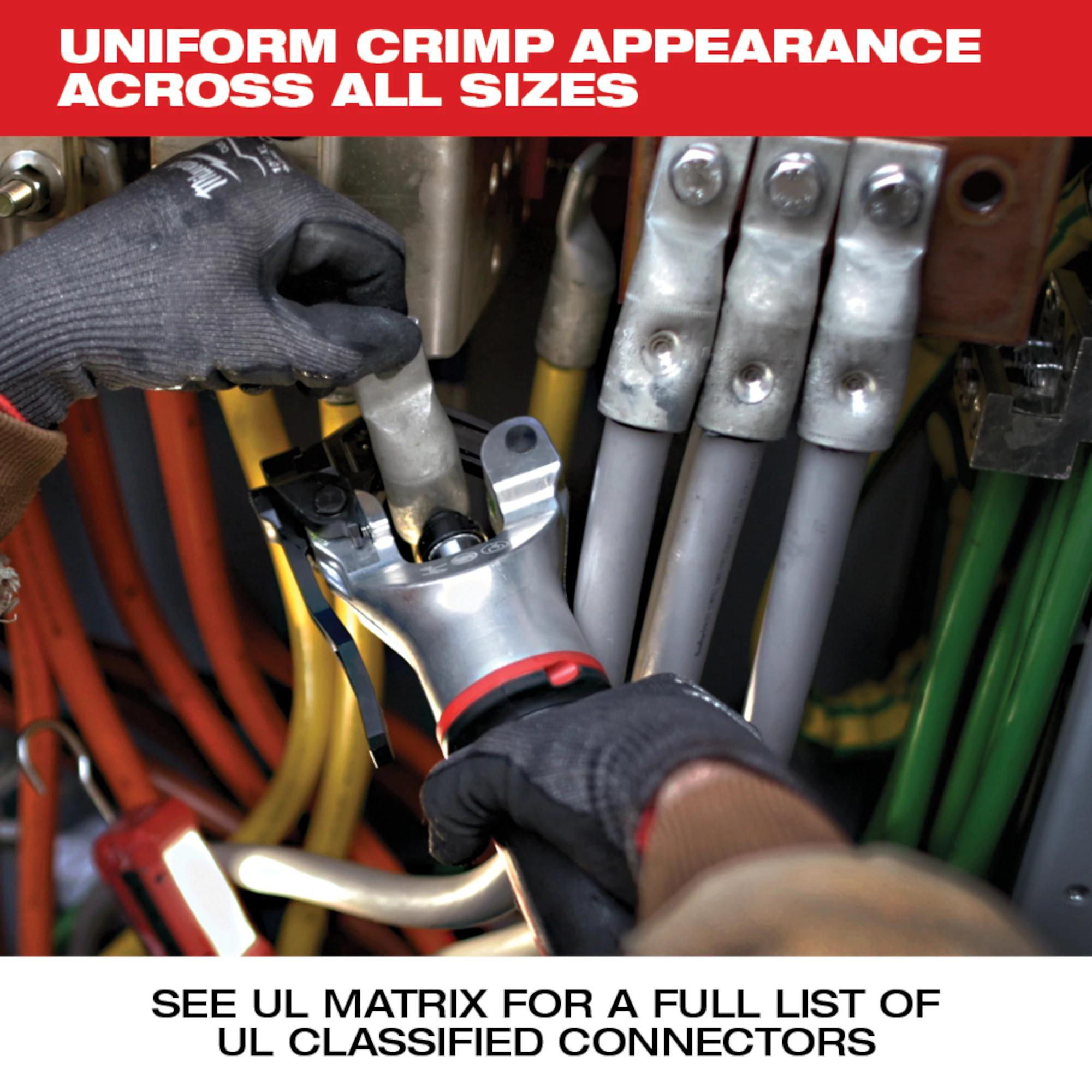

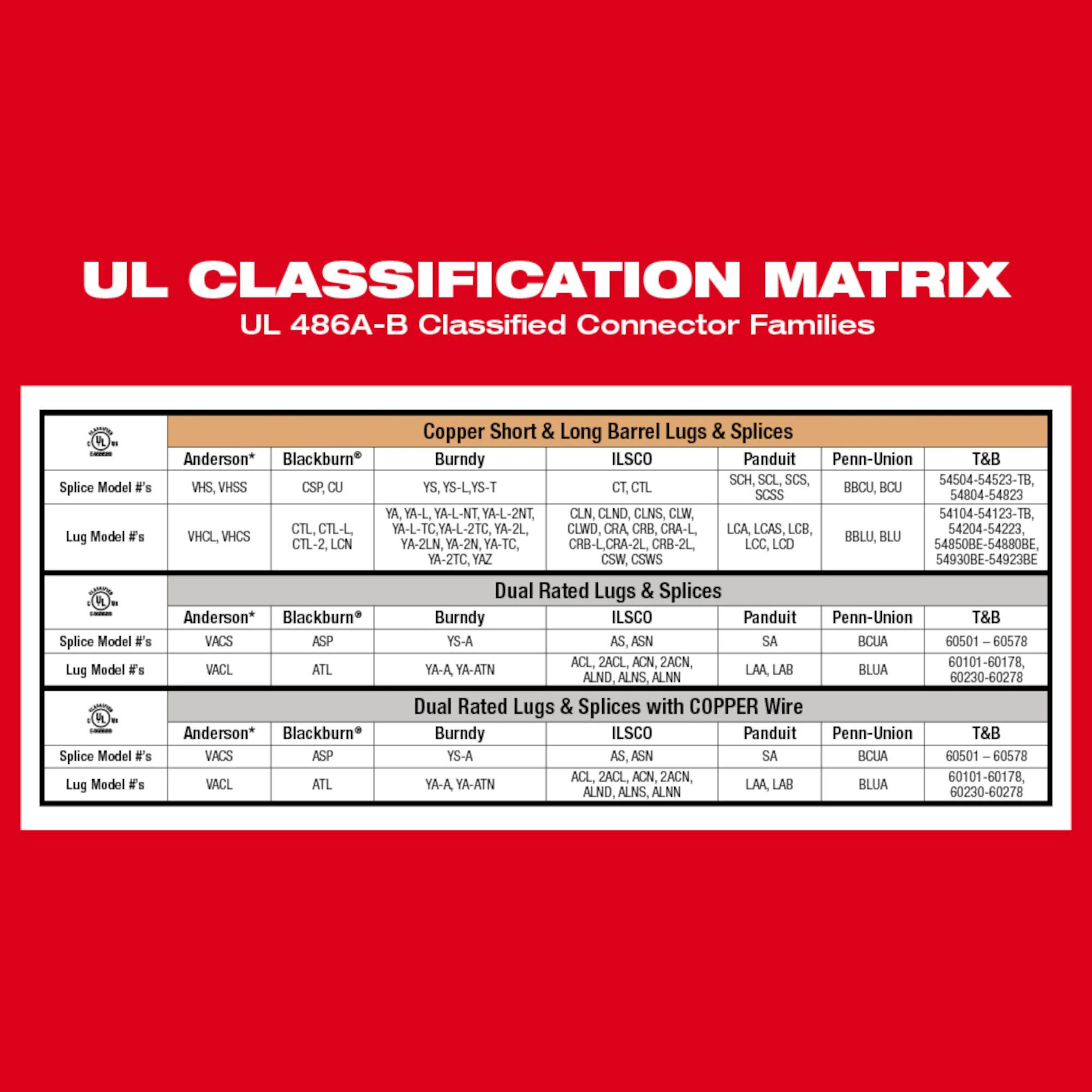

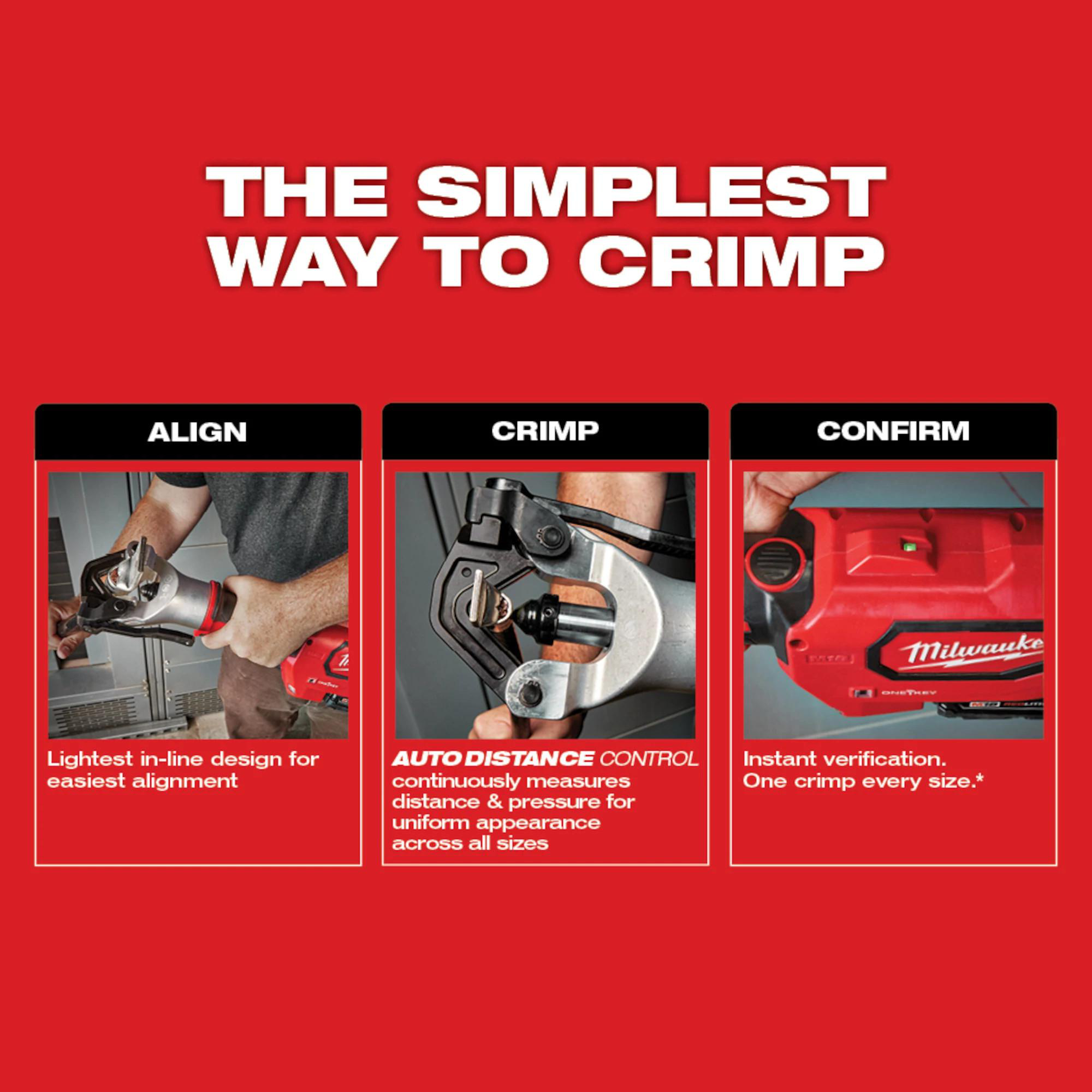

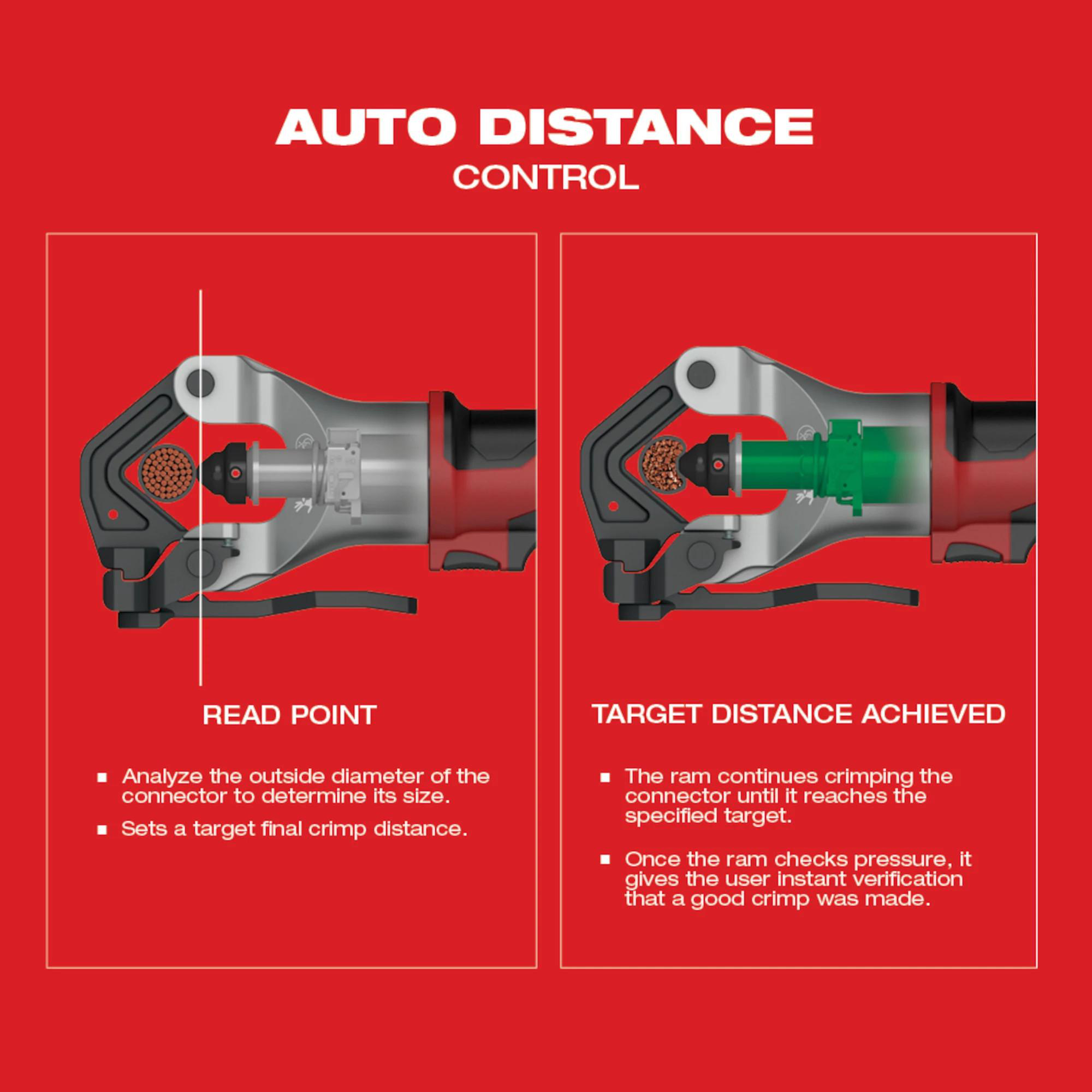

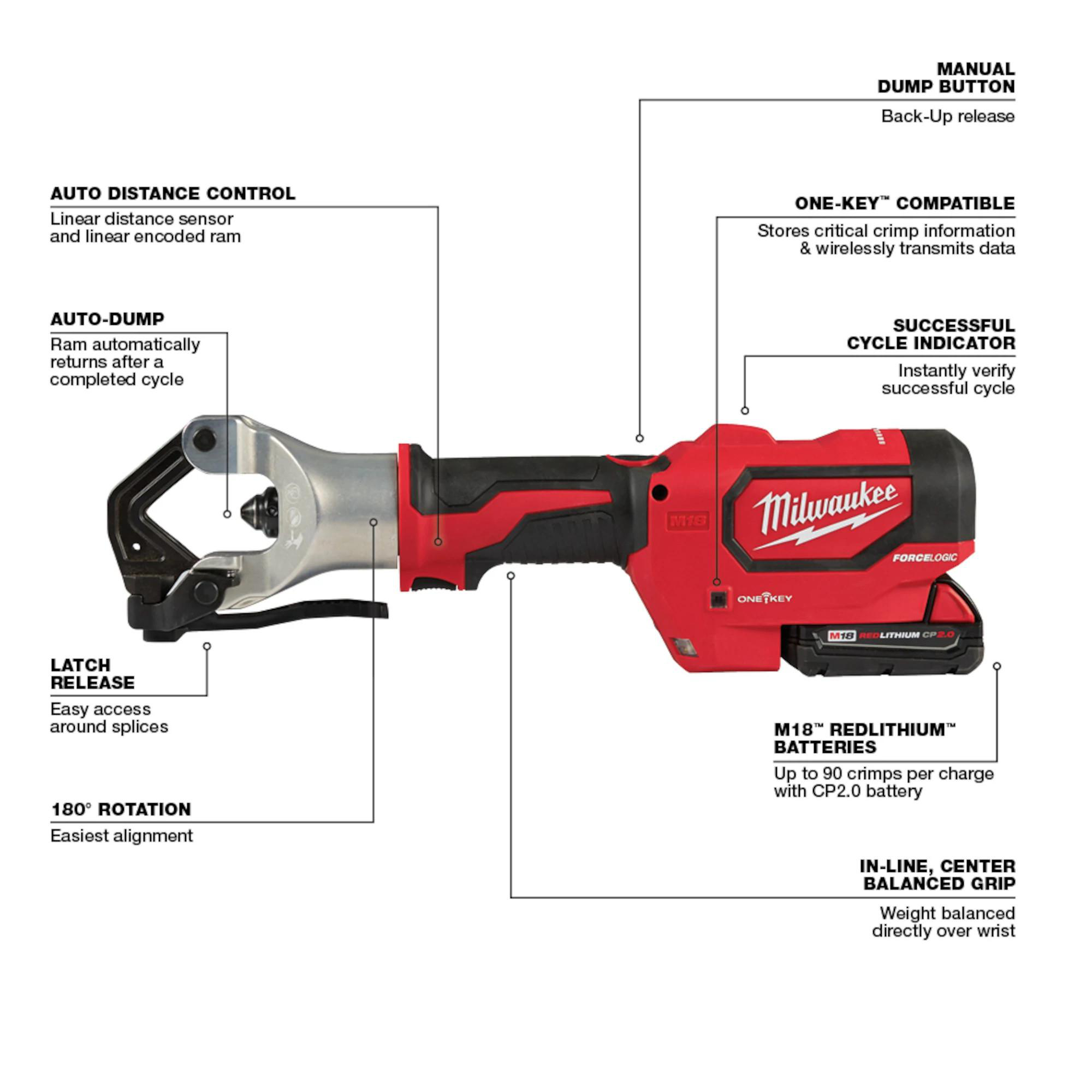

The MILWAUKEE® M18™ FORCE LOGIC™ 750 MCM Dieless Crimper is the Simplest Way to Crimp. This dieless crimper uses Auto Distance Control, an industry-first technology producing cULus Classified connections under UL 486A-B for #6 - 750 MCM Cu and Dual Rated connectors for seven major manufacturers (Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts). Auto Distance Control enables the battery-powered crimper to sense the instant it contacts the connector for optimal compression with a single crimp across the entire capacity range. Controlling compression by distance provides uniform crimp appearance across all sizes for easy installation in tight panels. This is the lightest crimper in its capacity range with an in-line design and a 180.. rotating head providing the easiest alignment. The fully enclosed high-speed hydraulic pump delivers the fastest dieless connections and up to 90 crimps per charge on a CP2.0 battery. ONE-KEY™ Technology stores real-time crimp data, generates professional reports, and historical tool performance data, syncing it all wirelessly to the cloud for easy access. The cordless crimper has a POWERSTATE™ Brushless Motor, REDLINK™ Electronics, and REDLITHIUM™ Batteries for with Unmatched Reliability in the toughest conditions. The kit includes two M18™ REDLITHIUM™ CP2.0 Batteries, an M18™ & M12™ Multi-Voltage Charger, and a carrying case.

Technical Information

Applications
Crimping
Battery Type
Lithium-Ion
Conductor Size

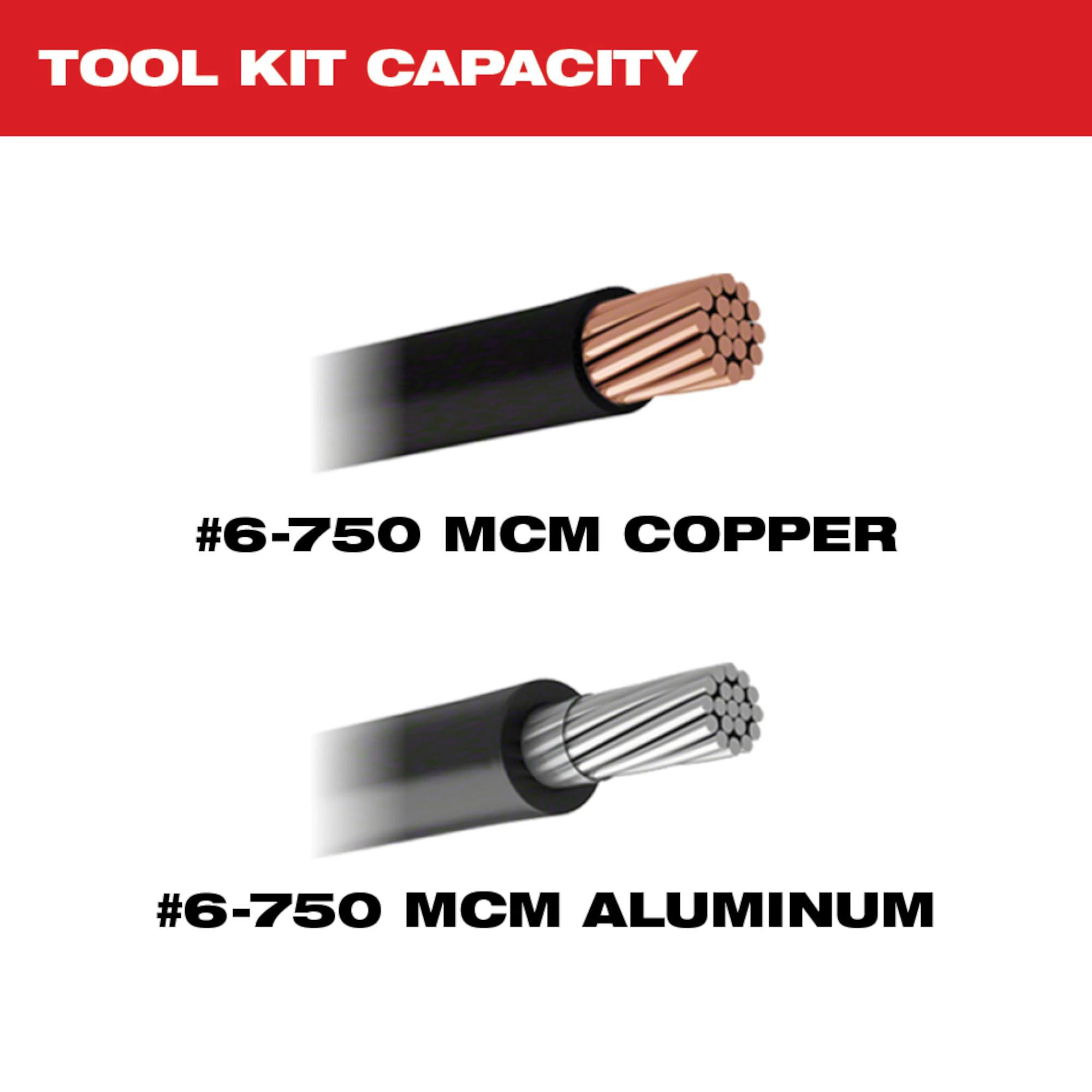

6 AWG - 750 MCM Copper
Crimping Force
13000 lb
Head Type
Straight
Material
Nylon
Power Source
Cordless
Size
18.9 in
Type
Dieless, Cordless
Voltage
18 V

Manufacturer Information

Brand
Milwaukee
Sub Brand
Force Logic™, M18™

General Product Info

12-Digit UPC
045242020706
Color
Black,Red
Finish
Black,Red
GTIN
00045242020706
Used With
Copper or Dual Lugs and Splices 6 AWG -750 MCM
Weight
9 lb

Dimensions

Depth
20.87 in
Height
6.5 in
Length
18.9 in
Width
3.3 in

Certifications & Compliance

Country of Origin
China
