Lev-Lok® Combination Duplex Receptacle/Outlet, Tamper-Resistant

Manufacturer: Leviton Manufacturing | Catalog # M56AA-W | Electrozad South Part # 423571
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet Technical Drawing

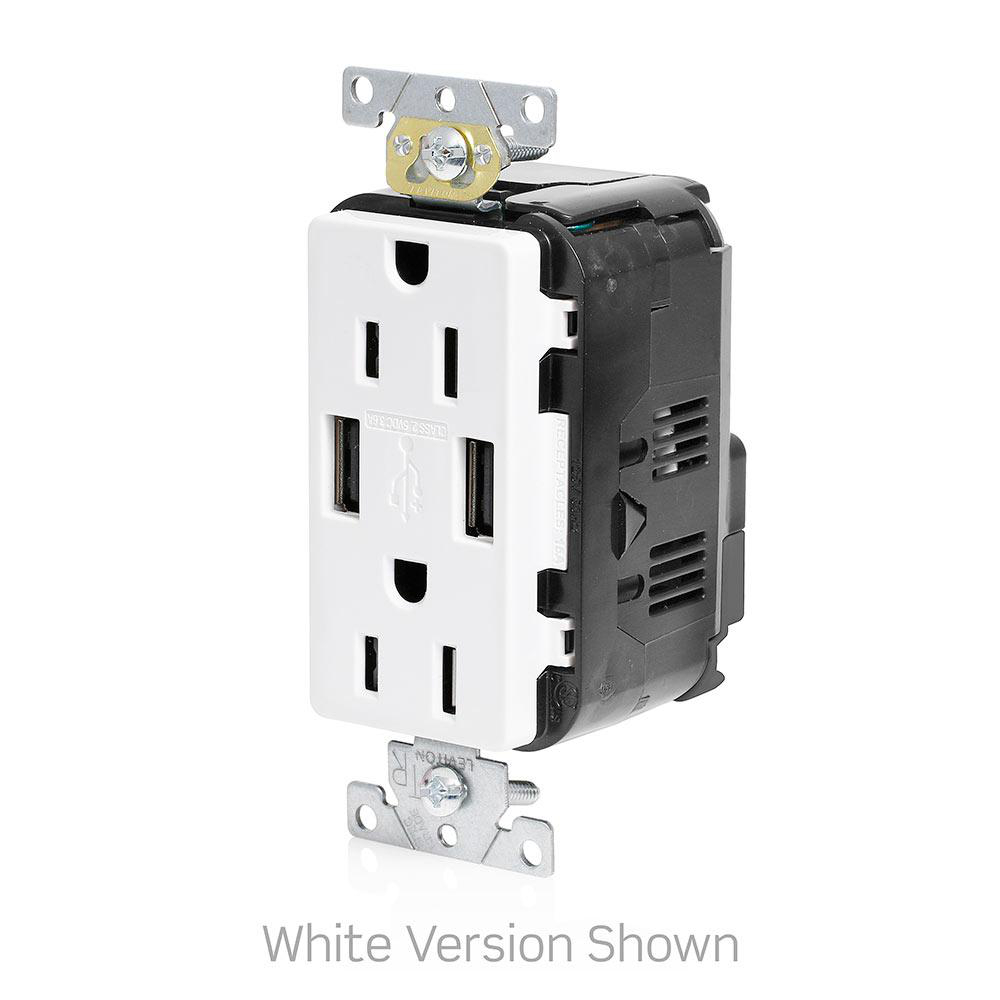

Lev-Lok Combination Tamper-Resistant Duplex Decora Receptacle and Dual-Port USB Type A-A Charger, NEMA 5-15R, 15A-125V, 2 Pole, 3-Wire Grounding Receptacle - White

Technical Information

Amperage
15 A
Body Material
PBT
Device Type
Combination Device
Dielectric
2000 V
Face Material
Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-10 degrees C
Temperature Rise
30 degrees C
Termination Type
Modular

Manufacturer Information

Brand
Leviton
Sub Brand
LEV LOK RECEPTACLES

General Product Info

12-Digit UPC
078477254165
Color
White
GTIN
00078477254165

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
