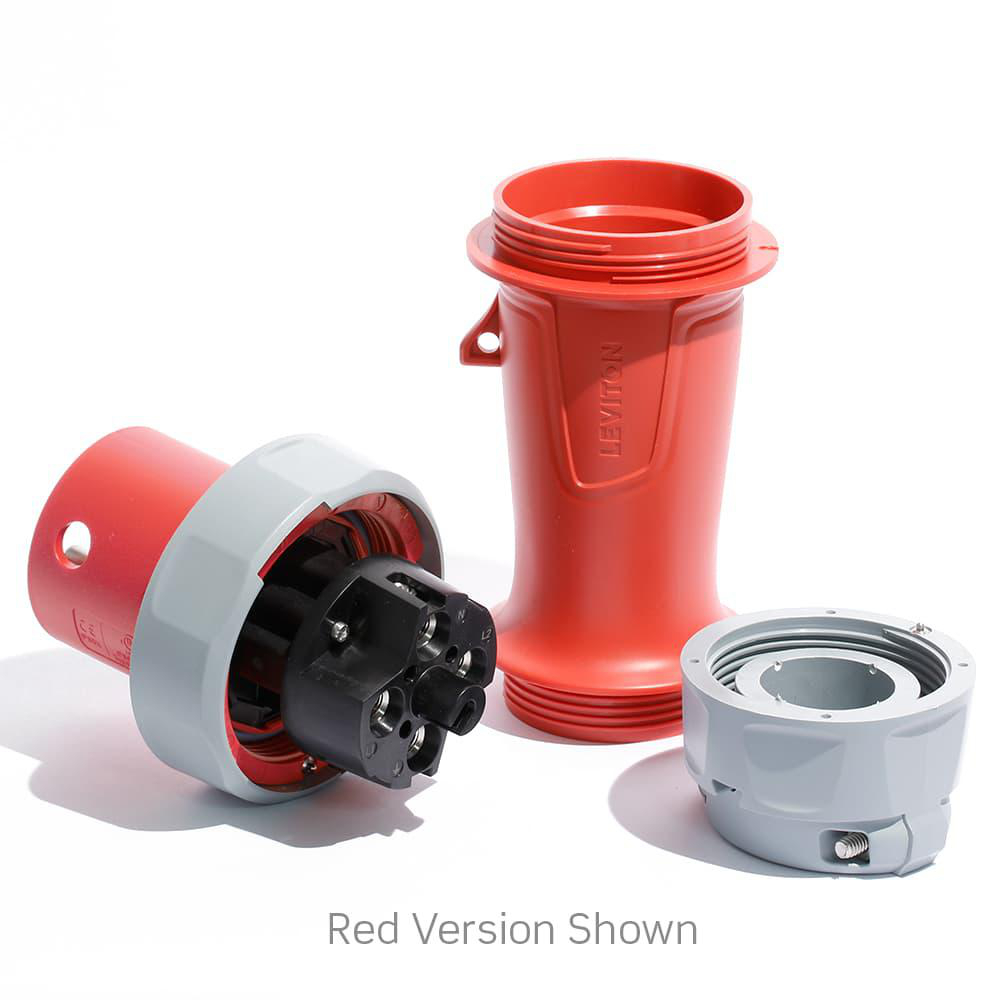

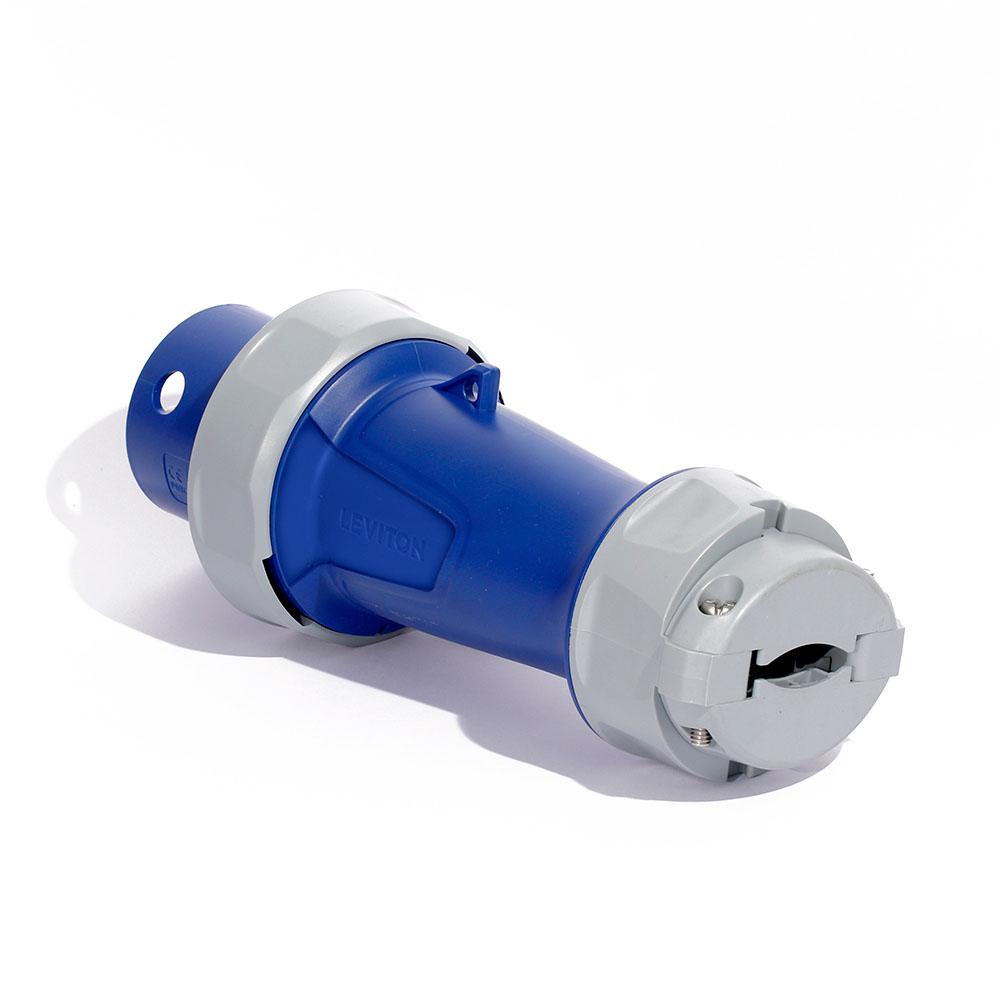

LEV Series IEC Pin & Sleeve Plug

Manufacturer: Leviton Manufacturing | Catalog # 5100P9WLEV | Electrozad South Part # 422863
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing
100/125 Amp, 120/208 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Plug, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue

Technical Information

Amperage
100 A
Device Type
Plug
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Horsepower
7.5 hp
Max Voltage
600 V
Number of Poles
4
Number of Wires
5
Operating Temperature
-35 degrees C
Temperature Rise
30 degrees C

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477665831
Color
Blue
GTIN
60078477665833
Housing Material
Impact Modified Nylon

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
Mexico
