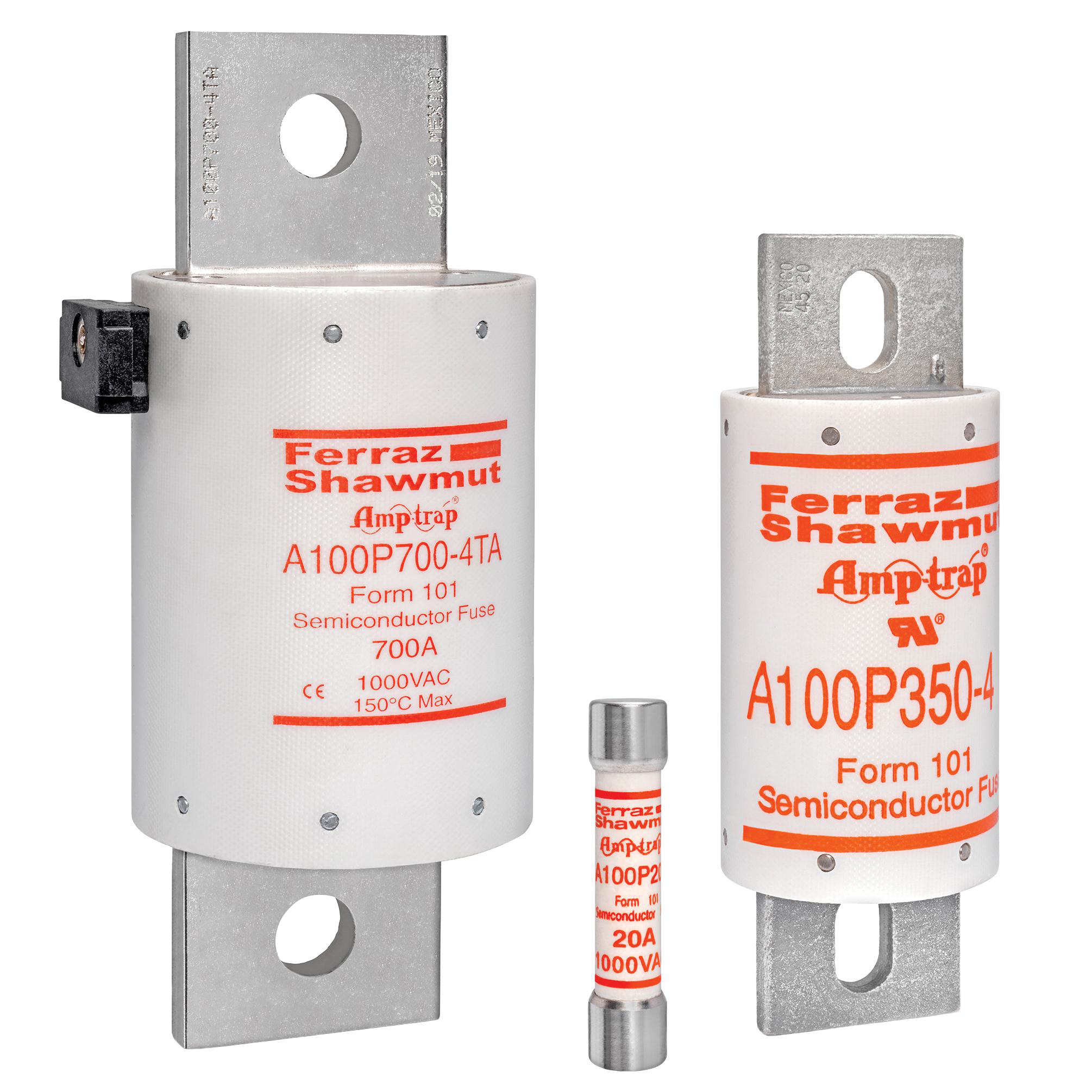

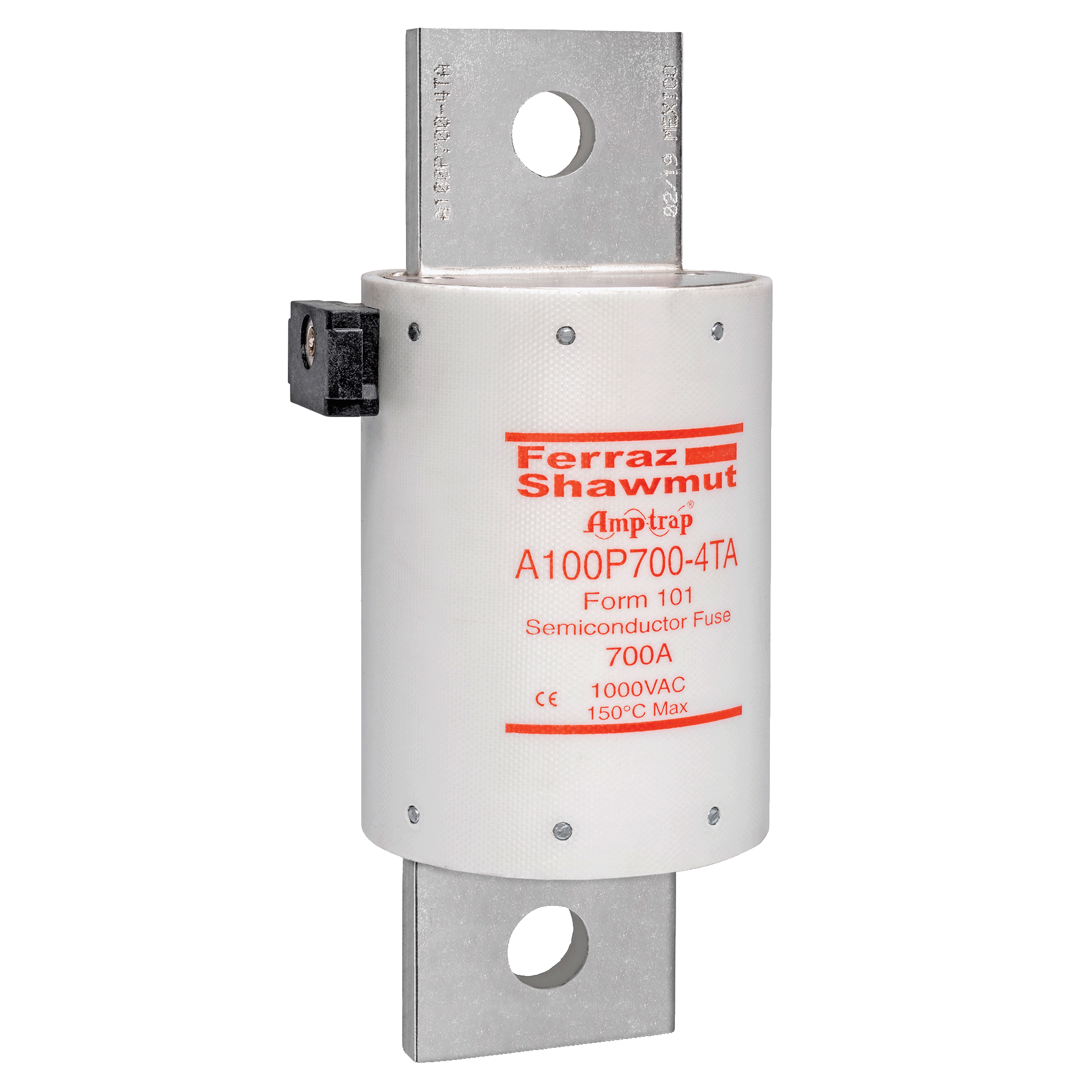

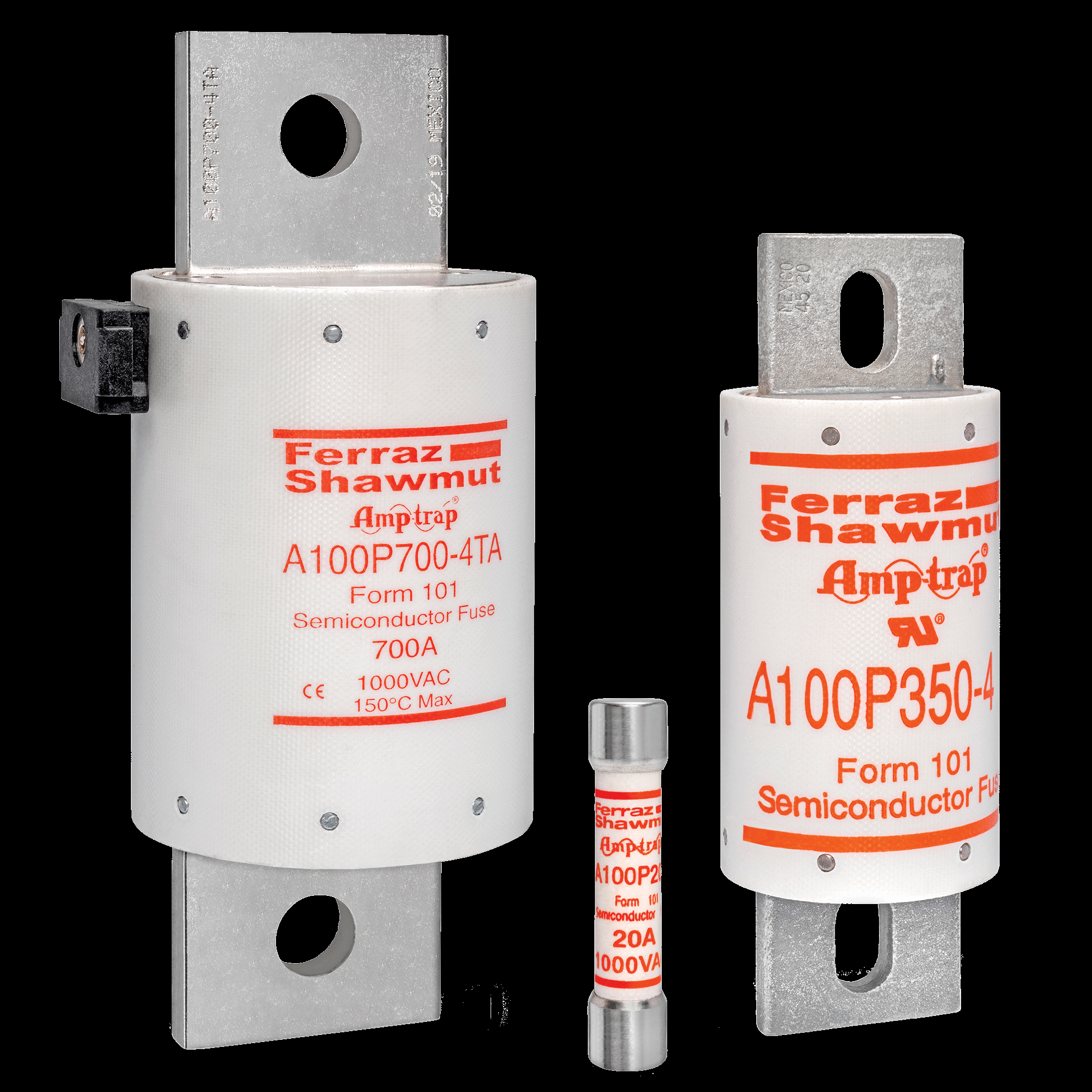

High Speed Fuse Amp-Trap® A100P 1000VAC 750VDC 700A Bolted Blade TA Indicator

Manufacturer: Ferraz Shawmut Mersen | Catalog # A100P700-4TA | Electrozad South Part # 422736
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.

Technical Information

Amperage
700 A
Applications
Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices
Connection Type
Blade
Frequency
50/60 Hz
Indicator
TA Indicator
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Bolted
Rated Voltage AC
1000 V
TC Connection
Bolted
Terminal Material
Silver-Plated Copper
Terminal Type
Bolted
Type
North American Round Style
Voltage
1000 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001141257
GTIN
30782001141258
Weight
4.43 lb

Dimensions

Diameter
2.88 in
Length
7.44 in

Certifications & Compliance

Country of Origin
Mexico
