Locking Plug, 20 Amp, 250 Volt, Industrial Grade, Black

Manufacturer: Leviton Manufacturing | Catalog # 2321-B | Electrozad South Part # 422705
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing

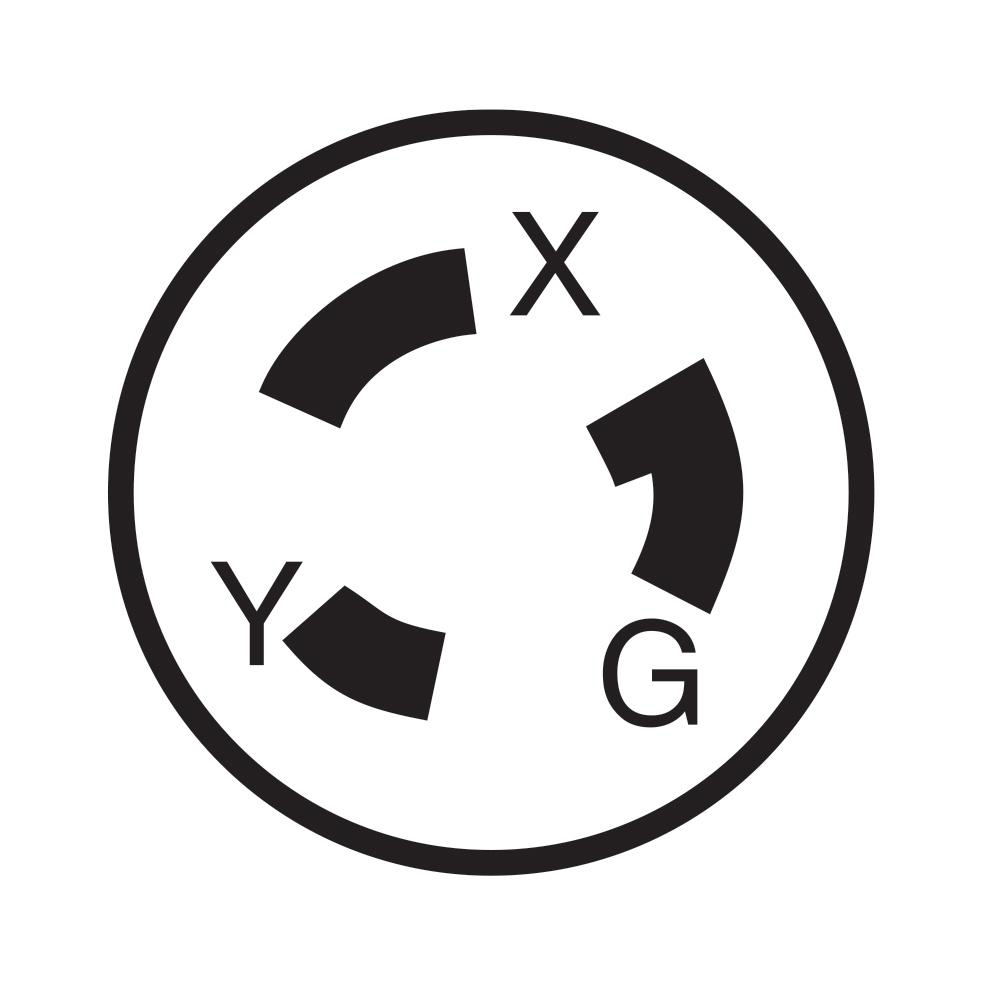

20 Amp, 250 Volt, NEMA L6-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - BLACK

Technical Information

Amperage
20 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Contact Material
Solid Brass
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
2 hp
Material
Super Tough Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Dia x 2.47 H IN
Standard
ANSI C-73
Temperature Rise
200 %
Terminal Size
18-10 AWG
Type
Locking Plug
Voltage
250 V
Wire Count
3
Wire Size
16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477847510
Color
Black
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477847510

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
