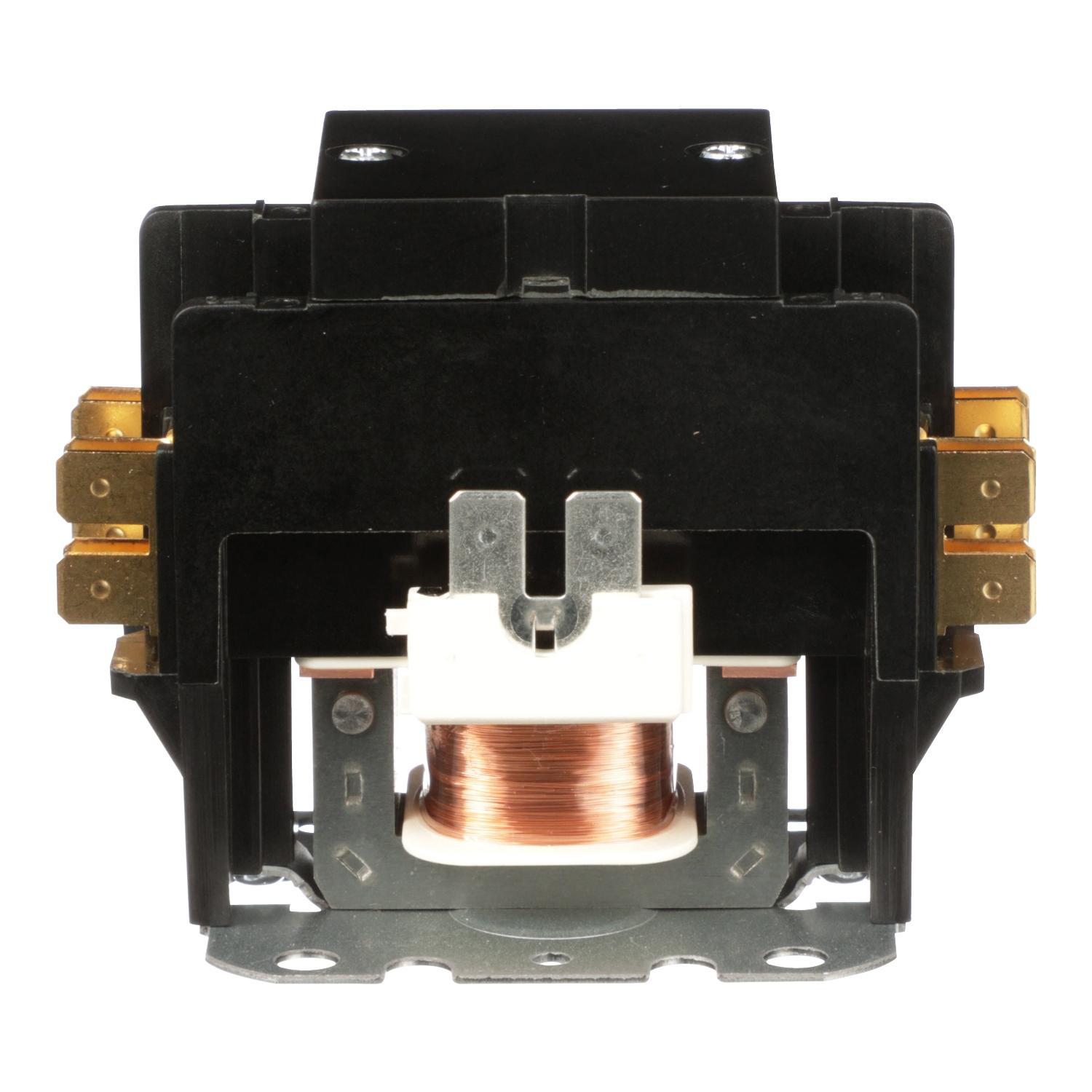

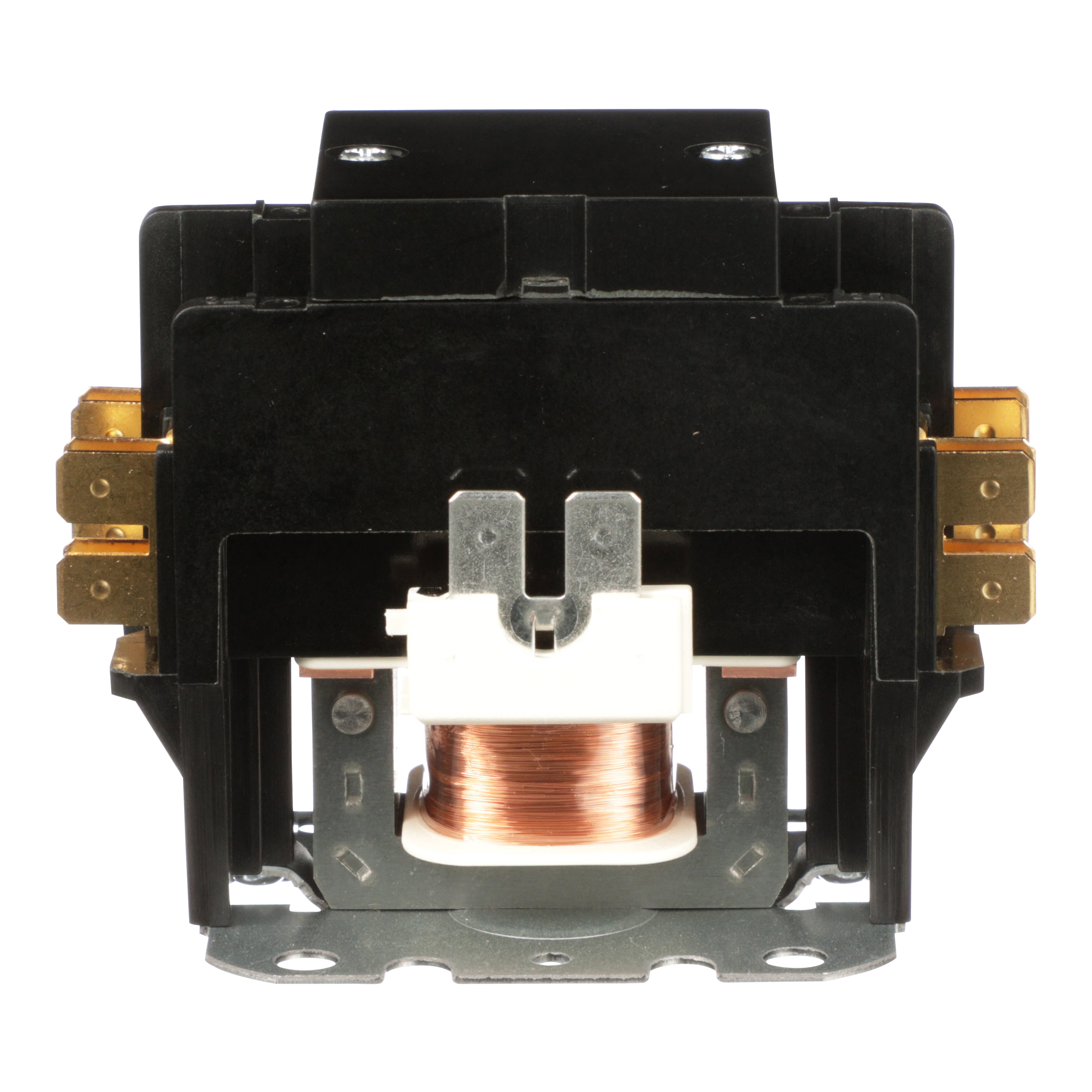

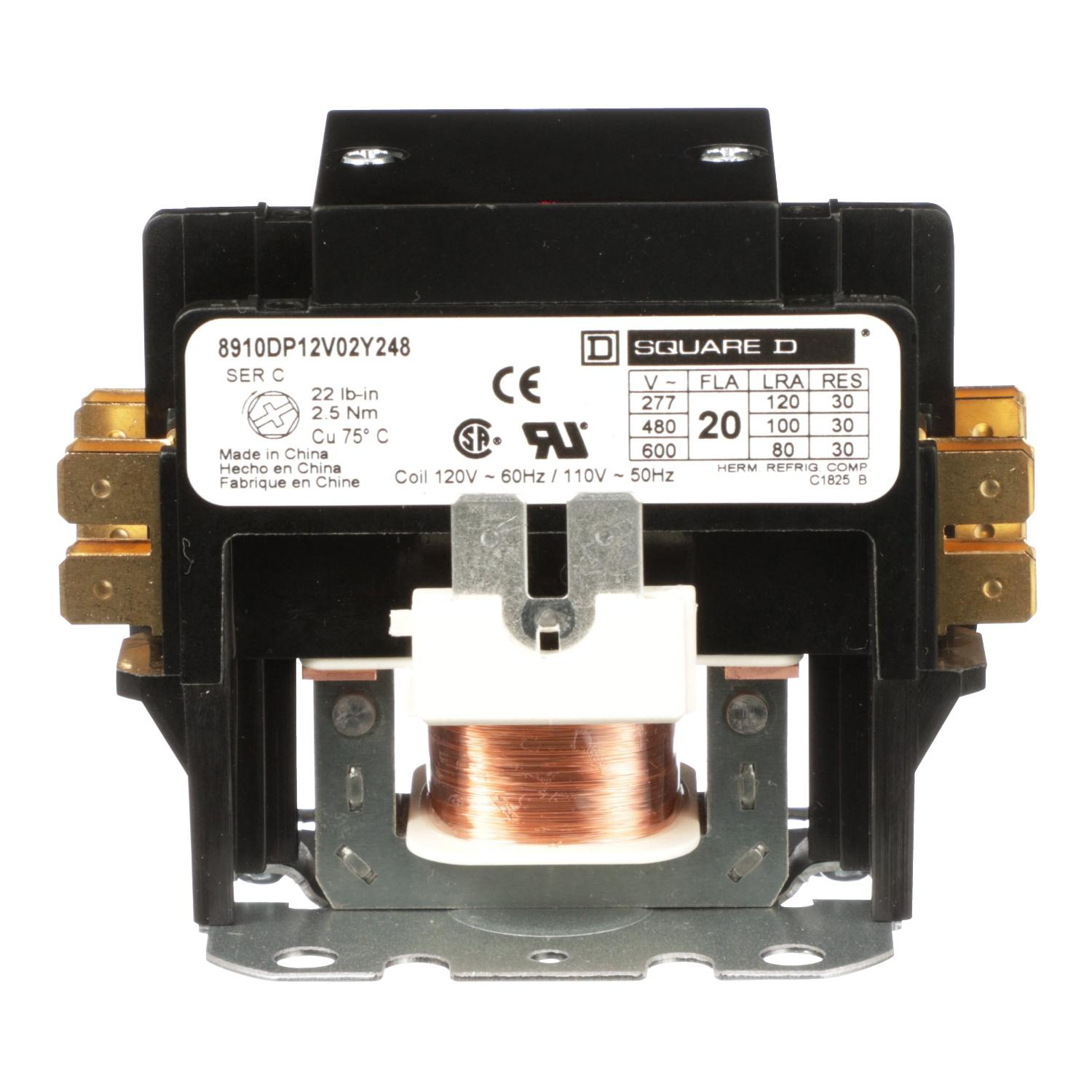

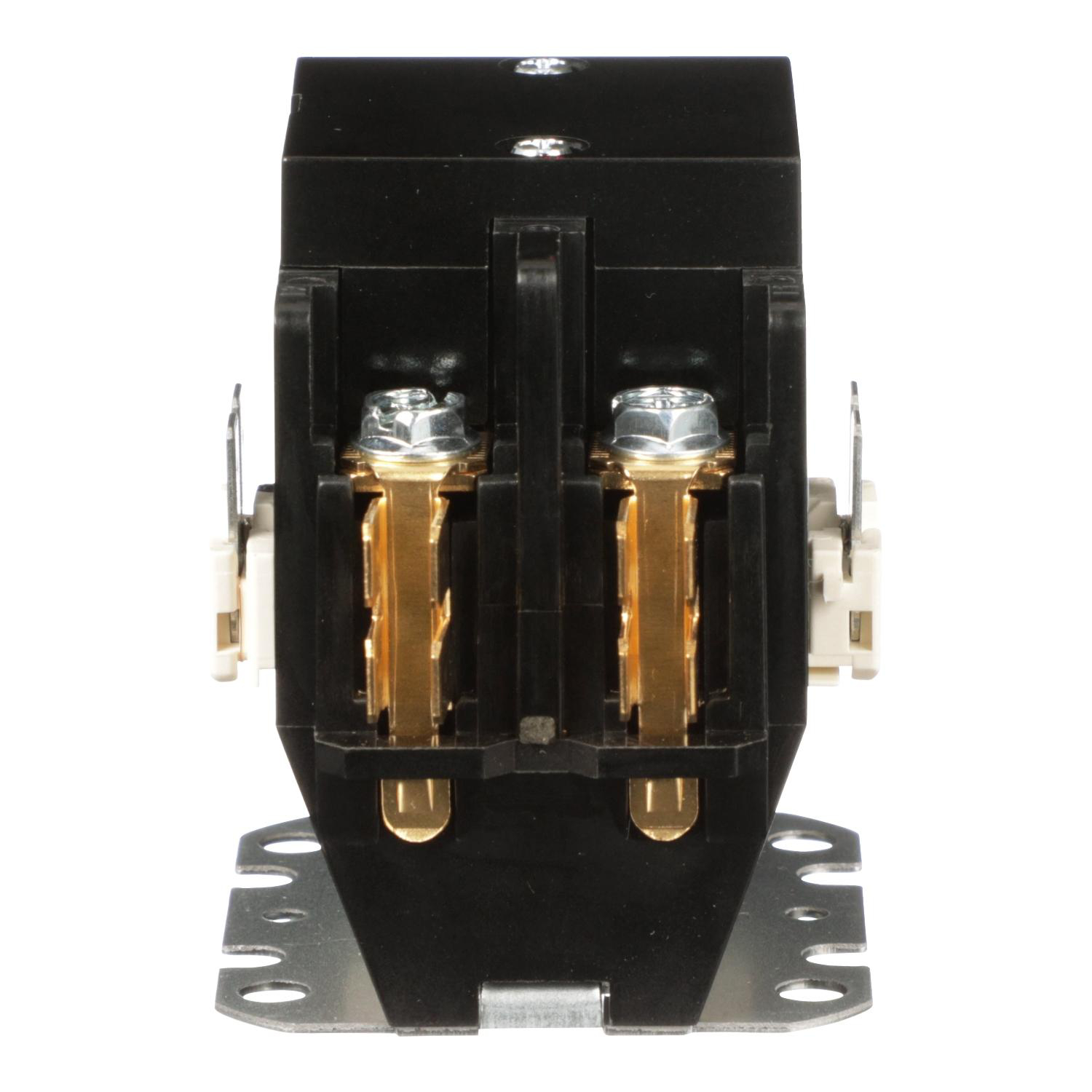

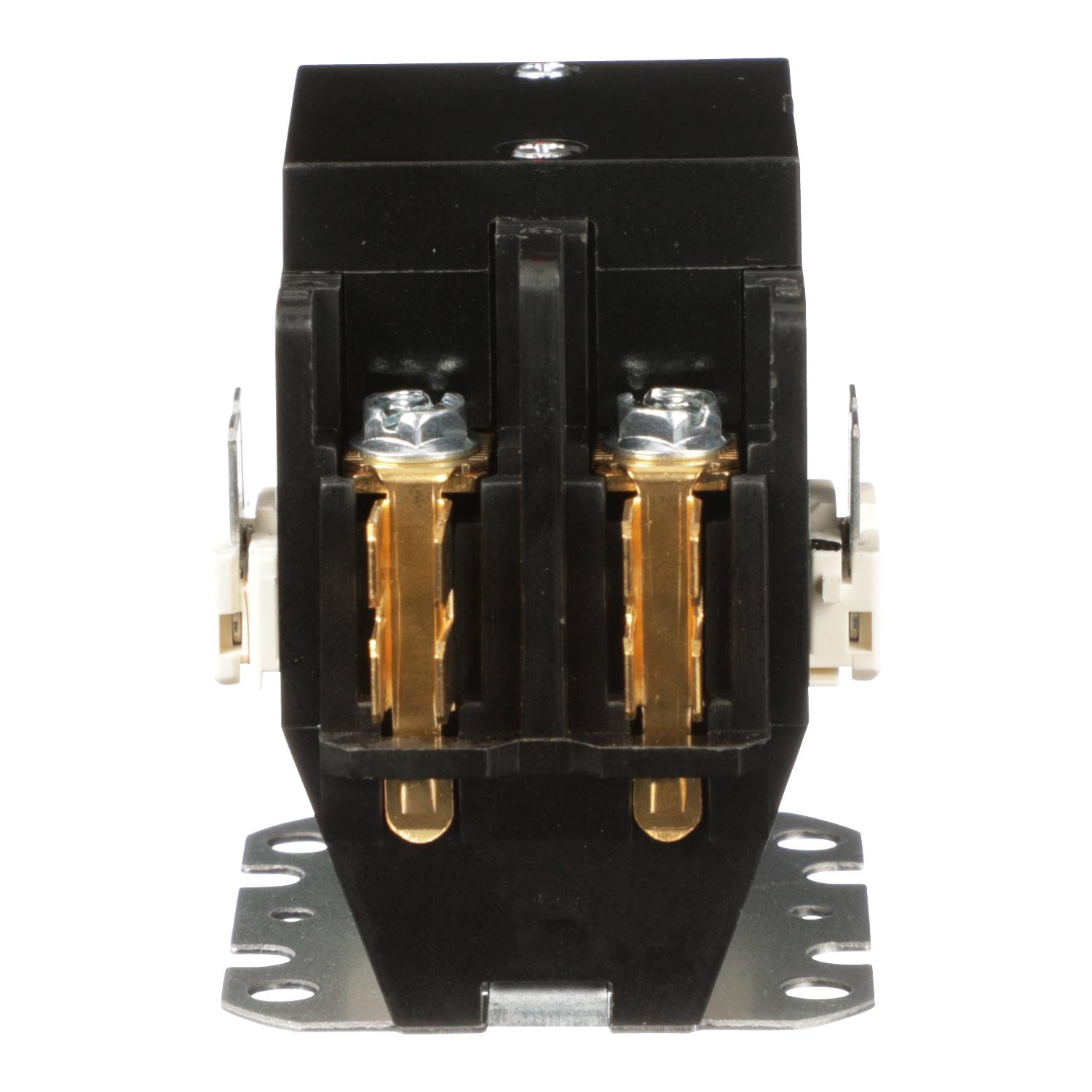

Product image for CONTACTOR, DEFINITE PURPOSE, 20A, 2 POLE, 110/120VAC 50/60HZ COIL, OPEN, WITH COVER
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

CONTACTOR, DEFINITE PURPOSE, 20A, 2 POLE, 110/120VAC 50/60HZ COIL, OPEN, WITH COVER

Manufacturer: Schneider | Square D | Catalog # 8910DP12V02Y248 | Electrozad South Part # 422130
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 Technical Drawing
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 20 ampere and a resistive rating of 30 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. This device is supplied with a cover. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

Technical Information

Amperage
20 A
Applications
IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Coil Voltage
120 V AC 60 HZ-110 V AC 50 HZ,600 V AC
Contact Configuration
2 NO
Contact Rating
20 A
Line Rated Current
20 A
Number of Phases
1
Number of Poles
2
Size
2P
TC Connection
Binder head;Quick connect terminals
Type
Definite Purpose Contactor
Voltage
600 V

Manufacturer Information

Brand
Square D
Sub Brand
DP

General Product Info

12-Digit UPC
785901397182
GTIN
00785901397182

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
CSA,UL Recognized
Country of Origin
USA
