LEV Series IEC Pin & Sleeve Receptacle

Manufacturer: Leviton Manufacturing | Catalog # 560R5WLEV | Electrozad South Part # 422014
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

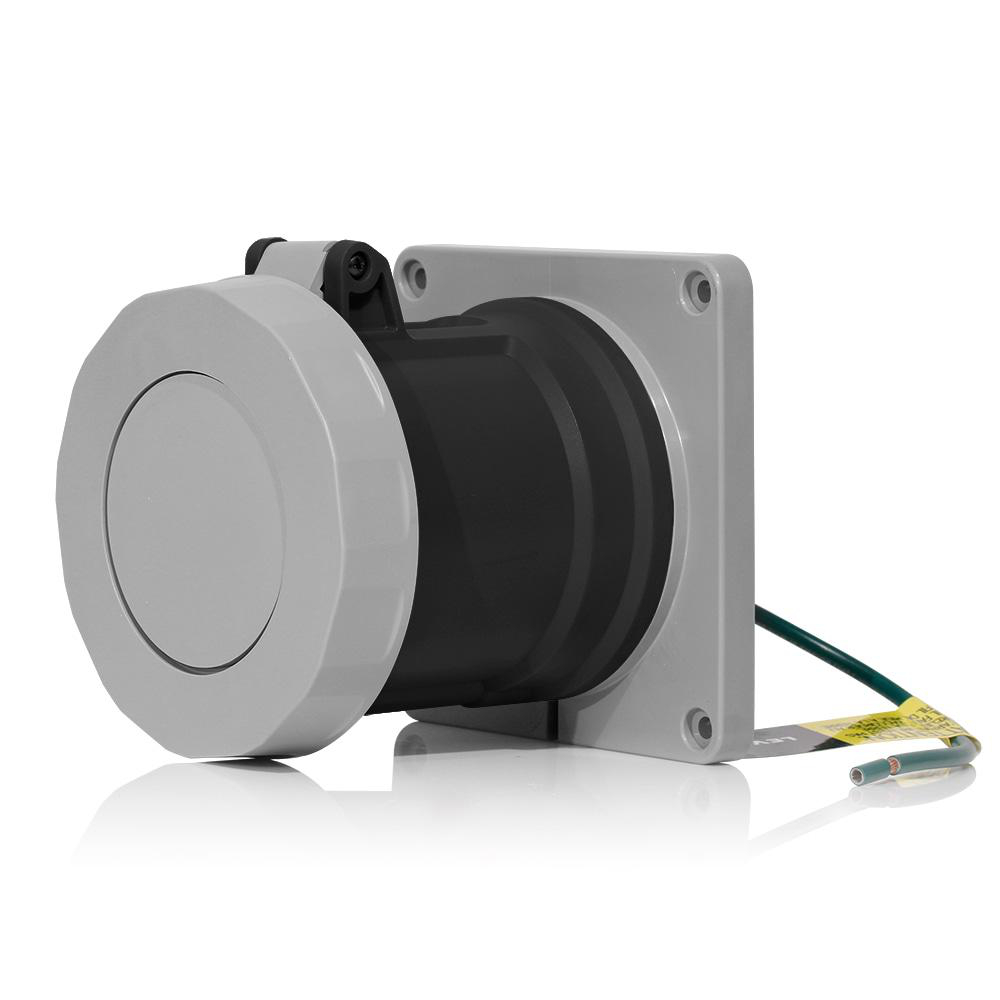

60 Amp, 347/600 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Receptacle, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Black

Technical Information

Amperage
60 A
Device Type
Receptacle
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Horsepower
20 hp
Max Voltage
600 V
Number of Poles
4
Number of Wires
5
Temperature Rise
30 degrees C
Torque
50 lb-in

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477901557
Color
Black
GTIN
00078477901557
Housing Material
Impact Modified Nylon

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
Mexico
