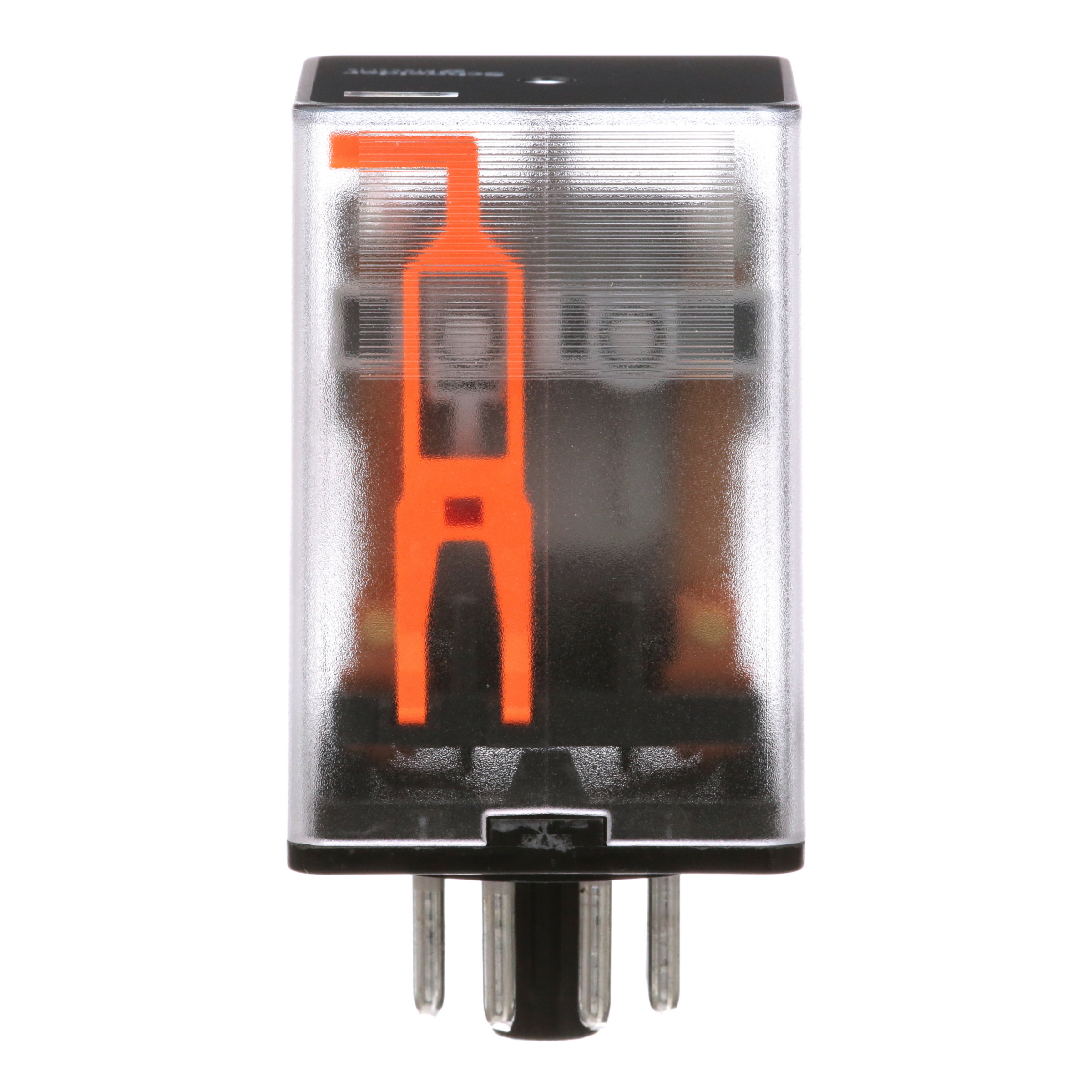

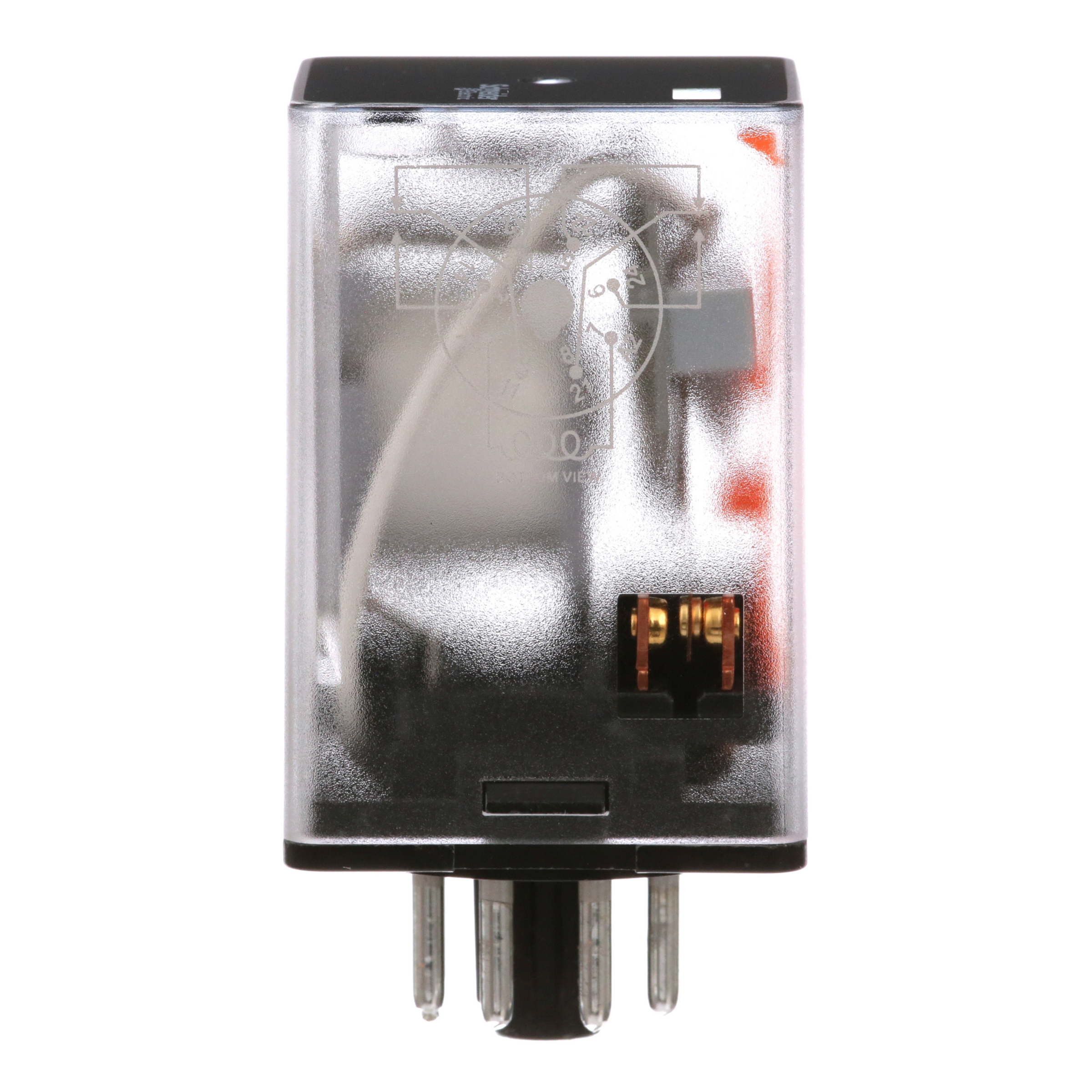

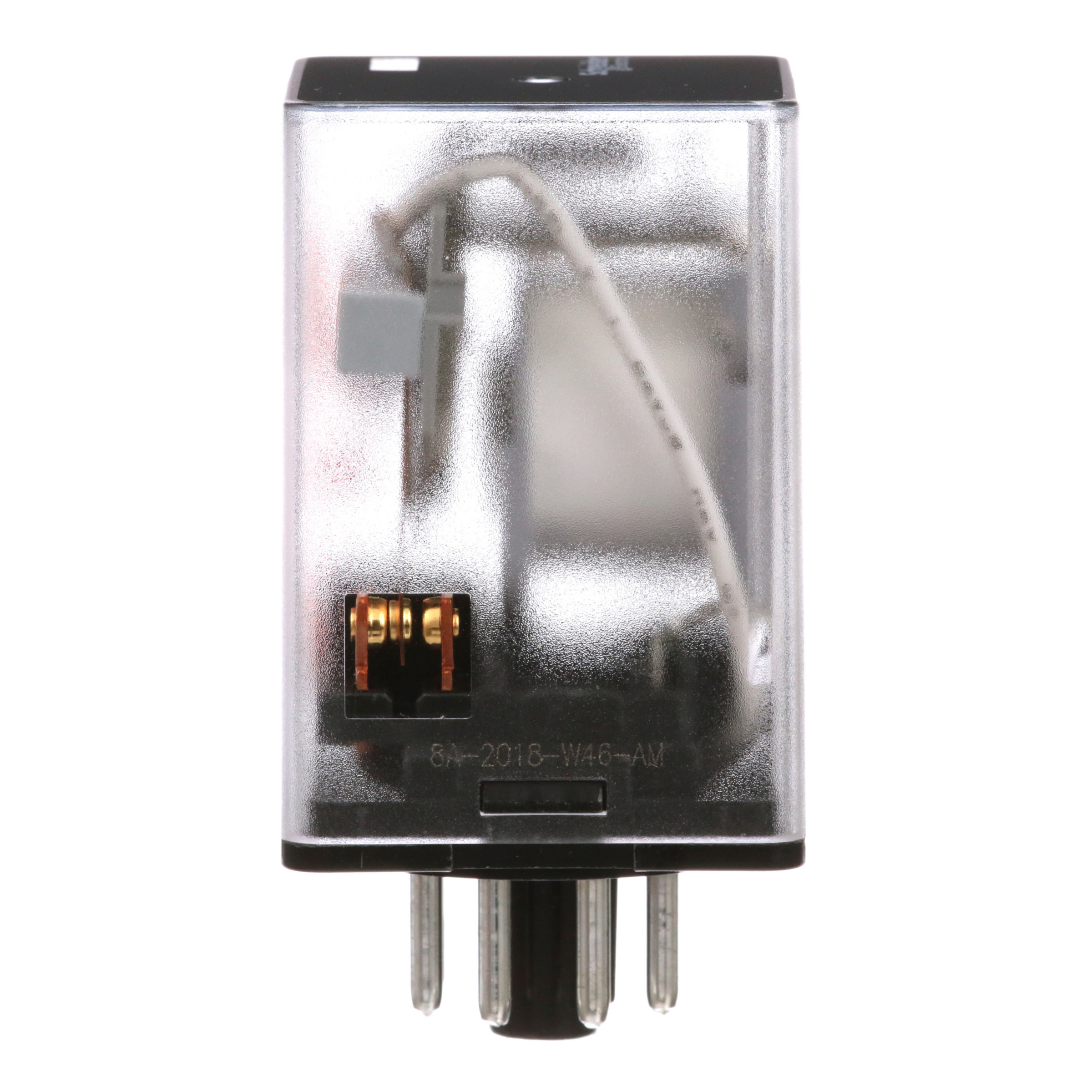

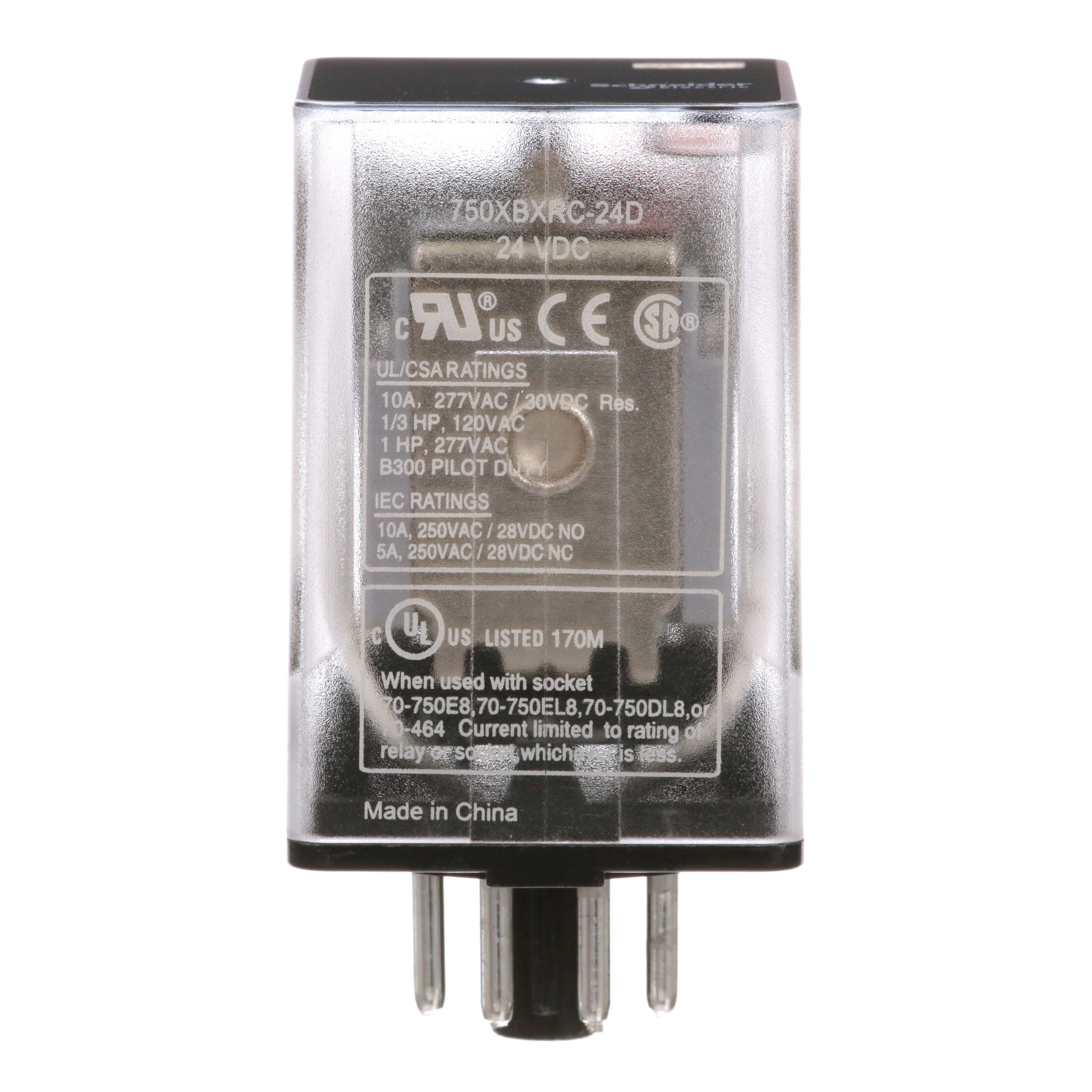

The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 10A at 277VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , make relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
