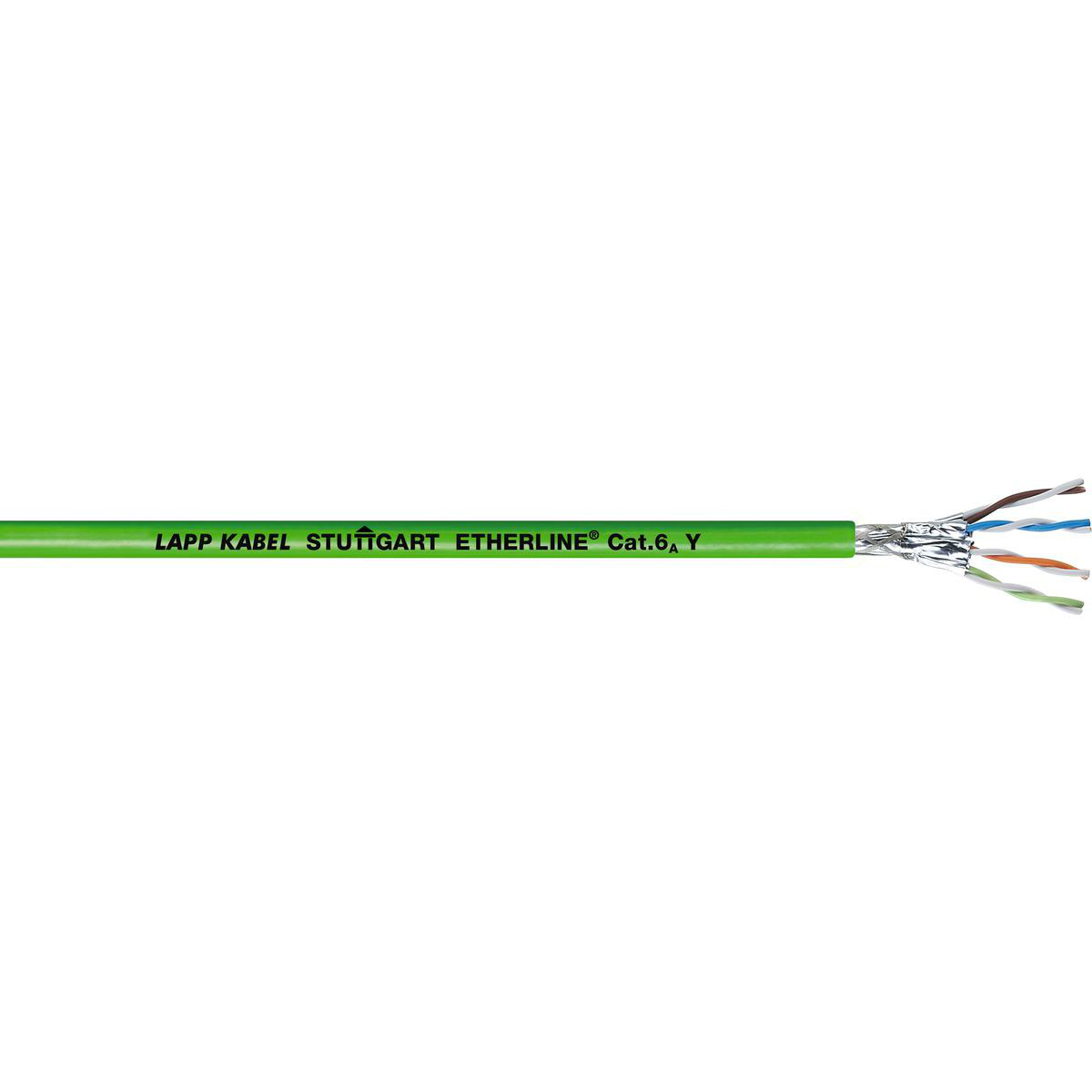

Cable Ethernet industrial PVC jacket 22-AWG/4pr green

Manufacturer: Olflex Wire Cables | Catalog # 2170464 | Electrozad South Part # 421046
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
ETHERLINE® CAT.6A and CAT.7 cables are suitable for stationary applications. The 4 pairs are individually wrapped in metal foil and the overall braid provides additional protection against EMI. Three different jacket options are available.

Technical Information

Applications
For Stationary Applications in Harsh Industrial Environments, Dry or Damp Rooms
Bend Radius
3.43 in
Conductor Material
Bare Copper
Impedance
100 +/- 15
Insulation Material
Polyethylene
Number of Conductors
4 Pair
Operating Temperature
-40 degrees C
Shield Type
Metal Foil
Temperature Rating
-40 to 80 degrees C
Voltage
48 V

Manufacturer Information

Brand
Lapp
Sub Brand
Etherline®

General Product Info

Jacket Color
Green
Jacket Material
PVC, Polyurethane
Weight
98 kg/km

Dimensions

Outside Diameter
0.343 in
