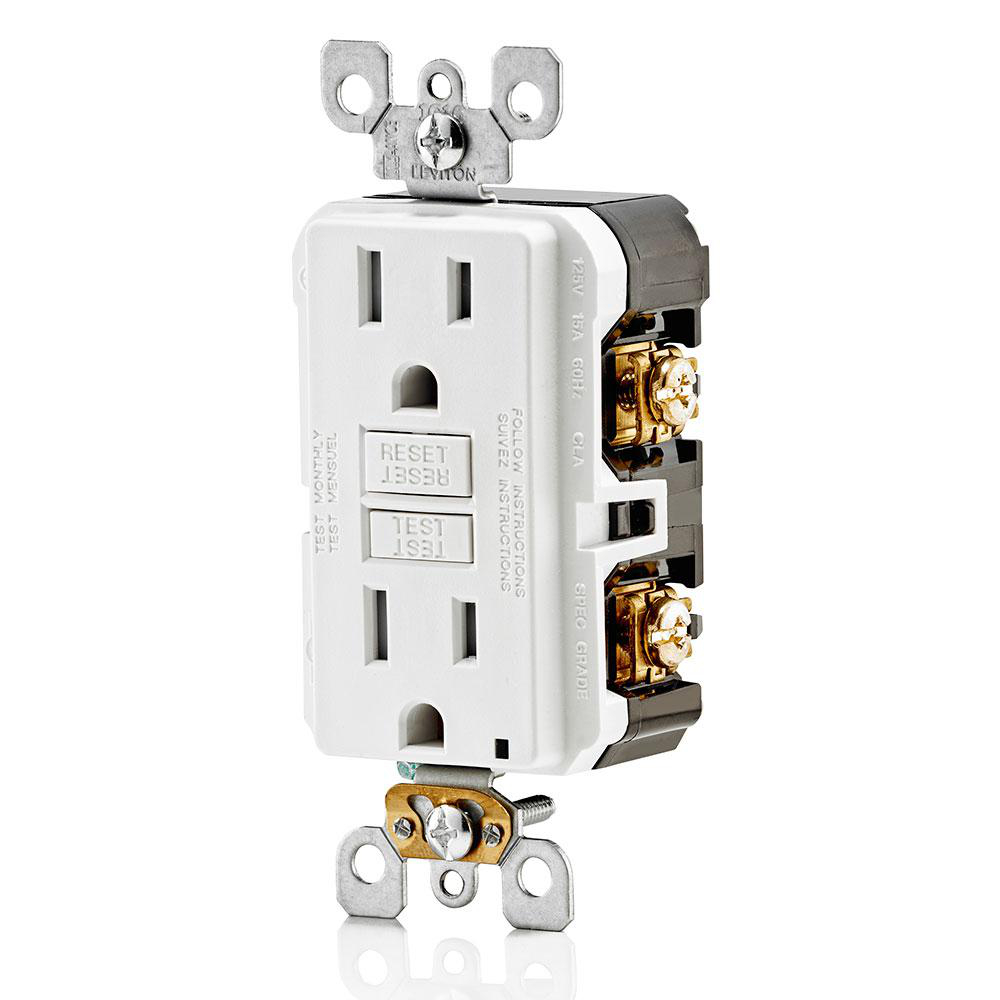

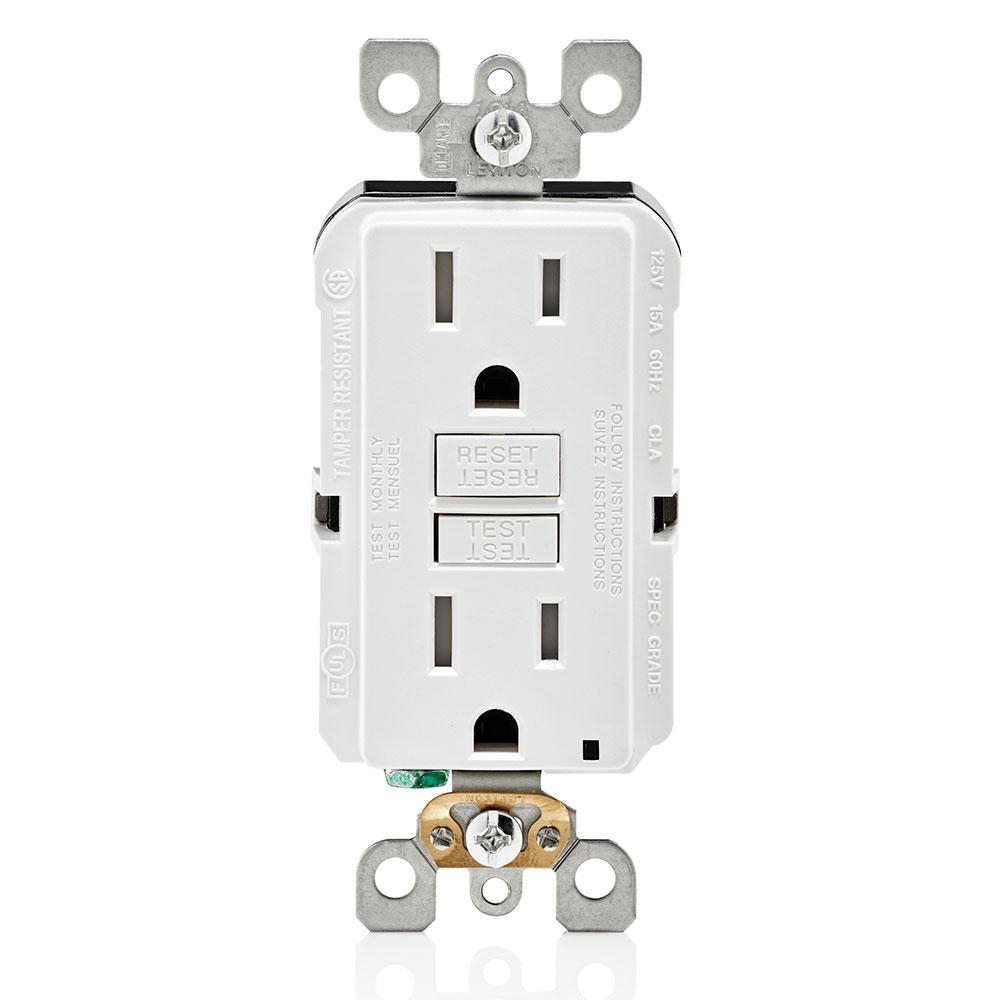

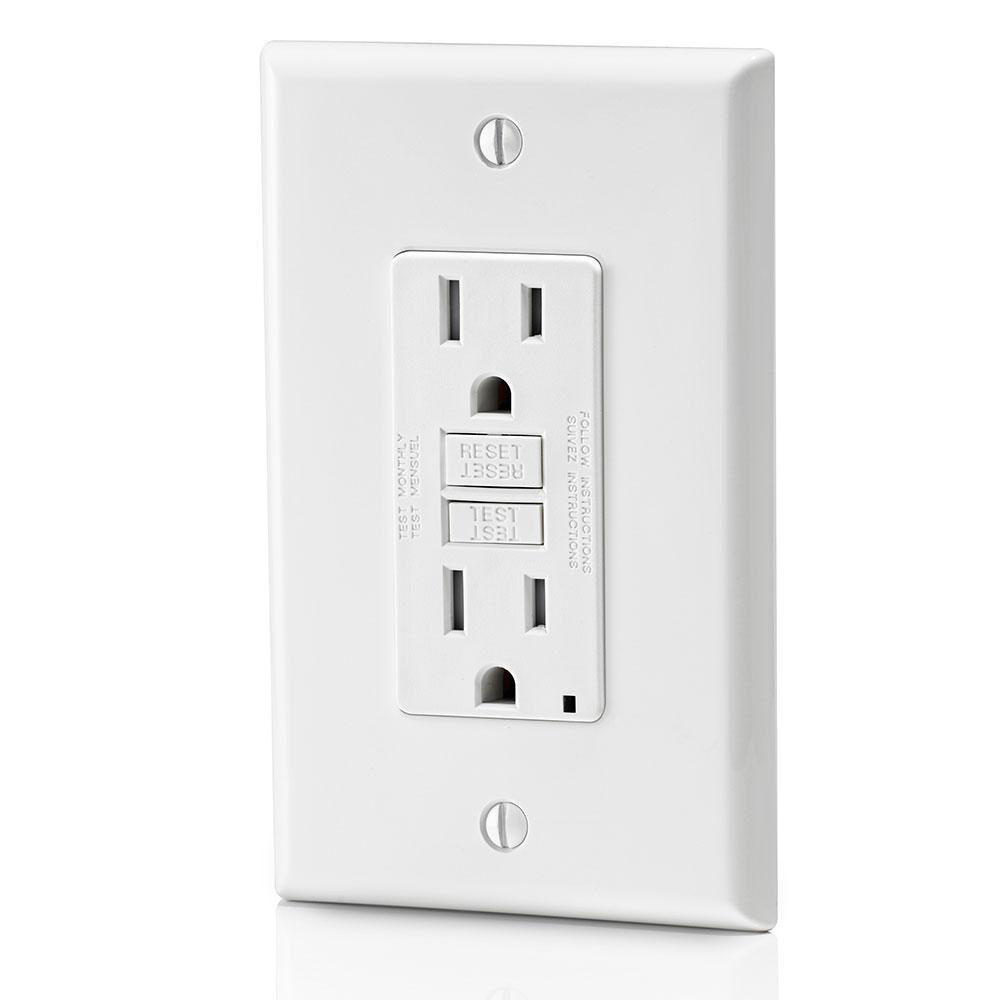

15 Amp SmartlockPro® GFCI Receptacle/Outlet, Tamper-Resistant

Manufacturer: Leviton Manufacturing | Catalog # GFTR1-MW | Electrozad South Part # 419122
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, midway sized nylon wallplate/faceplate, screws and self-grounding clip included - White

Technical Information

Amperage
15 A
Applications
Residential/Commercial
Body Material
Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94
Grade
Residential/Commercial Specification,Residential/Commercial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1 hp
NEMA
5-15R,5-15R
Number of Poles
2,2
Number of Wires
3
Operating Temperature
-35 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA,CSA,UL,UL
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Standard Duplex,Standard Duplex
Voltage
120 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT GFI RECEPTACLES

General Product Info

12-Digit UPC
078477764961
Color
White,White
GTIN
00078477764961

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
