Plug ind grade straight nylon 3P4W 250V 50A blk | Electrozad South
Product image for Plug ind grade straight nylon 3P4W 250V 50A blk
Image thumbnail 0
Image thumbnail 1
To:
CC:

Plug ind grade straight nylon 3P4W 250V 50A blk

Manufacturer: Leviton Manufacturing | Catalog # 9462-P | Electrozad South Part # 41682
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Industrial grade straight blade plug made of super tough nylon. Solid brass blades/contacts and steel, zinc plated assembly screws. Leviton's heavy duty industrial power plugs offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty.

Technical Information

Amperage
60 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
10 - 4 AWG
Device Type
Straight Blade Plug
Dielectric
2000 V
Grounding
Grounding
Horsepower
3-1/2 hp
Material
Super Tough Nylon (Body)
Mounting Type
Cable

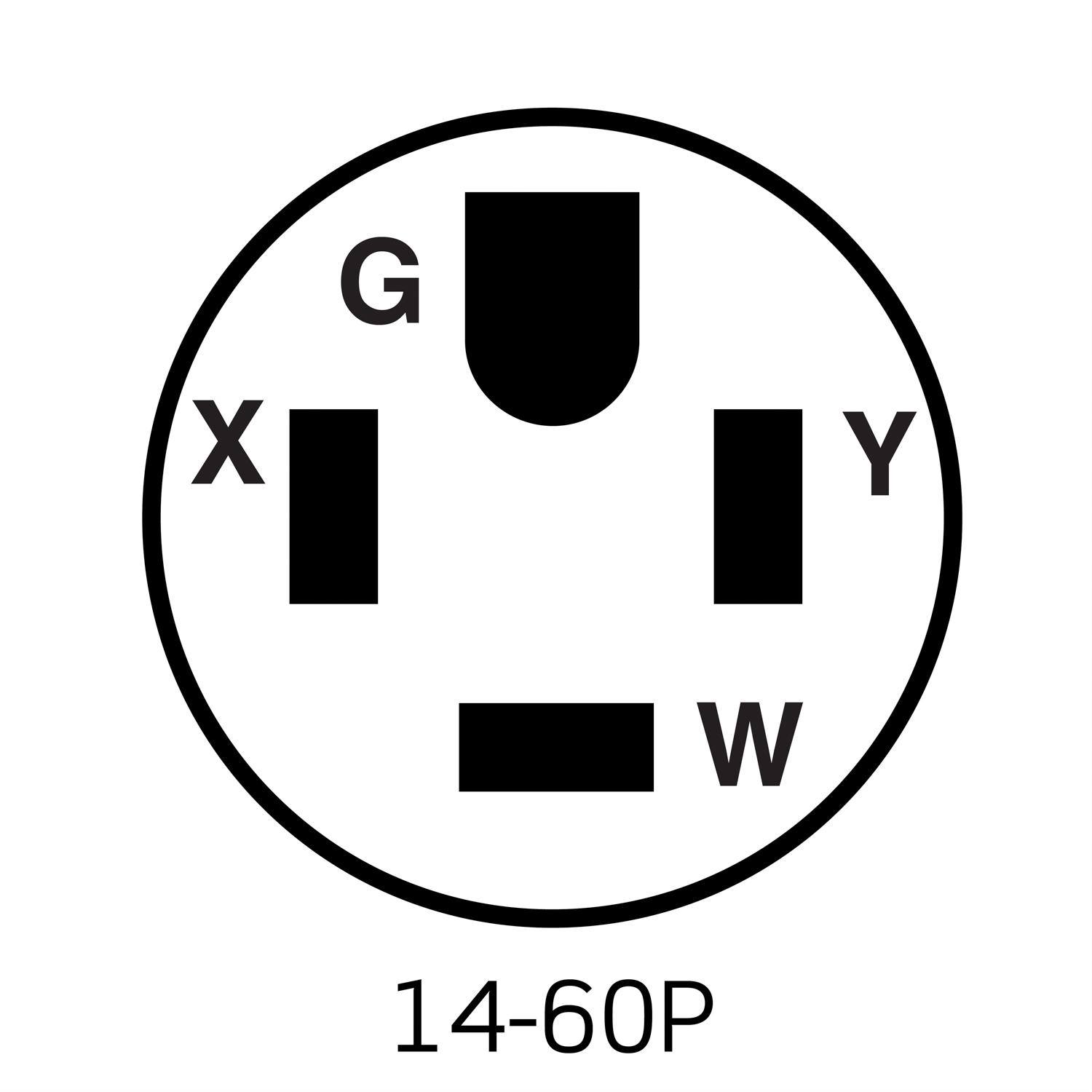

NEMA
14-60P
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
4.37 H x 2.76 W x 1.89 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Torque
16 lb-in
Type
Angled
Voltage
125/250 V
Wire Count
4
Wire Size
10 - 4 AWG 0.625 - 1.375 in

Manufacturer Information

Brand
Leviton
Sub Brand
Straight Blade Plugs and Conn

General Product Info

12-Digit UPC
078477809976
Color
Black,Orange,White
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477809976

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
