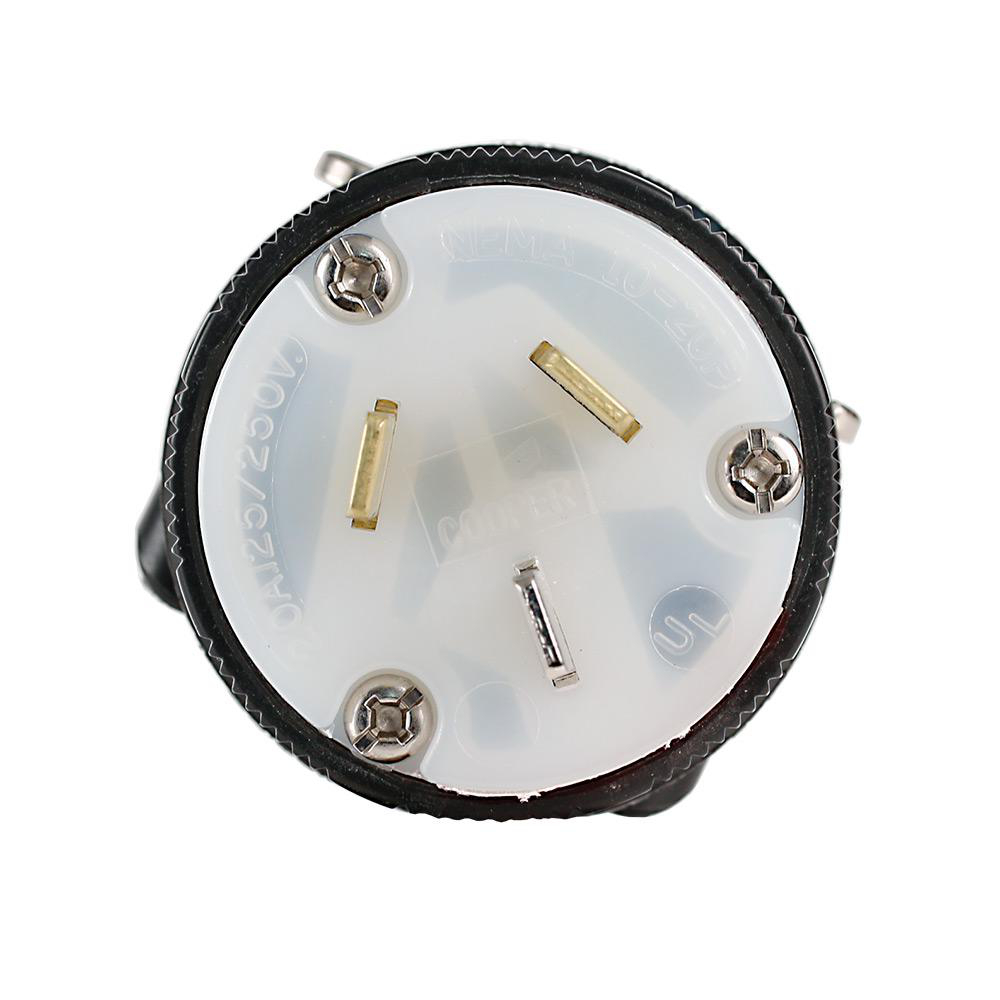

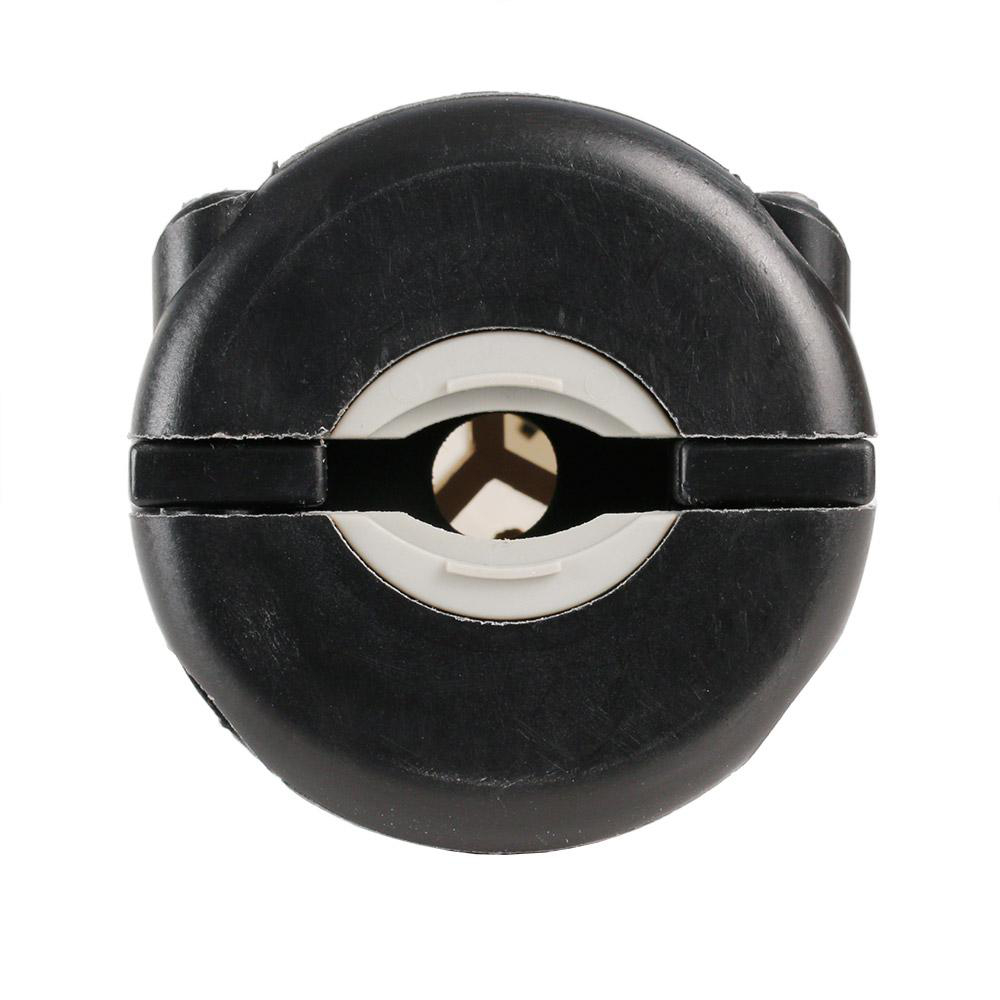

Plug straight 3P 3W 125/250V 20AMP grey

Manufacturer: Leviton Manufacturing | Catalog # 9151-N | Electrozad South Part # 416227
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet
Leviton offers industrial, commercial and residential plugs and connectors for unlimited application settings. Plugs and connectors are provided in a range of ratings from 15Amps to 60Amps; the product line includes straight-blade and locking devices in all NEMA configurations, as well as locking devices in non-NEMA configurations. Versions include hospital grade, isolated ground, wetguard, dustguard, python, power plugs, corrosion resistant plugs and connectors, power-interrupting devices, midget devices and much more.

Technical Information

Amperage
20 A
Applications
For Industrial Use
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Cord Size
1/4 - 0.685 in
Dielectric
2000 V
Dielectric Strength
2000 V
Flamability Class
Rated V-2 Per UL94
Grounding
No
Horsepower
1 hp
Material
Super Tough Nylon (Body), Zinc Plated Steel Screw
Mounting Type
Cable
NEMA

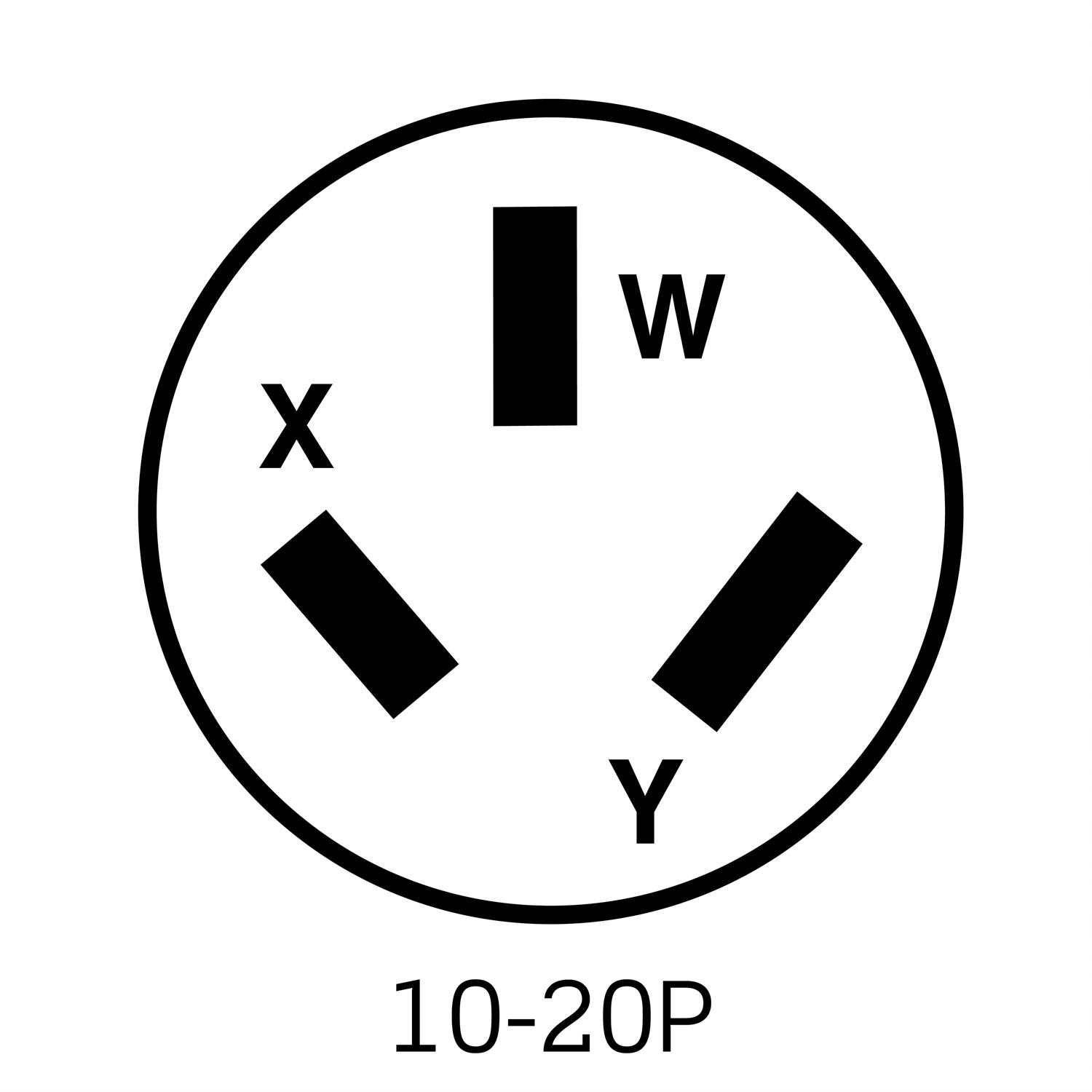

WD-1, WD-6
Number of Poles
3
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Standard
ANSI C-73
Temperature Rise
150 %
Torque
10 lb-in
Type
Angled, Hospital Grade
Voltage
125/250 V
Wire Count
3
Wire Size
18 - 10 AWG 0.25 - 0.685 in

Manufacturer Information

Brand
Leviton
Sub Brand
STRAIGHT BLADE PLUGS AND CONNECTORS

General Product Info

12-Digit UPC
078477808955
Color
Light Gray
Environmental Conditions
-40 to 60 °C
GTIN
00078477808955

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
